Cutting & Fold-bend Machine

Hydraulic Plate Bending Machine (WC67K-125T/3200)

Maanshan Middle Asia Machine Tools Manufacture Co., Ltd.
  • Condition:New
  • Certification:ISO 9001:2008, CE
  • Automation:Automatic
  • Type:Press Brake
  • Worktable Length:3200mm
  • Controller System:Estun E21

Base Info

  • Model NO.:WC67K-125T,3200
  • Main Motor:Germany Siemens
  • Application:Machinery & Hardware
  • Type for Fold-Bending Machine:CNC Fold-Bend Machine

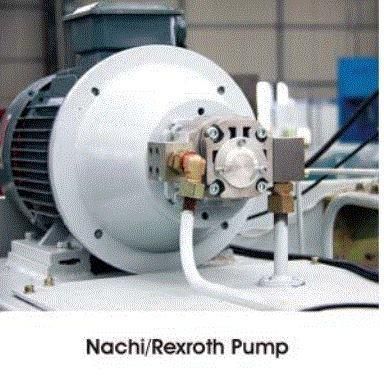

  • Pump:Sunny
  • Seal Ring:Nok
  • Pipe Connector:Emb
  • Footswitch:Karcon
  • Ball Screw:Hiwin
  • Transport Package:Plastic Cover
  • Specification:CE STANDARD
  • Trademark:ZYMT
  • Origin:China
  • HS Code:8462219000
  • Production Capacity:3000 Sets,Year

Description

No.Parts NameBrandBrand Location1Main motorSiemensGermany2Backgauge motorDetongShanghai China3Ram motorKongteNanjing China4ElectricsSchneiderFrance5Oil CylinderYuhuaMaanshan China6Seal ringNokJapan7Hydraulic valveRexrothGermany8PumpHangfaShanghai China9ControllerE21Nanjing China10MouldGuolingMaanshan China11Pipe connectorEMBGermany12FootswitchKarconSouth Korea13Ball screwHiwinTaiwan14Controller with moveable armYES15Front and back protection fenceYES16Backgauge with ball screwYES17Backgauge travel500MM18Emergency buttonYES
Hydraulic Plate Bending Machine (WC67K-125T/3200)
Hydraulic Plate Bending Machine (WC67K-125T/3200)
Other standard equipments:
Segmented upper punch die 1set
Lower die in one piece
Stop fingers 3

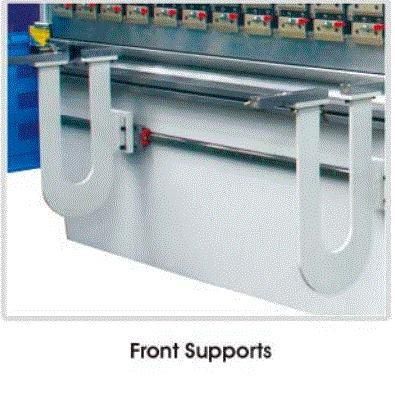

Front supporting arms 2
Emergency stop button;
Back, left and right safty fence
Foundation bolts 1set
Manuals and diagram 1book

Parameters:TypeNominal Force
(KN)Worktable Length
(mm)Poles Distance
(mm)Throat Depth
(mm)Slider Travel
(times/min)Max Open
(mm)Power
(kw)40T/2200400220018502301003205.540T/2500400250018502301003205.550T/2500500250018502301003205.563T/2500630250019002501003205.563T/3200630320025602501003205.580T/2500800250019903001003207.580T/3200800320025603201003507.580T/4000800400032003201003507.5100T/25001000250019003201203507.5100T/32001000320026003201504007.5100T/40001000400032003201504007.5125T/320012503200260032015040011125T/400012504000320032015040011160T/320016003200258032020046011160T/400016004000290032020046011160T/500016005000390032020046011160T/600016006000490032020046011200T/320020003200248032020046011200T/400020004000290032020046011200T/500020005000390032020046011200T/600020006000490032020046011250T/320025003200245040025059018.5250T/400025004000290040025059018.5250T/500025005000390040025059018.5250T/600025006000490040025059018.5300T/320030003200245040025059022300T/400030004000290040025059022300T/500030005000390040025059022300T/600030006000490040025059022400T/320040003200240040025059030400T/400040004000290040025059030400T/500040005000390040025059030400T/600040006000490040025059030500T/500050005000390040025059045500T/600050006000490040032059045600T/500060005000290040032059055600T/600060006000490040032059055
Hydraulic Plate Bending Machine (WC67K-125T/3200)

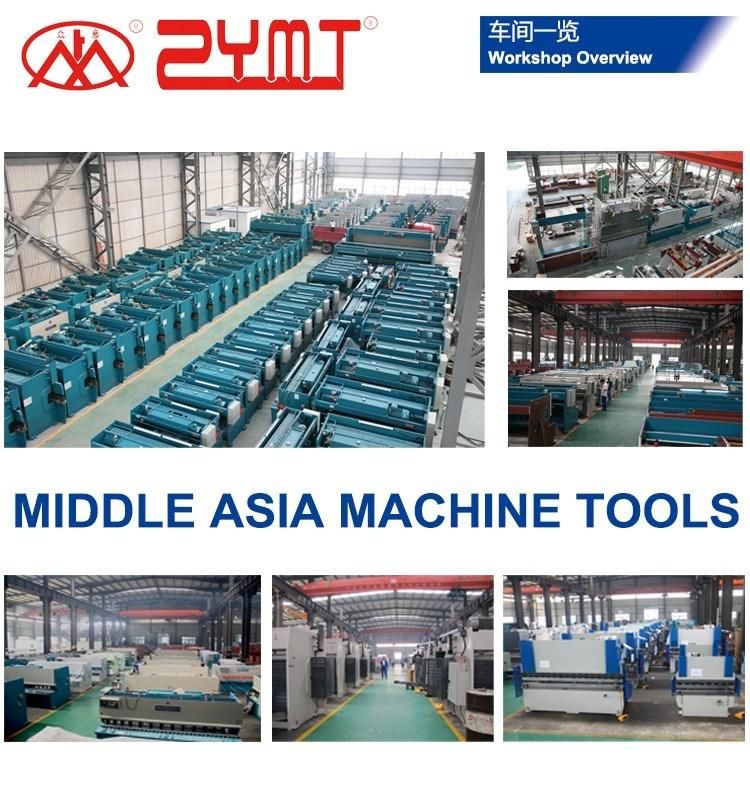

Company Introduction:
1.Maanshan Middle Asia Machine Tools Manufacture Co.,Ltd founded in 2001.
2.Total number of emploee: 500
3.All kinds of sophisticated equipment more than 100 sets.
4.Production plant area:60,000.
5.Whole factory is controlled by ERP-Enterprise Resource Plan.
6.CE/SGS/ISO9001 certification.

We are producing below ranges of machines:
1.NC/CNC Press Brake
2.NC/CNC Shearing Machine
3,Rolling Machine
4.Iron Worker
5.Power Press
6.Hydraulic Press

Paching&Delivery:
With more than 10 years exporting experience, we are so skilled for loading containers and packing the machines in container for safety. Each machine use min. 6mm dimeter steel rope to fix the four angles with the container, to avoid the machinery equipment move in the container.

Our Services:
1.24 hours telephone line is available for any question.
2.Experienced service technician team is available.
3.Support in hard work solution.

If you have any demand, please contact me directly, or browse through our web site: leolivia.en.made-in-china.com
