• Model NO.：QC11K-12×2500
• Components：Siemens, Atos , Rexroth, French Schnadt
• Control Axis：Cutting Angle and Gap Control, Gauge Back +Front
• Warranty：1 Year
• Main Motor：11.5kw
• Max Cut Width：2500mm
• Max Cut Thickness：12mm Mild Steel
• Transport Package：Base Framed by Channel Steel and Plastic Bag
• Specification：L*W*H=3400*1920*2350mm
• Trademark：ZDMT
• Origin：China(Mainland)
• HS Code：84623990
• Production Capacity：100 Sets Per Month

Basic Info.

Model NO. QC11K-12×2500 Components Siemens/ Atos / Rexroth/ French Schnadt Control Axis Cutting Angle and Gap Control/ Gauge Back +Front Warranty 1 Year Main Motor 11.5kw Max Cut Width 2500mm Max Cut Thickness 12mm Mild Steel Transport Package Base Framed by Channel Steel and Plastic Bag Specification L*W*H=3400*1920*2350mm Trademark ZDMT Origin China(Mainland) HS Code 84623990 Production Capacity 100 Sets Per Month

Product Description

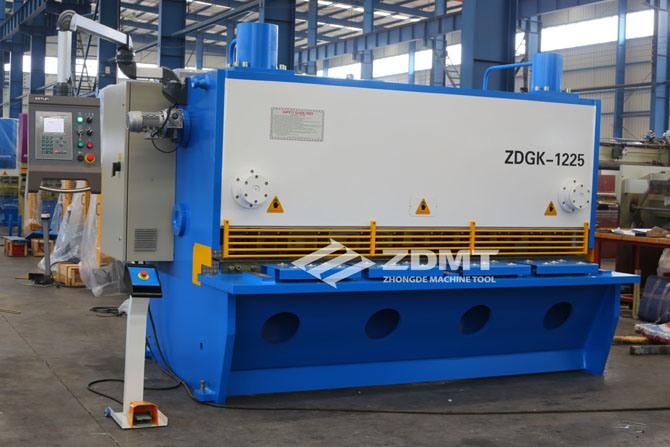

QC11K-12×2500 Guillotine shear with CNC Delem DAC360

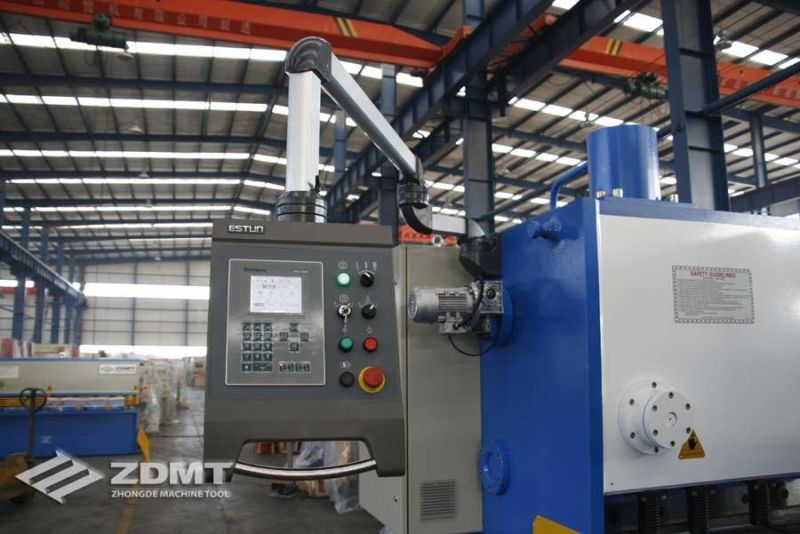

CNC controller features:
1. Panel based housing
2. Bright LCD Screen
3. Back/ front control
4. Retract function
5. Cutting angle and Gap control
6. Stroke length limitation
7. Manual movement of all  axis
8. Force control
9. Sheet thickness measurement
10. RTS Return to Sender function
11. Second servo axis(DAC-362s)
12. Sheet support
13. Chinese/ English



Steel welded structure with stress-free

Three guide trolleys enable accurate movement and fine shearing results.

Hydraulically driven blade holder, retracted by cylinder accumulator.

Adjustable rake gauge travel can be manually adjusted and knob fined, digital desplayed.

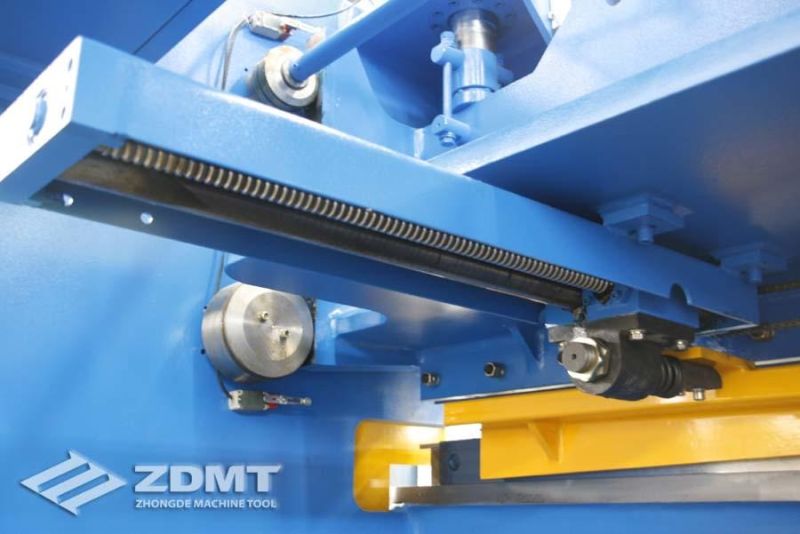

Swing away back guage fuction for cutting longer sheets.

Indicator -based adjustment of blades clearance is easy, convenient and swift.

4 cutting edges blade

Full or shorter stroke of blade holer is adjustable
