Hydraulic Bending Machine (2000t*14000) /Hydraulic Pipe Bender with Ce and ISO9001 Certification/Hydraulic Press Brake/CNC Hydraulic Press Brake Machine

Maanshan Middle Asia Machine Tools Manufacture Co., Ltd.
  • Condition：New
  • Certification：ISO 9001:2008, CE
  • Automation：Automatic
  • Type：Press Brake
  • Size：3500*1580*2400
  • Application：Machinery & Hardware

Base Info

  • Model NO.：zyb-2000t*14000
  • Type for Fold-Bending Machine：CNC Fold-Bend Machine
  • Main Motor：Siemens, Germany
  • Backgauge Motor：Detong, Shanghai China
  • RAM Motor：Kongte, Nanjing China
  • Electrics：Schneider, France
  • Oil Cylinder：Yuhua, Maanshan China
  • Seal Ring：Nok, Japan
  • Hydraulic Valve：Rexroth, Germany
  • Transport Package：Plastic Cover
  • Specification：CE
  • Trademark：ZYMT
  • Origin：China
  • HS Code：8462299000
  • Production Capacity：3000sets,Year

Description

Model
(ZYB-)1200t/
60001200t/
70001600t/
60001600t/
70001600t/
80001600t/
100002000t/
80002000t/
100002000t/
120002000t/
140003000t/
80003000t/
100003000t/
120003000t/
14000Nominal force(KN)1200012000160016001600160020002000200020003000300030003000Bending length(mm)600070006000700080001000080001000012000140008000100001200014000Vertical distance(mm)4900590049005900690080006200800090501100062008000905011000Throat depth(mm)600600600600600600600600600600600600600600Stroke (mm)400400400400400400400400400400400400400400Max. opening(mm)800800800800800800800800800800800800800800Main power(KN)2*372*372*552*552*552*552*552*552*552*552*552*552*552*55Axes3+1(Y1,Y2,X,V)CompensationMotorized compensationX-travel(mm)1000X-speed200mm/sOverall length(mm)650085006500720085001050085001050012500145008500105001250014500Overall width(mm)31003100330033003300330035003500350035003700370037003700Overall height(mm)58507150650070008000800080008300830083008600860086008600Approximate weight(ton)130160150170190210260290320350////

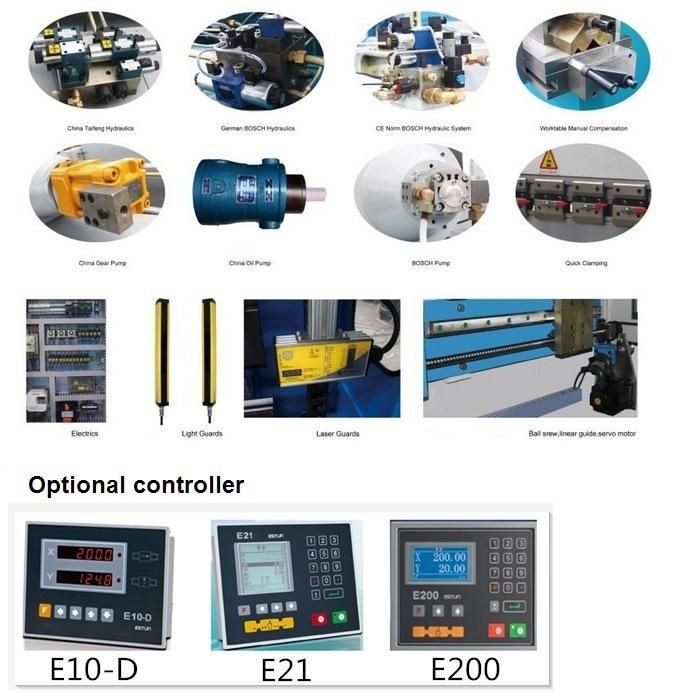

Main components of ZYB model:
(Standard)
1. Control System: DELEM DA52S
2. Servo motor and drive: Estun China
3. Hydraulic System: HOERBGER /
BOSCH Germany
4. Ball bearing lead screw:
Taiwan HIWIN
5. Straight-line guide:
Taiwan HIWIN
6. Connector: Germany EMB
7. Seal ring: Germany FIETZ or
Japanese VALQUA
8. Raster Ruler: Heidemhain Germany
9. Main electrical elements:
TE/OMROM/SIEMENS
10. Standard axes: Y 1 , Y 2 , X and V( V
for crowing table)
Hydraulic Bending Machine (2000t*14000) /Hydraulic Pipe Bender with Ce and ISO9001 Certification/Hydraulic Press Brake/CNC Hydraulic Press Brake Machine
Optional:
1. DELEM DA56
2. DELEM DA66T
3. R/Z1/Z2-axis
4. Laser beam
5. Light beam

Our service

Hydraulic Bending Machine (2000t*14000) /Hydraulic Pipe Bender with Ce and ISO9001 Certification/Hydraulic Press Brake/CNC Hydraulic Press Brake Machine

1.24 hours telephone line is available for any question.

2.Experienced service technician team is available.

3.Support in hard work solution.
