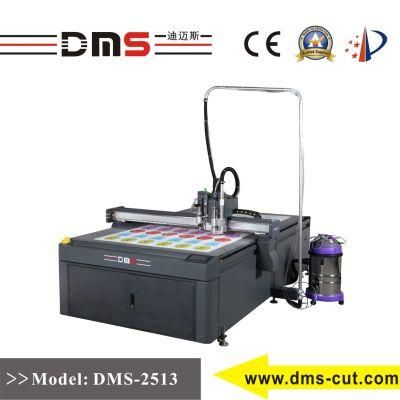

DMS-2513 High Speed Acrylic/Foam Board/PVC/Vinyl Cutting Machine

DMAIS Electrical and Mechanical Equipment Co., Ltd.
  • Condition：New
  • Certification：CE
  • Automation：Automatic
  • Suitable for：Plastic, Rubber, Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
  • Moving Speed：800-1500mm,S
  • Normal Power：7.5-11kw

Base Info

  • Model NO.：DMS-2513
  • Cutting Speed：200-1200mm,S
  • Gross Weight：1150kg
  • Transport Package：Plywood Case
  • Specification：Working Size: 1300*2500mm
  • Trademark：DMS
  • Origin：Shunde Foshan
  • HS Code：84798990
  • Production Capacity：1000 Sets,Year

Description

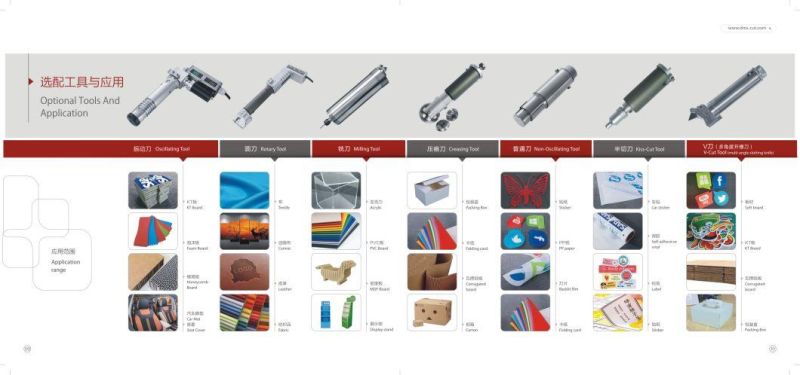

Parameter/ModelDMS-2513Multi-functionTools can be easily changed, with oscillating, non-oscillating tool, rotary, milling, kiss-cut, and creasing tool etc.. Positioning with cursor and optional CCD industrial camera.Safety deviceUsing infrared sensors, respondive, safeMoving speed800-1500mm/sCutting speed200-1200mm/s(according to different cutting materials)Cutting thickness10mm(More than 40mm can be customized)Material FixedVaccum SystemCutting tolerance±0.05mmServo resolution±0.01mmTransmission interfaceEthernetNetwork transmission distance≤350mBuffer capacity2GBTransmission systemImport (Digital servo motor,Linear guide,Synchronous belt,Screw,Gear)Normal power7.5-11KWVoltage380V± 10%Working Range2500×1300mmMax feeding width1300mmProduct size3521×2186×1280mmPacking Size3670×2340×1500mmGross Weight1050KGSDMS-2513 High Speed Acrylic/Foam Board/PVC/Vinyl Cutting Machine
