Cutting & Fold-bend Machine

Home > Product > Other Cutting Machines

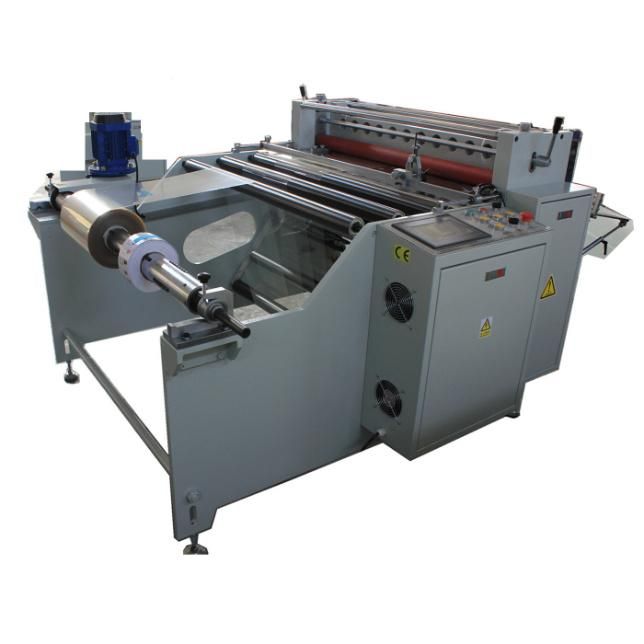

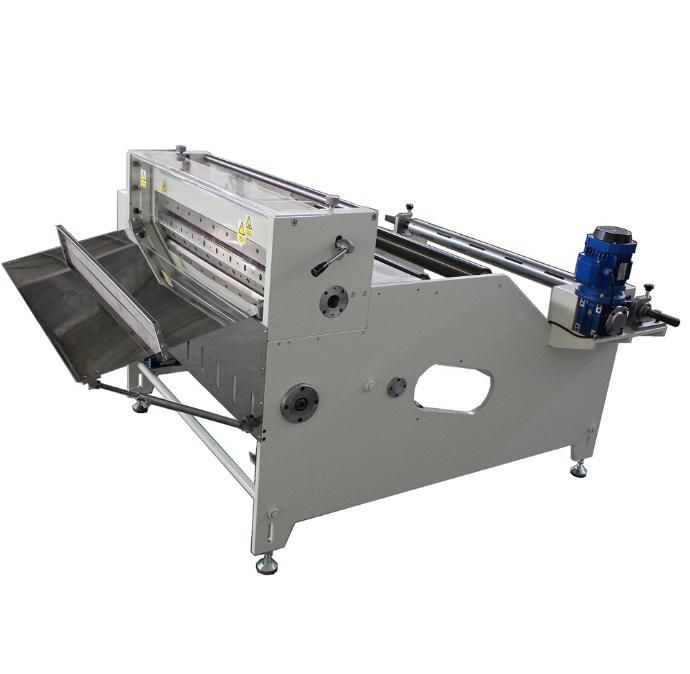

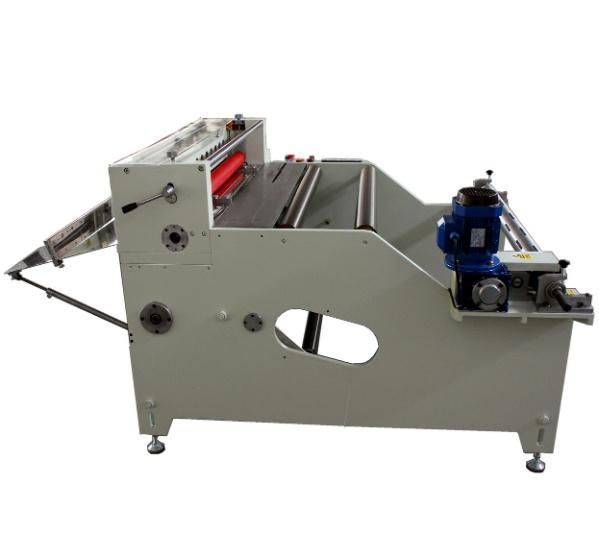

Release Paper Cutting Machine for Foam Tape (PLC control)

Kunshan Dapeng Precision Machinery Co., Ltd.
  • Condition：New
  • Certification：CE
  • Automation：Automatic
  • Width Size：360,500,600,800mm etc
  • Voltage：110V,220V,380V
  • Hz：50Hz,60Hz

Base Info

  • Model NO.：DP-360
  • Phase：Single or Three Phase
  • Type：Roll and Sheet Cutting Machine
  • Type for Cutting Machine：Release Paper Cutting Machine for Foam Tape (PLC C
  • Type for Fold-Bending Machine：Sheet Cutter
  • Transport Package：Wodden Case
  • Specification：SGS
  • Trademark：DP
  • Origin：Kunshan, Jiangsu, China.
  • HS Code：8441100000
  • Production Capacity：50 Sets,Month

Description

Basic Info.

Model NO. DP-360 Phase Single or Three Phase Type Roll and Sheet Cutting Machine Type for Cutting Machine Release Paper Cutting Machine for Foam Tape (PLC C Type for Fold-Bending Machine Sheet Cutter Transport Package Wodden Case Specification SGS Trademark DP Origin Kunshan, Jiangsu, China. HS Code 8441100000 Production Capacity 50 Sets/Month

Product Description

Sheet cutter for insulating paper and aluminum foil

Function &Characteristics:

This machine
1, imported PLC touch screen operation control,
2, easy operation and convenient,
3, high speed of cutting, and high precise

4, The machine apply to PVC adhesive sheet, insulating paper, Mylar sheet, foam, industry adhesive tape, electronic adhesive tape and all kinds of electronic material

5, sizing, through and kiss cutting.


Application of sheet cutter:

PVC film,
Insulation sheet,
Mylar, foam,
Industrial tape,
Electronic tape
And various inch setting, entirely broken
And partially broken electronic materials.


Sheet cutter for insulating paper and aluminum foil
Release Paper Cutting Machine for Foam Tape (PLC control)
Release Paper Cutting Machine for Foam Tape (PLC control)
Release Paper Cutting Machine for Foam Tape (PLC control)

Model: DP-500
Max Feeding Width ( mm ): 500
Main Engineer Power ( w ): 400
Speed ( t/m ): 110
Size ( mm ): 1200*900*1280
Weight ( kg ): 400
Precision ( mm ): ± 0.10
Power: 220V 50Hz
ModelMax Feeding Width(mm)Main Power(W)Cutting Speed(t/m)  Size(mm)Weight(kg) Precision(mm) Voltage(V)
  DP-360  360mm  150W  110m/t  900mm*800mm*1400mm  300kgs  +/0.1mm  380V 50 HZ
  DP-500  500mm  400W  110m/t  1200mm*900mm*1280mm  400kgs  +/-0.1mm  220V 50HZ
  DP-600  600mm  400W  110m/t  1530mm*1220mm*1270mm  350kgs  +/-0.1mm  380V 50HZ
