• Model NO.：QC11K 13X3200
• Warranty：2 Years
• Model：QC11K 13X3200
• Max Cutting Thickness：13mm
• Max Cutting Length：3200mm
• System：E21s
• Cutting Angle：0.5-2.5
• Backgauge Distance：600mm
• Throat Depth：130mm
• Main Motor Power：18.5kw
• Weight：11800kg
• Hydraulic System：Bosch-Rexroth
• Main Motor：Siemens
• Main Electrical Components：Schneider
• Transport Package：20gp
• Specification：3900× 2000× 2200mm
• Trademark：LZK
• Origin：China
• HS Code：8462391000
• Production Capacity：100 Set,Month

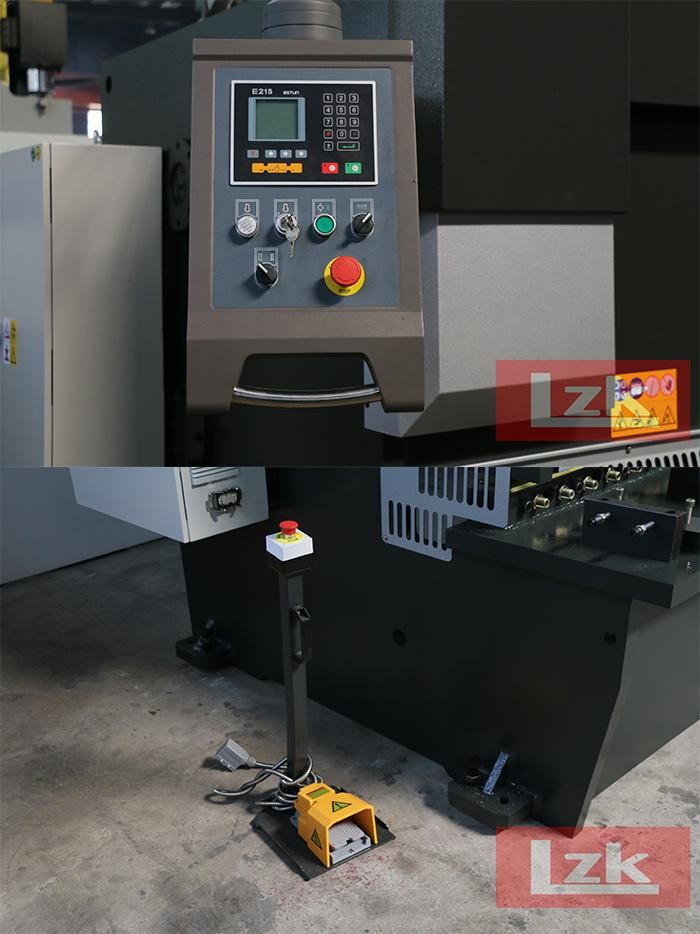

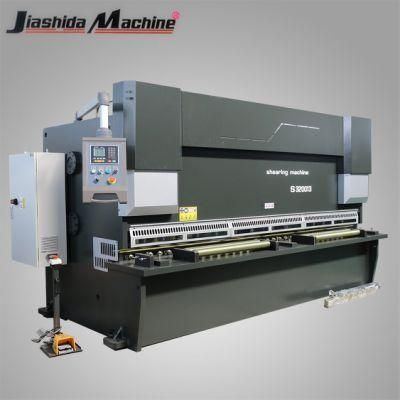

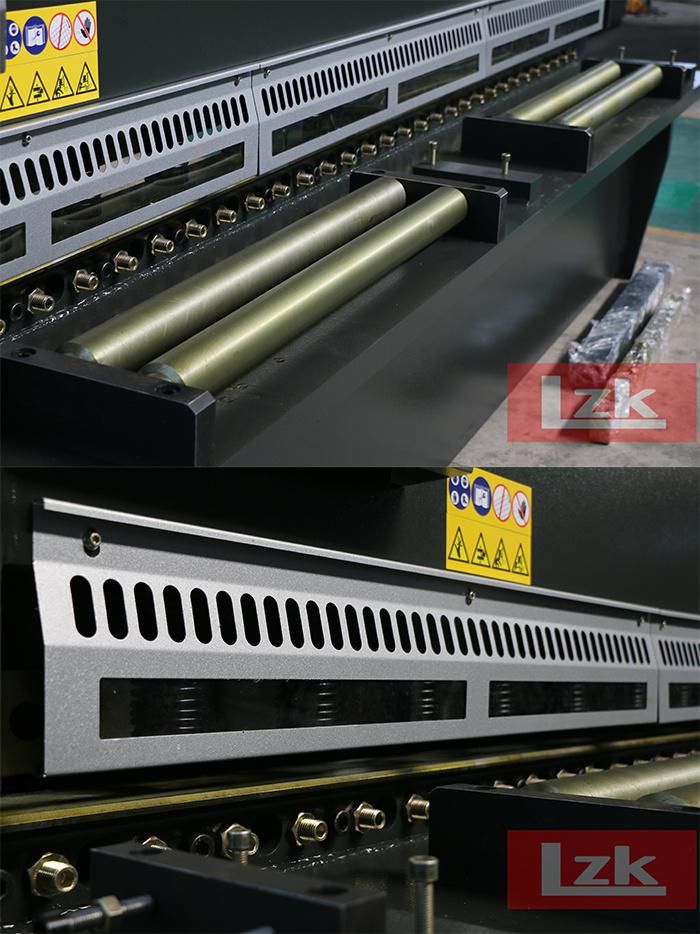

The machine adopts the guillotine type structure, which is mainly composed of a frame, a knife holder, a blade gap adjusting mechanism, a pressing material mechanism, a front stopper, a rear stopper, a hydraulic system and an electrical system.The frame is made of steel structure, left and right vertical plate, worktable and pressure plate are welded into a whole structure. After welding, the internal stress is eliminated by tempering, so the whole steel is good and the stability is high.Shear/Cutting blade is with four sides, all sides can be used. Shear/Cutting angle can be adjusted. Rolling type front support feeding for heavy sheets. Backgauge with ball screw and linear guide railBack motor with reducerEstun E21 control systemKACON footpedalSchneider electrial main componentsDELTA frequency converterMain motor SiemensBosch-Rexroth hydraulic valve

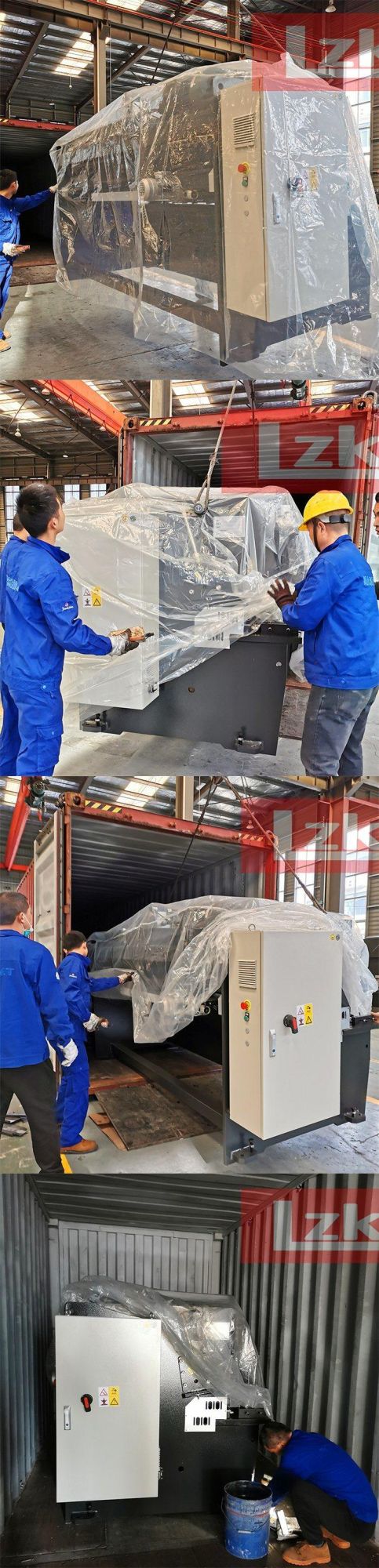

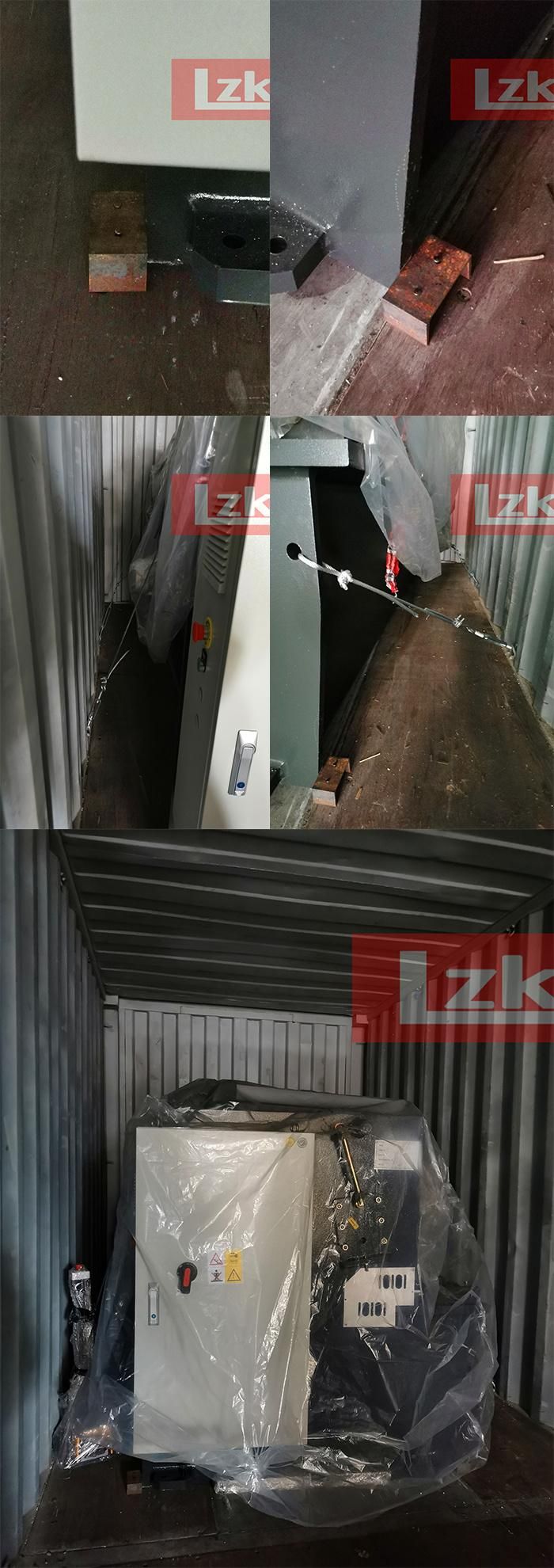

Cutting/shear machine loading and fixing process

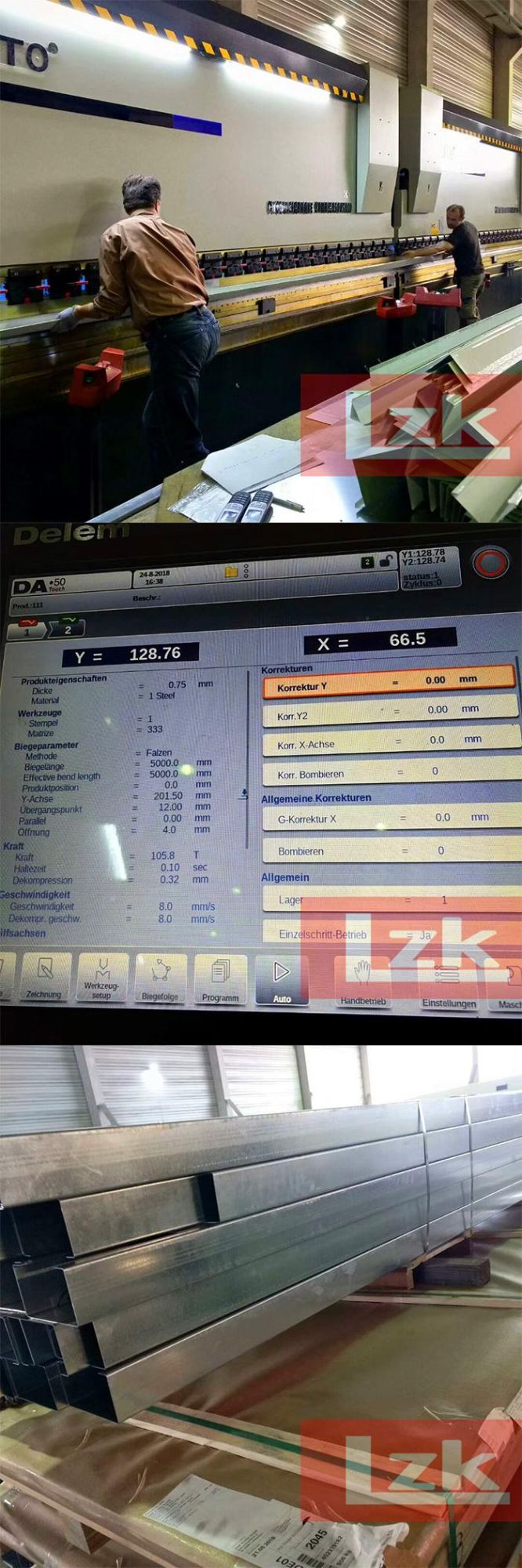

Our machine works well in customer's workshGerman CustomerRussia Customer, manufacturer of Yacht

Customer come from different countries for cooperation and inspection
