• Model NO.：SB-25CNCDRE
• Type：Pipe and Tube Bending Machine
• Machine Type：Hydraulic Tube Bending Machine
• Certificates：CE, ISO9001
• Color：Blue or Customized
• Eextra Function：1d Bending, Cutting
• Modle：Sb-25cncdre
• Brand：Sanco
• Technology：Taiwan
• Application：Wheelbarrow, Wheelchair, Boiler, Automobile
• Applied Material：Carbon Steel, Stainless Steel, Copper, Aluminum
• Transport Package：Wooden Case
• Specification：2000kgs
• Trademark：Sanco
• Origin：China
• HS Code：846221
• Production Capacity：5000sets,Year

Basic Info.

Model NO. SB-25CNCDRE Type Pipe and Tube Bending Machine Machine Type Hydraulic Tube Bending Machine Certificates CE, ISO9001 Color Blue or Customized Eextra Function 1d Bending, Cutting Modle Sb-25cncdre Brand Sanco Technology Taiwan Application Wheelbarrow, Wheelchair, Boiler, Automobile Applied Material Carbon Steel, Stainless Steel, Copper, Aluminum Transport Package Wooden Case Specification 2000kgs Trademark Sanco Origin China HS Code 846221 Production Capacity 5000sets/Year

Product Description

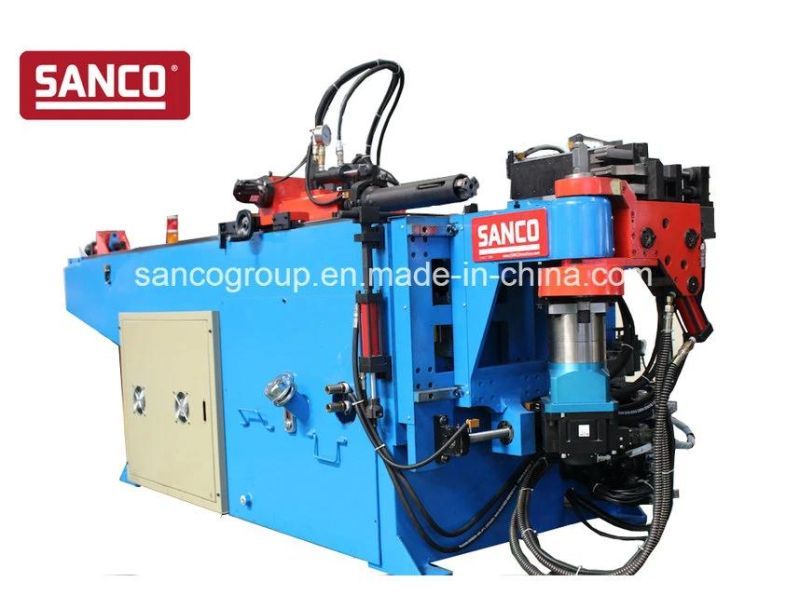

 Full Electric CNC Pipe Bending Machine




Full automatic CNC Pipe/Tube Bending Machine is full automatic type machine for bending three dimensional complicated workpiece., which can input YBC or XYZ into controlling system, and machine make the tube bend accordingly.
 Bending-Auto driven by servomotor, Rotaion-Auto by servomotor, Feeding-Auto by servomotor

Options:
DR     Double radius
TR      Triple radius
QR     Quadruple radius
MR     Multi radius
LR      Left and right direction bending
R        Rolling / Pushing
P        Punching
C        Cutting

Safty cover
Bend 1.0XD radius, or more tight radius
Auto mandrel lubrication system
Fan / Water / Oil cooling system
Robot loading and unloading
Windows XP controller
 Industry PC (3D tube showing, function of mirror image and reverted image)
3D bending simulation, can read CAD files
Connect three coordinates measuring instrument

Safe blanket / Infrared alarm device


Applications:
Exhaust pipe of car, motorcycle, airplane and other machinery.
Tubes of air conditioning, furnitures, bikes, light pole, sports facilities
Kitchen and bathing facilities, medical equipments.
Applied material: carbon steel, stainless steel, aluminum, copper, alloy
Applied products: round tube & bar, square tube & bar, rectangle tube & bar, virous profile

Technical Data:


Item	Data
Max Bending Capacity	Φ25mm
Rang of Bending Radius	10-150 mm
Max Bend Angle	190 Deg
Max Length Over Mandrel	2000 mm
Bending Speed	36-200 Deg/Sec
Bending Precision	+/-0.05 Deg
Feeding Speed	200-1000 mm/Ses
Feeding Precision	+/-0.05 mm
Rotate Speed	36-350 Deg/Sec
Rotate Precision	+/-0.05 Deg

Company Introduction:




  Zhangjiagang SANCO Machinery Co., Ltd


Our company video link:

https://sancogroup.en.made-in-china.com
SANCO(Taiwan and China mainland)Machinery Co., Ltd. was established in 1984, and have cooperation with Taiwan bender company since 1989, specialized in manufacturing Pipe Bending Machine, Metal Circular Saw Machine, Pipe End Forming Machine, Polishing Machine, Chamfering Machine and so on. In 1984, SANCO and "Shanghai Aircraft Design and Research Institute" joint the production of hydraulic pipe bending machine. And in 1984, "Shanghai Aircraft Manufacturing Co., Ltd." assembled 25 airplanes of American model MD82. Chinese government required SANCO mapping the prototype of Italian bending machine, and SANCO manufacturing the bending machine to produce airplane related accessories.
With 176 workers, 11 professional and technical engineers. SANCO company occupies 20,000 square meters, construction area of 15,000 square meters.
The three-dimensional CNC bending machine developed by SANCO is advanced than other Chinese factories. SANCO is the leader of drafting the "Chinese Standard of CNC Pipe Bending Machine" (GB / T28763-2012), released in November 2012, and implemented in May 2013. And SANCO is also the leader of "Chinese Standard of Pipe Bending Machine Safety" (GB28760-2012), released in November 2012, and implemented in October 2013.
All machines marked ISO 9001 and CE. SANCO machines exported to the United States, UK, France, Russia, Australia, India, Brazil, Poland, Canada, South Africa, Mexico, UAE, Saudi Arabia, and so on 58 countries.
NOW, AND FOREVER MORE ...    SANCO DO THE BEST OR NOTHING.

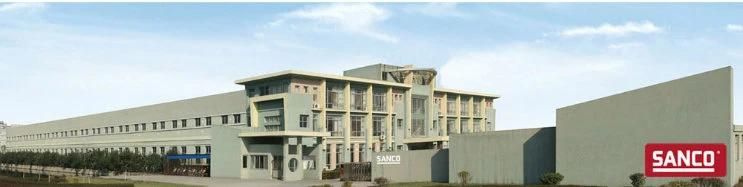

Company Photos:

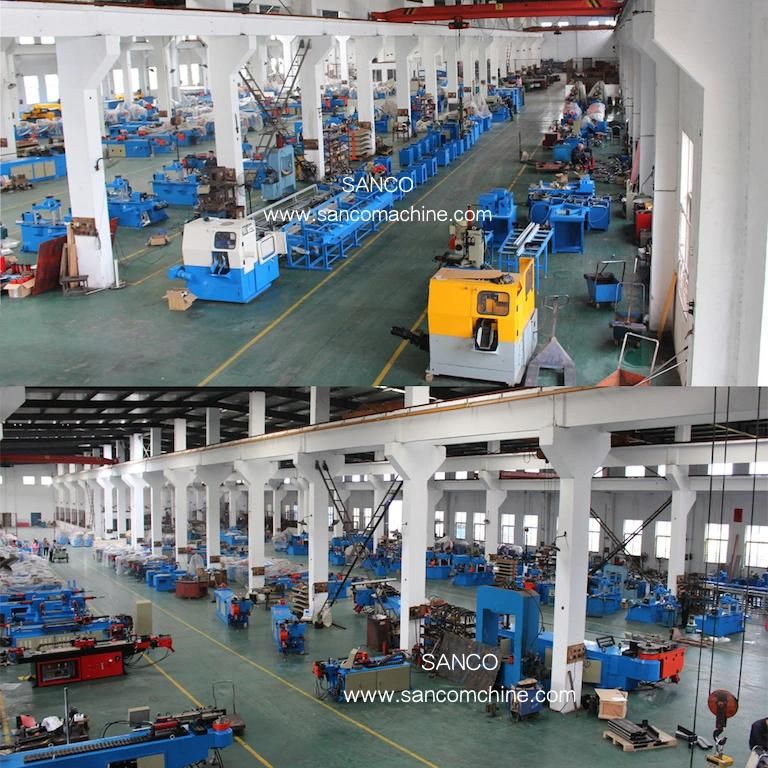

Aseembling workshops:

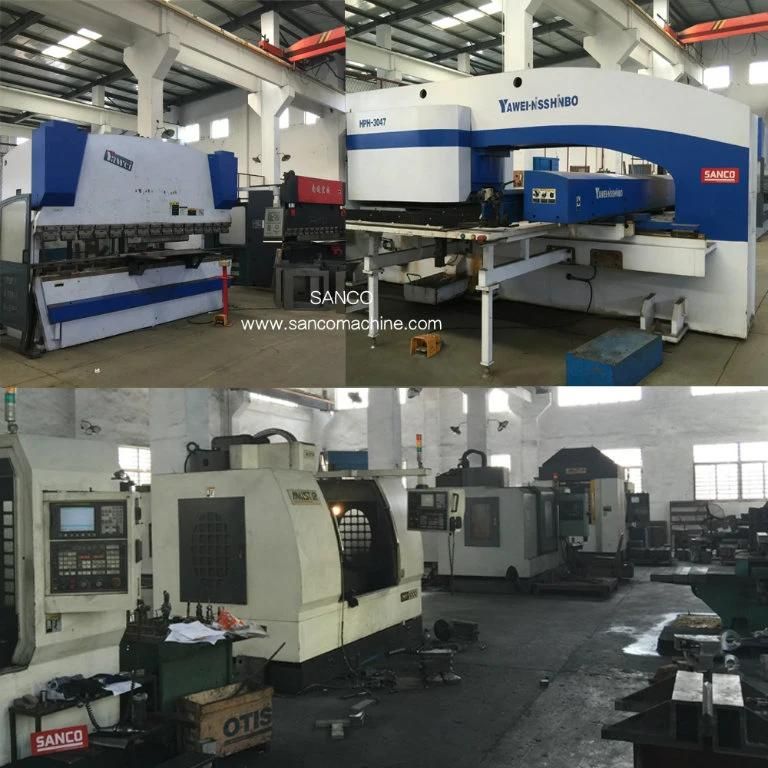

Finishing workshops:






Certificates:




Contacts:

SANCO MACHINERY CO., LTD Since 1984
Add: 17#, Economic Development Zone, Nanfeng Town, Zhangjiagang City, China.



sancogroup.en.made-in-china.com
