• Model NO.：SB-38CNC-DR-E-R
• Machine Type：Hydraulic Tube Bending Machine
• Certificates：CE, ISO9001
• Color：Blue or Customized
• Eextra Function：1d Bending, Cutting
• Modle：Sb-38cncsrh
• Brand：Sanco
• Technology：Taiwan

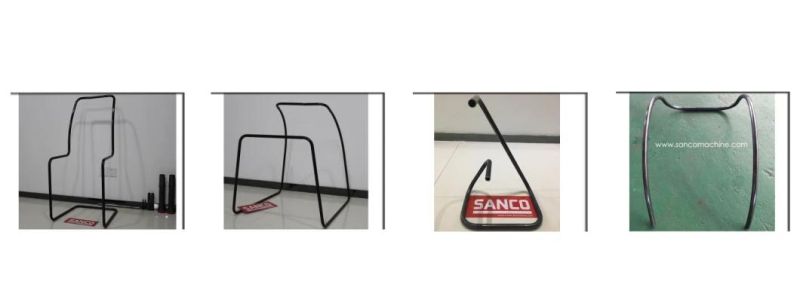

• Application：Wheelbarrow, Wheelchair, Boiler, Automobile
• Applied Material：Carbon Steel, Stainless Steel, Copper, Aluminum
• Transport Package：Wooden Case
• Specification：2500kgs
• Trademark：Sanco
• Origin：China
• HS Code：846221
• Production Capacity：3000sets,Year

Basic Info.

Model NO. SB-38CNC-DR-E-R Machine Type Hydraulic Tube Bending Machine Certificates CE, ISO9001 Color Blue or Customized Eextra Function 1d Bending, Cutting Modle Sb-38cncsrh Brand Sanco Technology Taiwan Application Wheelbarrow, Wheelchair, Boiler, Automobile Applied Material Carbon Steel, Stainless Steel, Copper, Aluminum Transport Package Wooden Case Specification 2500kgs Trademark Sanco Origin China HS Code 846221 Production Capacity 3000sets/Year

Product Description

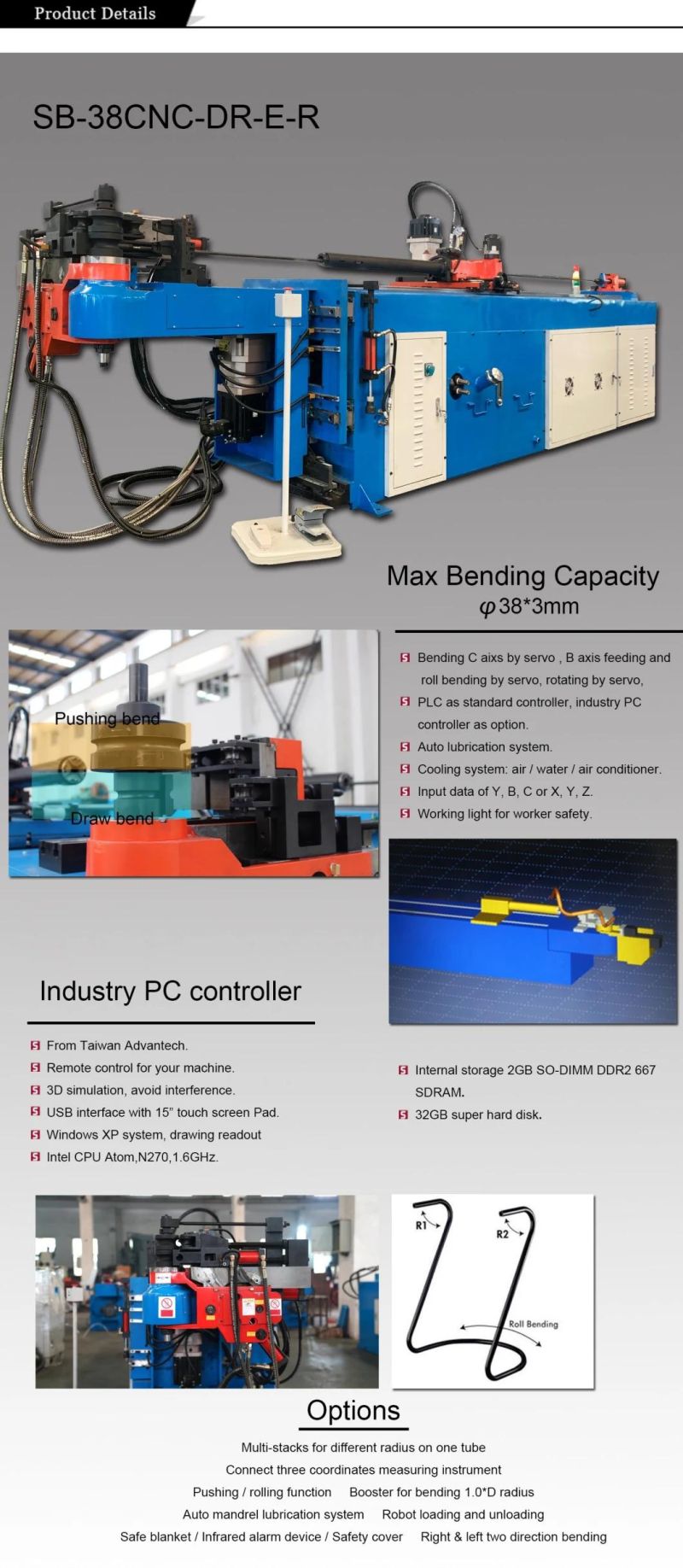

Machine Description:

1.Bend-arm (C-axis) by hydraulic. Clamp die by hydraulic, Pressure die by hydraulic-bending
2.Carriage (Y-axis) by servo motor. Collet (B-axis) : rotation by servo motor, grip by hydraulic.-bend
3.Anticipated mandrel retraction unit. Standing pedestal, serves emergency stop and remote control -tube bending
4.Water-cooling system. Diagnosis error immediately.-pipe bending machine
5.Central Automatic lubrication system.-tube bending machine
6.Foot pedal for safe start.-pipe bending machine
7.It is fully automatic pipe bending machine, with PC control system (more advanced than PLC), two servo for rotary, feeding.-tube bending machine
8.Touch screen panel display English, have different bending degree prefabricate, dialogue operation, can choose manual, semi-automatic and full automatic operation manual, portable pedal switch with start and emergency stop function. Multi axles working simultaneously.-pipe bender
9.Bending pipe - Automatic.  Rotating pipe - Automatic.  Feeding pipe - Automatic.
10.One key back up of programs for USB or disk storage or through INTERNET. Management and storage of bend data and tools is done in standard text files on the hard disk of the control PC. In case of requirement it is also possible to integrate the PC into bending machine. Therefore an Ethernet adapter is included. The number of tools and products is practically unlimited. Product and tool files can easily be edited (also on a separate PC) and printed out.-tube bending machine
11.Security code for the protection the data setting and selected operation features.-pipe bending machine
12.To access to the history bending setting data to the facilitate study of malfunction with one set of tooling.-pipe bending machine
13.All the parts of hydraulic system, control system, driver system and display system are imported from famous brand, with high accuracy, high efficient, suitable for mass production. -pipe bending machine
14.CNC fully auto, have cubical space bending equipment, loading the whole bending process is automatic. -pipe bending machine
15.The machine is convenient operation, stable performance and high safety factor. The machine is the ideal choice for the pipe processing. -pipe bending machine
16.PC assorted with touch screen display, capable of 3D bending simulation, 3D preview and collision prevention. -pipe bending machine
17.CE, ISO9001 Certification. -pipe bending machine










Technical Data:


No.	Item	Data
1	Max Bending Capacity	Φ38*3mm
2	Rang of Bending Radius	25-150 mm
3	Max Bend Angle	190 Deg
4	Max Length Over Mandrel	2600 mm
5	Working Height	1120 mm
6	Bending Speed	248 Deg/Sec
7	Bending Precision	+/-0.1 Deg
8	Feeding Speed	940 mm/Ses
9	Feeding Precision	+/-0.1 mm
10	Rotate Speed	375 Deg/Sec
11	Rotate Precision	+/-0.1 Deg
12	Machine Size	3900x1000x1500 mm
13	Machine Weight	2200 Kg
