Cutting & Fold-bend Machine

6mm 3m CNC Metal Sheet Bending Machine for Switchgear Making

LZK CNC Machine Tool (Anhui) Manufacturing Co., Ltd.
  • Warranty:2-year
  • Certification:RoHS, ISO 9001:2000, ISO 9001:2008, CE, UL

Base Info

  • Model NO.:HPB 100T3200
  • Automation:Automatic
  • Suitable for:Rubber, Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel, Mild Steel, Stainless Steel
  • Type:Press Brake
  • System:Da66t
  • Pressure:100ton
  • Bending Length:3200mm
  • Bending Thickness:4mm with Length of 3m
  • Weight:7900kg
  • 2D Programming:Yes
  • Compensation:Automatic CNC Compensation

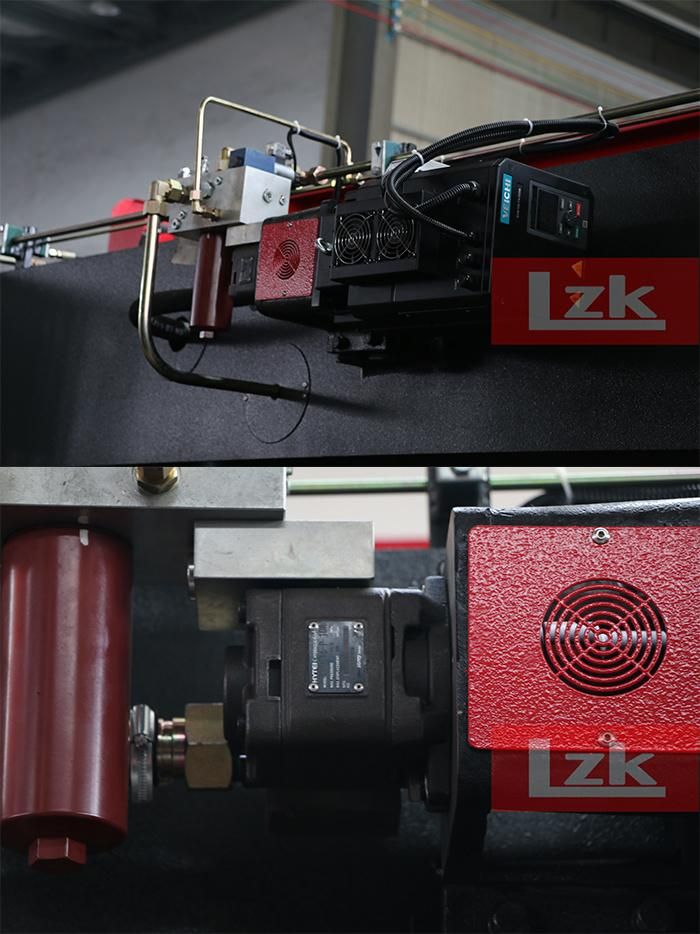

  • Hydraulic System:Bosch Rexroth
  • Main Motor:Energey Saving Servo Motor

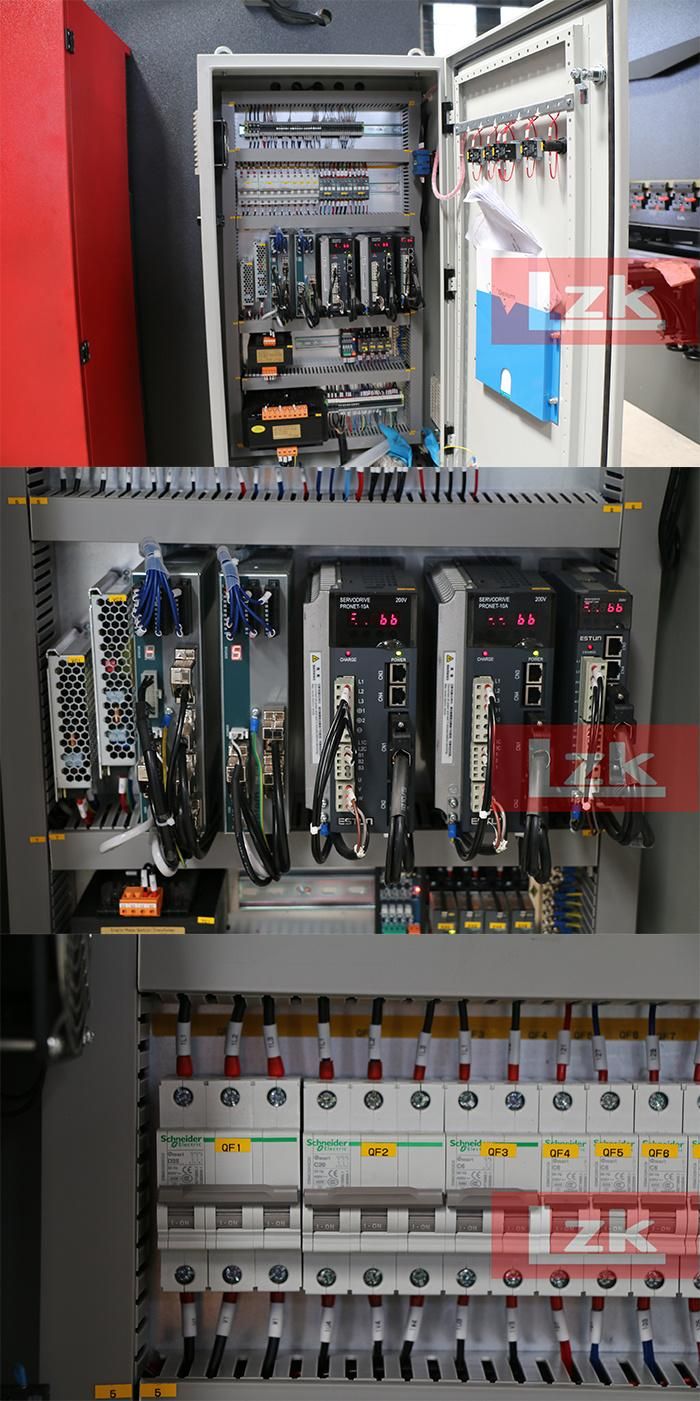

  • Main Electrics:Schneider
  • Transport Package:40hq
  • Specification:3800× 1750× 2580mm
  • Trademark:lzk
  • Origin:China, Maanshan
  • HS Code:8462219000
  • Production Capacity:100 Set,Month

Description

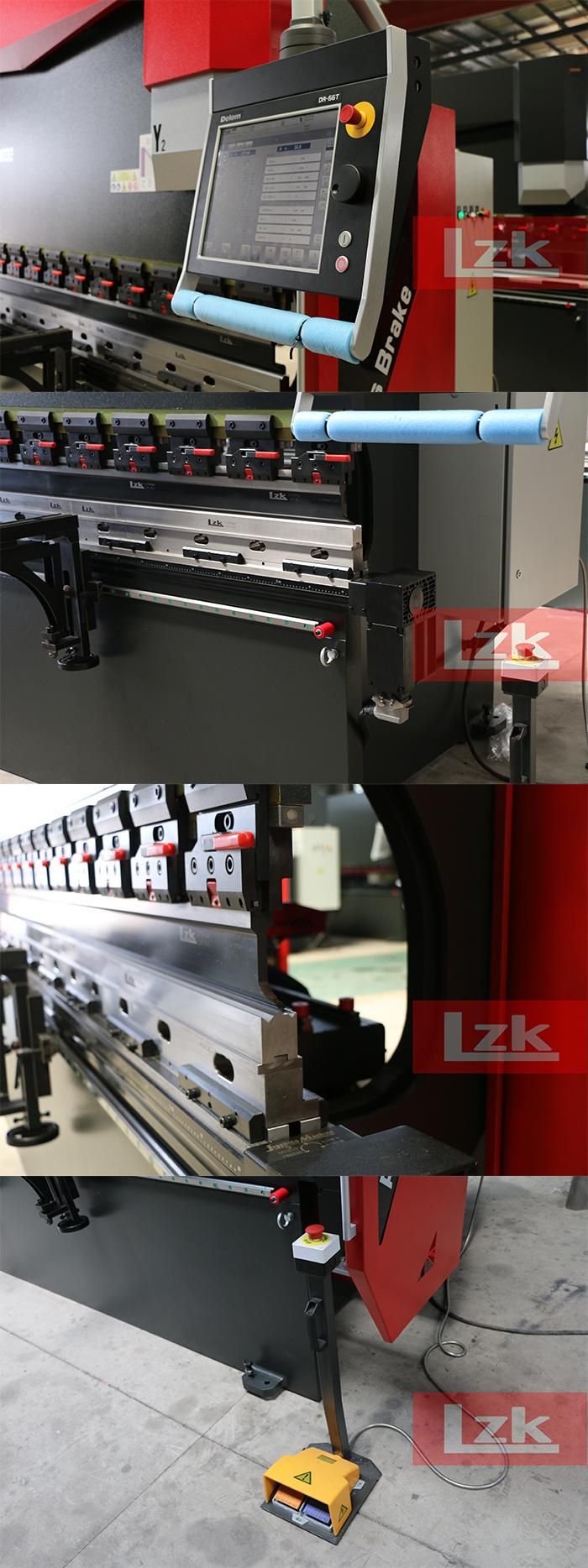

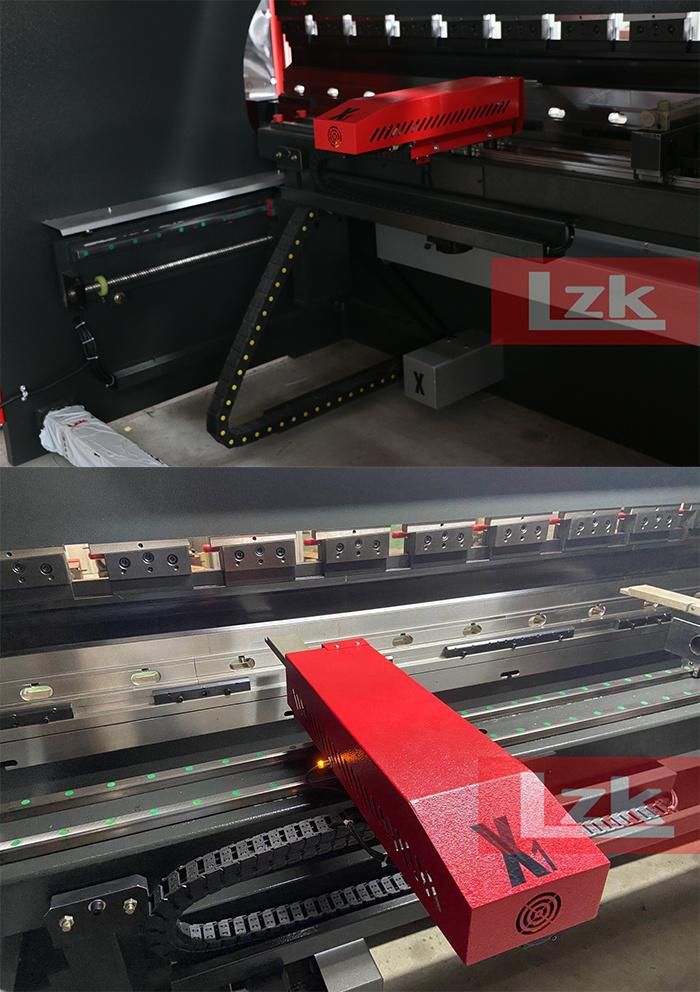

Energy saving type cnc press brake with main motor as servo motor. 1. The electro-hydraulic servo CNC bending machine adopts a hydraulic convex automatic compensation system to solve the influence of the deformation of the slider during the bending process on the quality of the workpiece. The amount of compensation is automatically adjusted by the CNC system, which is convenient and accurate.2. The electro-hydraulic servo CNC bending machine adopts a full-featured back gauge mechanism, which can choose to control multiple back gauge shafts. Functional parts in the backgauge. Imported originals such as guide rails, screws and bearings are used to ensure the accuracy of the back gauge.3. The body of the electro-hydraulic servo CNC bending machine adopts an integral welding structure, which is convenient for transportation and processing, and can ensure the accuracy of the machine.6mm 3m CNC Metal Sheet Bending Machine for Switchgear MakingDELEM DA66T CNC SYSTEMQuick clampElectrical crowning One set of standard V8+V12 die, it can also be customized by customer's productFoot pedal6mm 3m CNC Metal Sheet Bending Machine for Switchgear MakingBack guage is X, R, X1 axes Ball screw and linear guide railServo motor controlled X, R, X1 axes6mm 3m CNC Metal Sheet Bending Machine for Switchgear MakingLight curtain for safety protectionWith 2 backgauge fingers as standard6mm 3m CNC Metal Sheet Bending Machine for Switchgear MakingMain motor is with SERVO MOTOR, good for energy saving, low noise, longer lifeSunny oil pumpBosch Rexroth valve 6mm 3m CNC Metal Sheet Bending Machine for Switchgear MakingSchneider main electrical componentsServo drive
German customer bought our tandem press brake for long sheet bending, photos were taken by our engineer
when dis aftersale service.

6mm 3m CNC Metal Sheet Bending Machine for Switchgear Making
Our Russis customer bought three sets of cnc press brake from us, they are manufacture of Yacht.
6mm 3m CNC Metal Sheet Bending Machine for Switchgear Making
Customer form different countries come for inspection and cooperation.
