• Model NO.：HPB 100T3200
• Type：Press Brake
• CNC System：Delem Da53t
• Axes：Y1, Y2, R and Automatic Crowning
• Max Bending Length：4000mm
• Max Bending Thickness：10mm for 4m Sheet
• Weight：7600kg

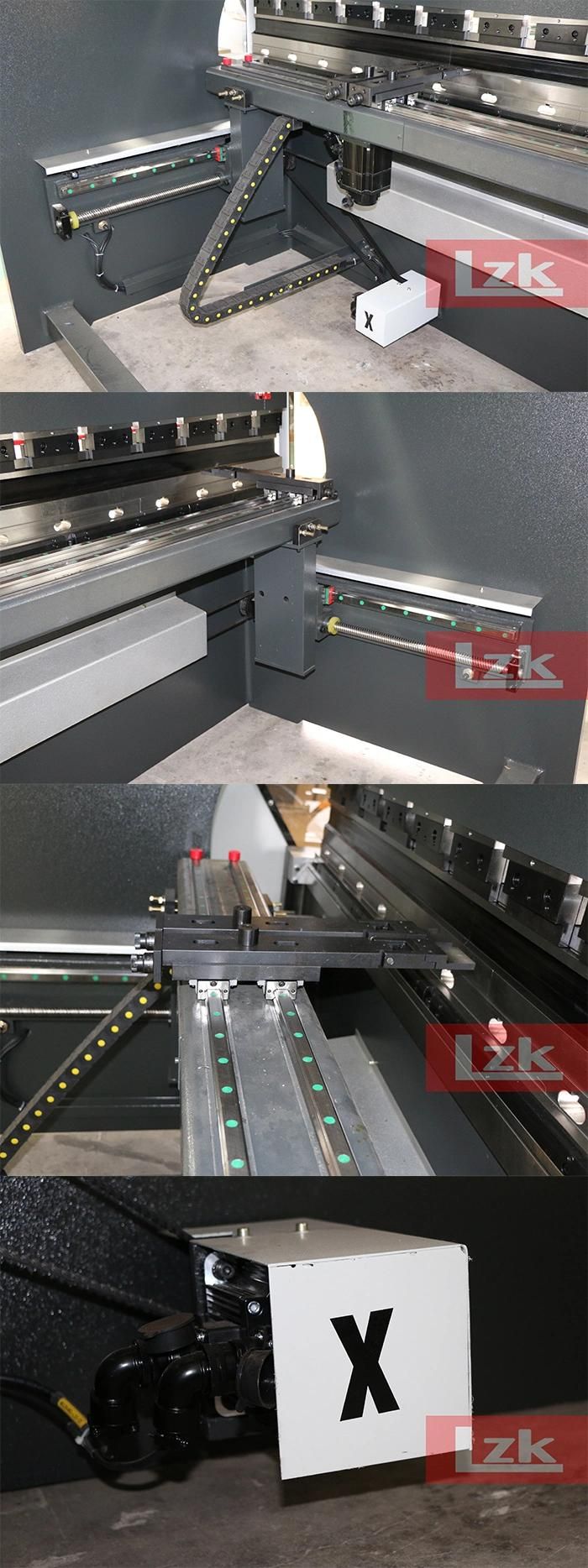

• Backgauge：600mm Distance, Ball Screw and Linear Guide Rail

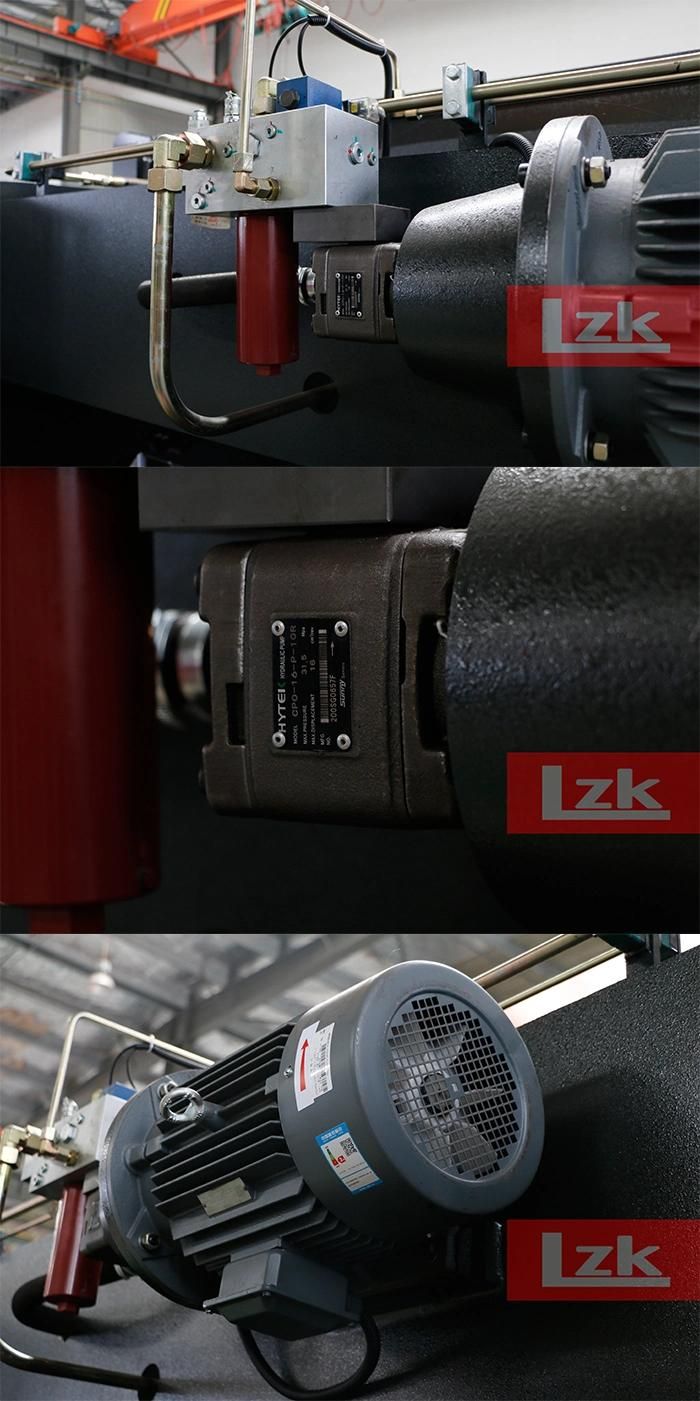

• Main Motor：Servo Motor
• Main Motor Power：7.5kw

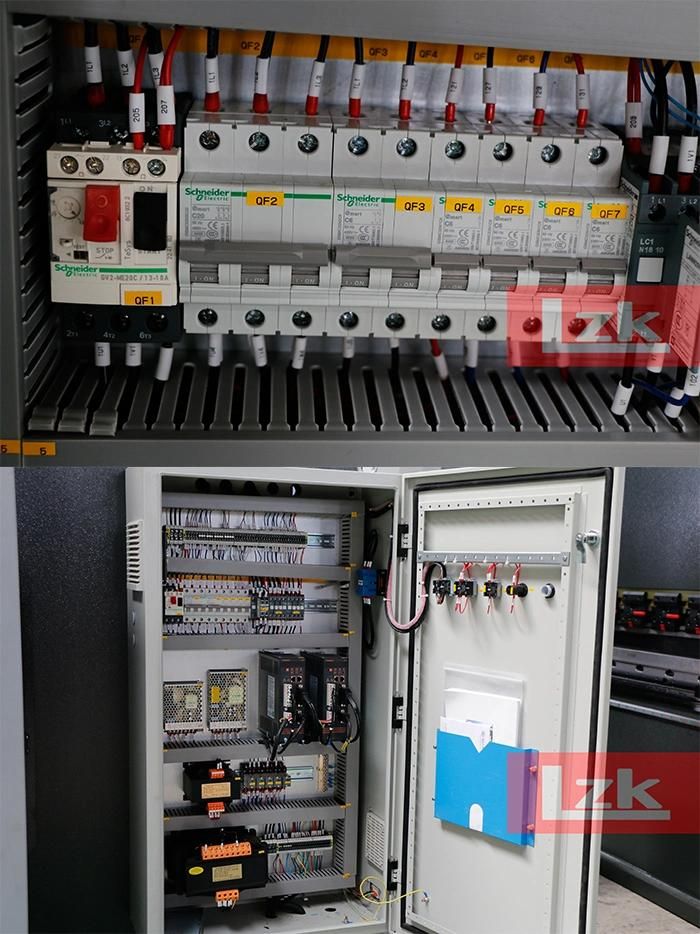

• Main Electrical Components：Schneider

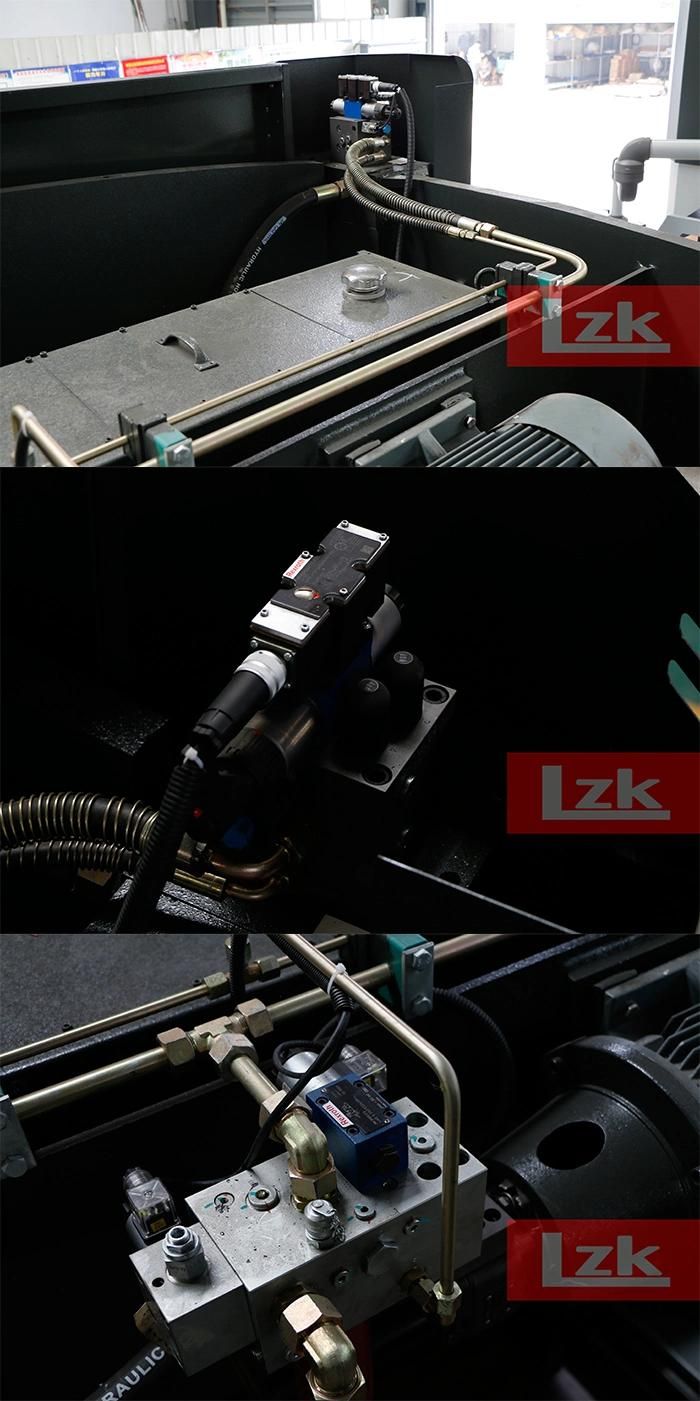

• Hydraulic System：Bosch-Rexroth
• Servo Drive：Japan Yaskawa
• Grating Ruler：Italy Givi
• Transport Package：20gp
• Specification：3800× 1750× 2580mm
• Trademark：LZK
• Origin：Maanshan, Anhui Province, China
• HS Code：8462219000
• Production Capacity：100 Sets,Month

The frame is made of steel structure, left and right vertical plate, worktable and pressure plate are welded into a whole structure. After welding, the internal stress is eliminated by tempering, so the whole steel is good and the stability is high.
Latest high-frequency responding hydraulic control technology, faster, more efficient and accurate.

Our press brakes work well in customer's workshop

German CustomerRussia Customer, manufacturer of Yacht

Customer come from different countries for cooperation and inspection
