• Model NO.：DP-600CQ
• Hz：50Hz,60Hz
• Phase：Single or Three Phase
• Transport Package：Wodden Case
• Specification：SGS
• Trademark：DP
• Origin：Kunshan, Jiangsu, China.
• HS Code：8441100000
• Production Capacity：50 Sets,Month

Basic Info.

Model NO. DP-600CQ Hz 50Hz/60Hz Phase Single or Three Phase Transport Package Wodden Case Specification SGS Trademark DP Origin Kunshan, Jiangsu, China. HS Code 8441100000 Production Capacity 50 Sets/Month

Product Description

Craft Robo Cutting Machine

Function &Characteristics:

This machine
1, imported PLC touch screen operation control,
2, easy operation and convenient,
3, high speed of cutting, and high precise

4, The machine apply to PVC adhesive sheet, insulating paper, Mylar sheet, foam, industry adhesive tape, electronic adhesive tape and all kinds of electronic material

5, sizing, through and kiss cutting.


Application of sheet cutter:

PVC film,
Insulation sheet,
Mylar, foam,
Industrial tape,
Electronic tape
And various inch setting, entirely broken
And partially broken electronic materials.


1. Max material width: 600mm;
2. Tolerance: 0.05mm, Precision:±0.05mm;
3. Material thickness range: 0.5mm-15mm;

4. Cutting speed:125 cut/min;
5. Both kiss-cut and complete cut are available; complete cut is for standard machine, and kiss-cut is an option;

6. This  eva foam cutting machine employs a PLC to preset length, speed, and quantity, and it will memorize them when it runs next time;

7. This  eva foam cutting machine adopts an air shaft as the loading shaft;

8. Using a servo motor to make sure accuracy;

9. It has automatic unwinding function;

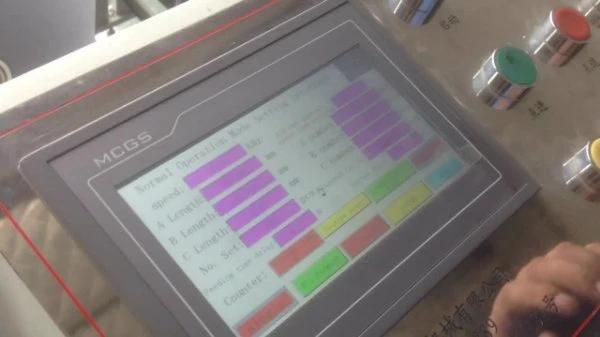

10. Operation is easy with a touch screen;
11. Waste rate is low;

12. Manufacturing experience: 13 years;
13. Export experience: 6 years.



Options:

1. Static eliminator

2. Conveyor belt

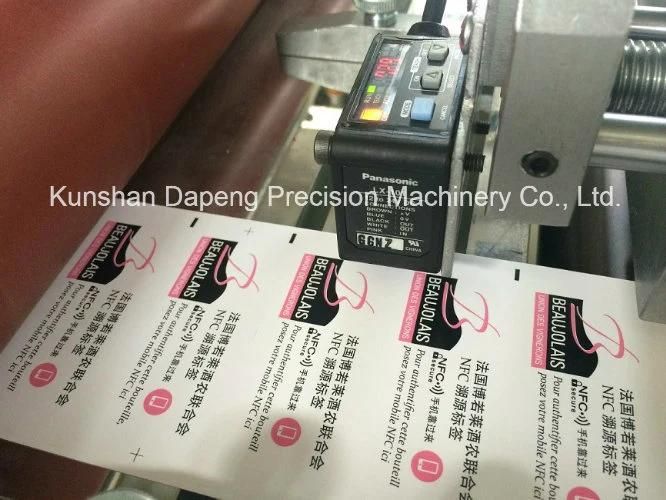

3. Photoelectric eyes

4. Kiss cut knife



Technical Data

Model	Max Feeding Width(mm)	Main Power(W)	Cutting Speed(t/m)	Size(mm)	Weight(kg)	Precision(mm)	Voltage(V)
DP-360	360mm	150W	110m/t	900mm*800mm*1400mm	300kgs	+/0.1mm	380V 50 HZ
DP-500	500mm	400W	110m/t	1200mm*900mm*1280mm	400kgs	+/-0.1mm	220V 50HZ
DP-600	600mm	400W	110m/t	1530mm*1220mm*1270mm	350kgs	+/-0.1mm	380V 50HZ

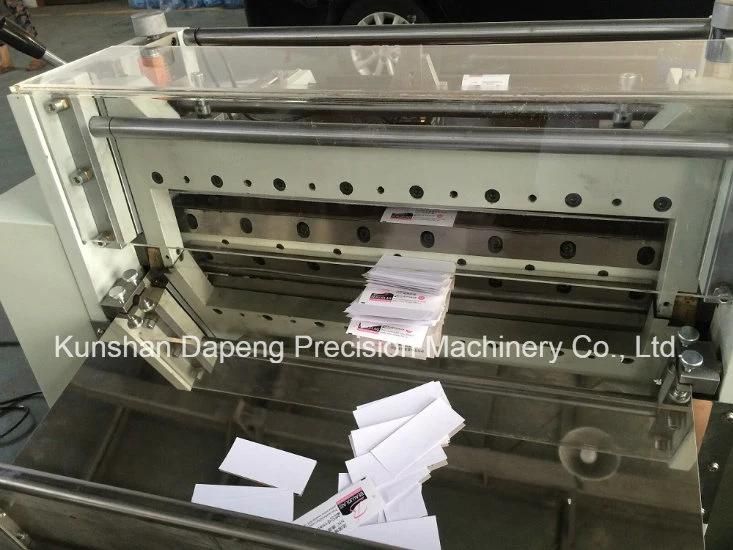

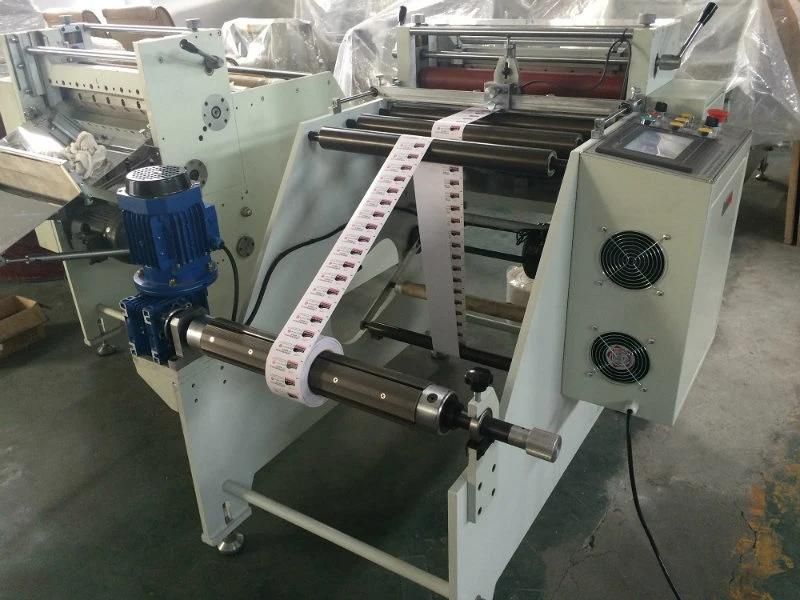

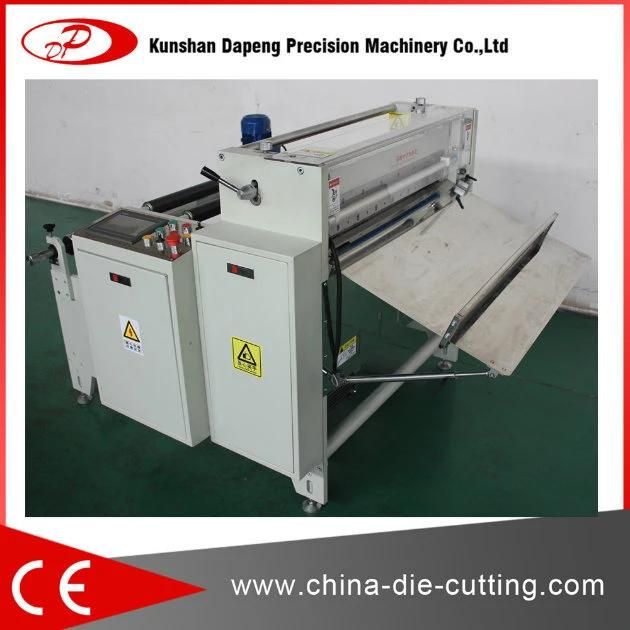

Machine Display




Application picture
