Brake Tubes Bending Machine CNC Bender Automobile Parts Bending

Zhangjiagang Sanco Machinery Co., Ltd.
  • Waterproof Rating：IPX-8
  • Warranty：2-year
  • Condition：New
  • Certification：ISO 9001:2000, CE, UL
  • Automation：Automatic
  • Suitable for：Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel

Base Info

  • Model NO.：SB-25CNCDRE
  • Type：Pipe and Tube Bending Machine
  • Machine Type：Hydraulic Tube Bending Machine
  • Certificates：CE, ISO9001
  • Color：Blue or Customized
  • Eextra Function：1d Bending, Cutting
  • Modle：Sb-25cncdre
  • Brand：Sanco
  • Technology：Taiwan
  • Application：Wheelbarrow, Wheelchair, Boiler, Automobile
  • Applied Material：Carbon Steel, Stainless Steel, Copper, Aluminum
  • Transport Package：Wooden Case
  • Specification：2000kgs
  • Trademark：Sanco
  • Origin：China
  • HS Code：846221
  • Production Capacity：5000sets,Year

Description

Basic Info.

Model NO. SB-25CNCDRE Type Pipe and Tube Bending Machine Machine Type Hydraulic Tube Bending Machine Certificates CE, ISO9001 Color Blue or Customized Eextra Function 1d Bending, Cutting Modle Sb-25cncdre Brand Sanco Technology Taiwan Application Wheelbarrow, Wheelchair, Boiler, Automobile Applied Material Carbon Steel, Stainless Steel, Copper, Aluminum Transport Package Wooden Case Specification 2000kgs Trademark Sanco Origin China HS Code 846221 Production Capacity 5000sets/Year

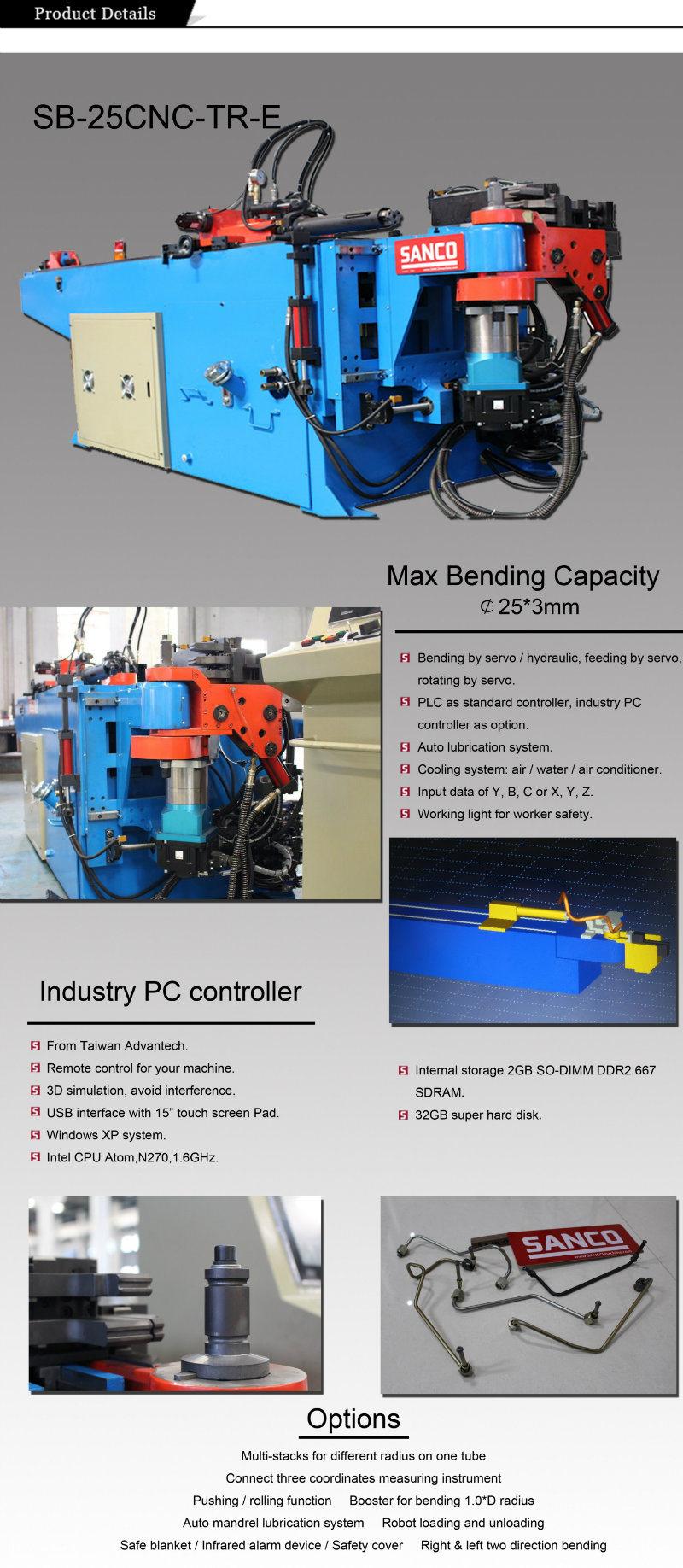

Product Description

1. Bend-arm (C-axis) by AC servomotor.
2. Clamp die by hydraulic; pressure die by hydraulic.
3. Carriage (Y-axis) by AC servomotor.
4. Collets (B-axis): rotation by AC servomotor, grip by hydraulic.
5. With roll bending function (PUSH BENDING), can make big radius by roll bending.
6. Stacks shift : motion up-down by hydraulic, left-right by AC servomotor.
7. Automatic moving parts lubrication as standard
8. Anticipated mandrel retraction unit as standard
19. Industrial PC (windows system): 3D preview, remote control (TeamViewer), 3D bending simulation, 3D tube view
11. Option: auto magazine

Brake Tubes Bending Machine CNC Bender Automobile Parts Bending








Technical Data:

ItemData
Max Bending CapacityΦ25mm
Rang of Bending Radius10-150 mm
Max Bend Angle190 Deg
Max Length Over Mandrel2000 mm
Bending Speed36-200 Deg/Sec
Bending Precision+/-0.05 Deg
Feeding Speed200-1000 mm/Ses
Feeding Precision+/-0.05 mm
Rotate Speed36-350 Deg/Sec
Rotate Precision+/-0.05 Deg
Brake Tubes Bending Machine CNC Bender Automobile Parts Bending
Brake Tubes Bending Machine CNC Bender Automobile Parts Bending
