Tiny CNC Press Brake 30ton/20tonx1000mm/1200mm for Precision Bending

LZK CNC Machine Tool (Anhui) Manufacturing Co., Ltd.
  • Warranty:2-year
  • Condition:New

Base Info

  • Model NO.:HPB 100T3200
  • Certification:RoHS, ISO 9001:2000, ISO 9001:2008, CE, UL
  • Automation:Automatic
  • Suitable for:Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel, Mild Steel, Galvanized Sheet
  • Type:Press Brake
  • System:Da53t
  • Backgauge:500mm Distance, Ball Screw, Linear Guide Rail
  • Bending Angle Programmed:Yes
  • Max Bending Thickness:4mm
  • Max Bending Legnth:1000mm

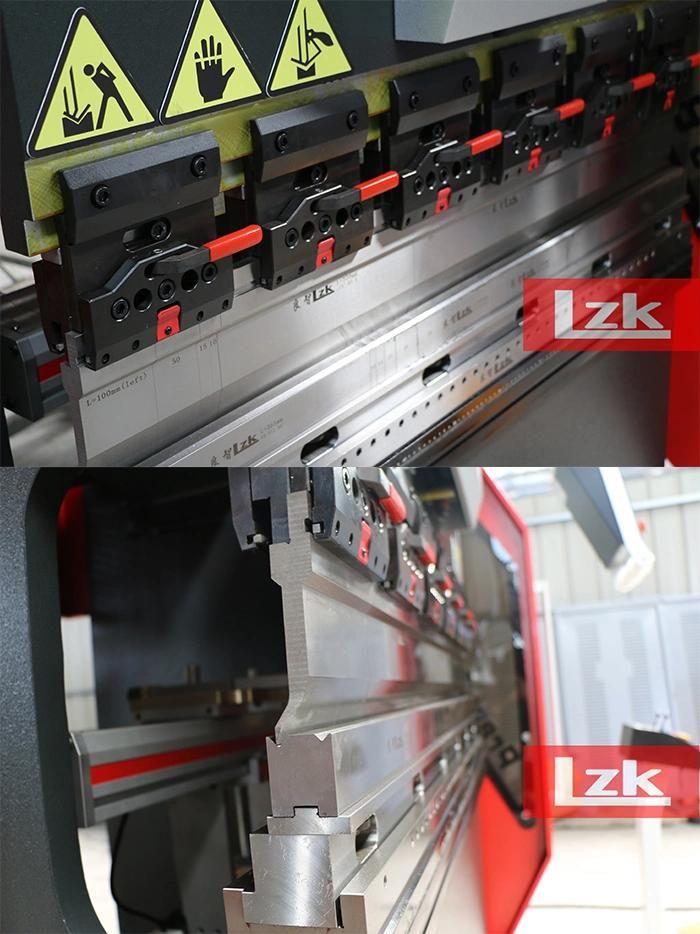

  • Clamping System:Quick Clamp
  • Main Motor:Siemens
  • Electrical Components:Schneider
  • Hydraulic Valve:Rexroth
  • Weight:2500kg
  • Transport Package:20gp
  • Specification:1200X1300X1750mm
  • Trademark:LZK
  • Origin:China
  • HS Code:8462219000
  • Production Capacity:100 Sets,Month

Description

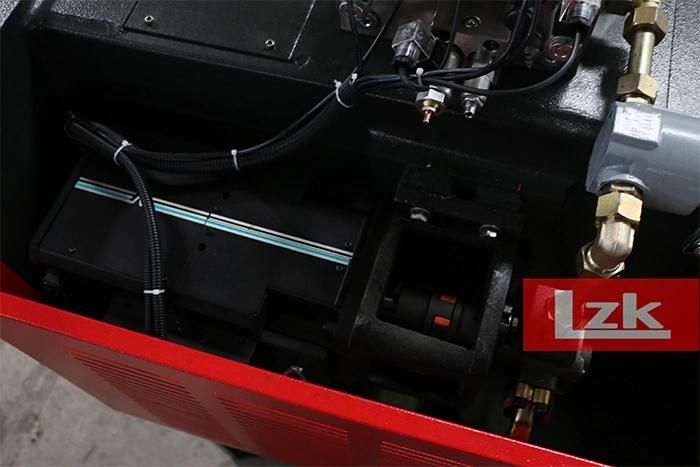

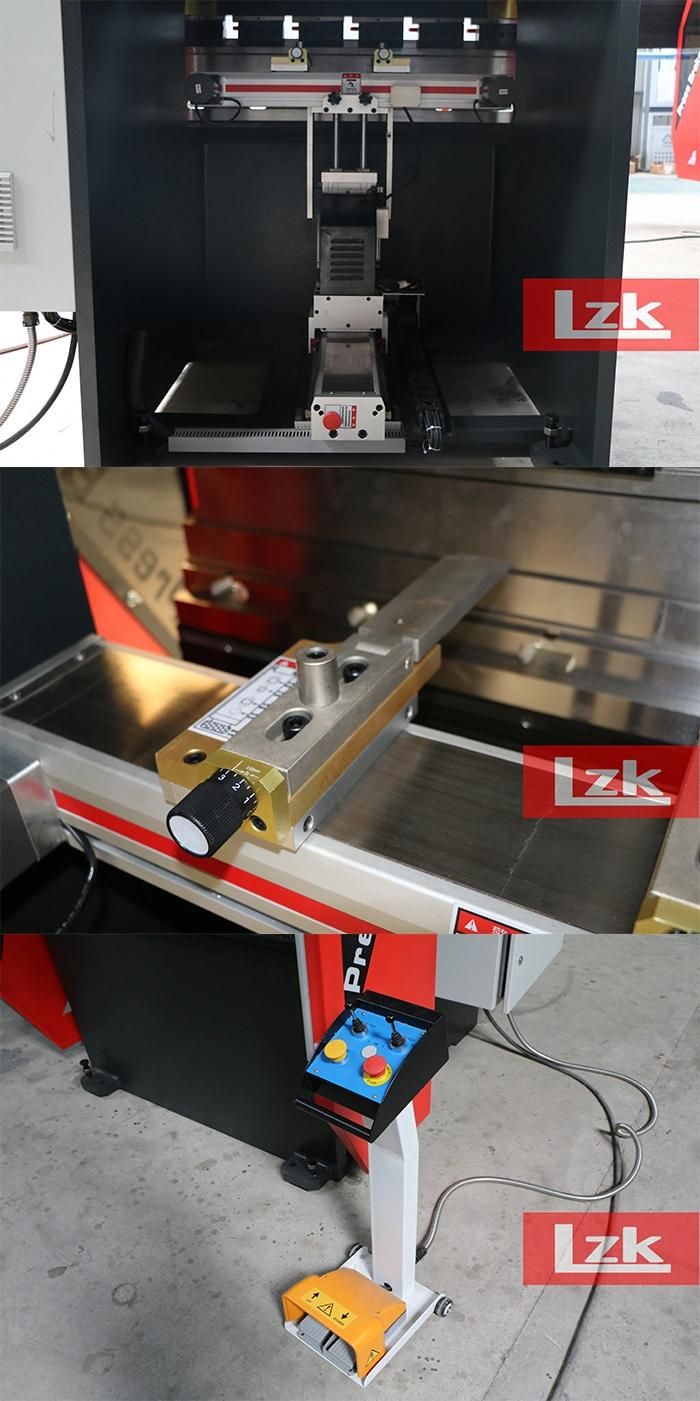

Energy saving type cnc press brake with main motor as servo motor. 1. The electro-hydraulic servo CNC bending machine adopts a hydraulic convex automatic compensation system to solve the influence of the deformation of the slider during the bending process on the quality of the workpiece. The amount of compensation is automatically adjusted by the CNC system, which is convenient and accurate.2. The electro-hydraulic servo CNC bending machine adopts a full-featured back gauge mechanism, which can choose to control multiple back gauge shafts. Functional parts in the backgauge. Imported originals such as guide rails, screws and bearings are used to ensure the accuracy of the back gauge.3. The body of the electro-hydraulic servo CNC bending machine adopts an integral welding structure, which is convenient for transportation and processing, and can ensure the accuracy of the machine.Tiny CNC Press Brake 30ton/20tonx1000mm/1200mm for Precision Bending
