Hydraulic Press Brake for 63t 2500 Length Bending Machine
Nanjing Harsle Machine Tool Co., Ltd.- Waterproof Rating：IPX-0
- Warranty：2-year
- Condition：New
- Certification：ISO 9001:2008, CE
- Automation：Manual
- Suitable for：Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Base Info
- Model NO.：WC67K
- Type：Hydraulic Bending Machine
- Color：as You Like
- Company Nature：Manufaturer
- Weight：7800kg
- Controller：E21
- Transport Package：Standard Package
- Specification：3000*1500*2500mm
- Trademark：harsle
- Origin：Jiangsu, China
- HS Code：8462219000
- Production Capacity：1000sets
Description
Basic Info.
Model NO. WC67K Type Hydraulic Bending Machine Color as You Like Company Nature Manufaturer Weight 7800kg Controller E21 Transport Package Standard Package Specification 3000*1500*2500mm Trademark harsle Origin Jiangsu, China HS Code 8462219000 Production Capacity 1000setsProduct Description

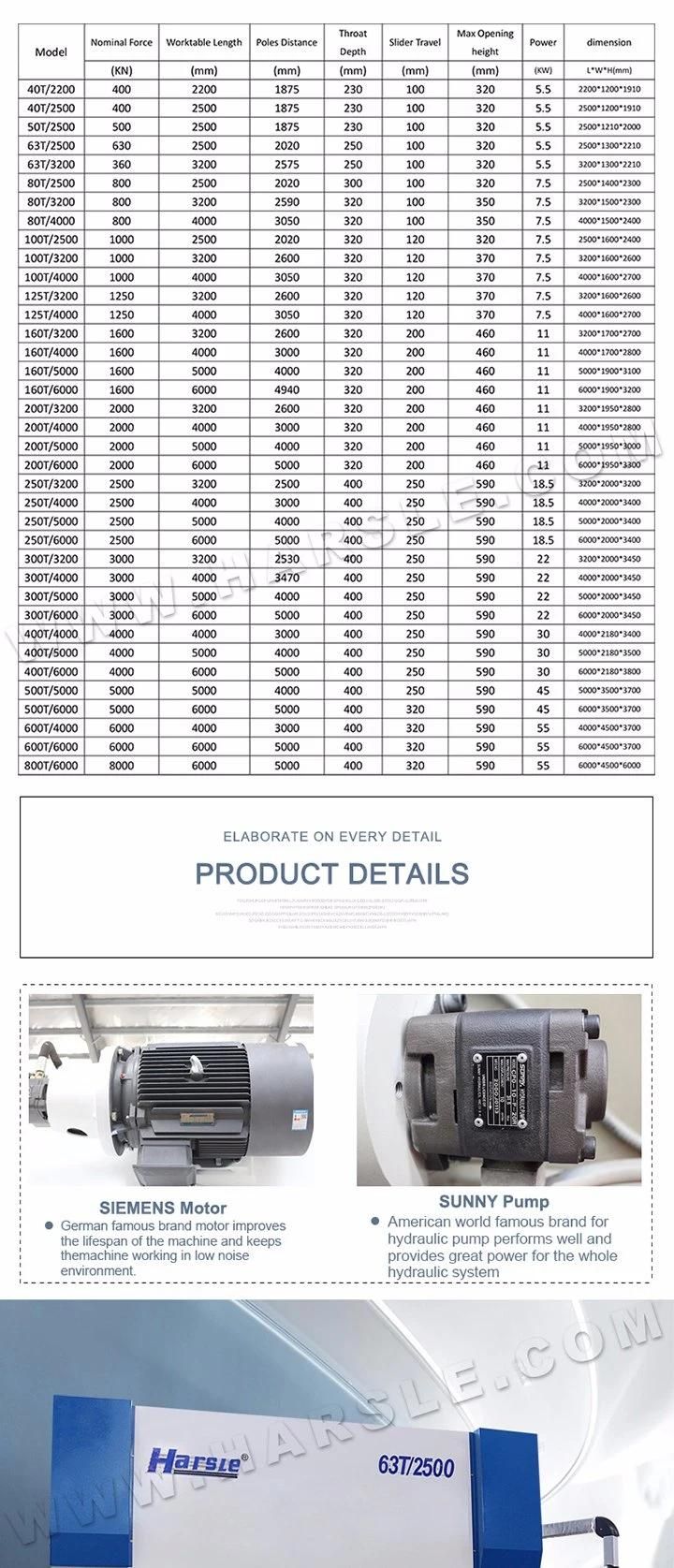

Technical Parameters
| Type | Nominal Force(KN) | Worktable size(mm) | Poles Distance (mm) | Throat Depth (mm) | Slider Travel (mm) | Max Open(mm) | Power(KW) | Dimension(mm) |
| 40T/2200 | 400 | 2200 | 1875 | 230 | 100 | 320 | 5.5 | 2200*1200*1910 |
| 40T/2500 | 400 | 2500 | 1875 | 230 | 100 | 320 | 5.5 | 2500*1200*1910 |
| 50T/2500 | 500 | 2500 | 1875 | 230 | 100 | 320 | 5.5 | 2500*1210*2000 |
| 63T/2500 | 630 | 2500 | 2020 | 250 | 100 | 320 | 5.5 | 2500*1300*2210 |
| 63T/3200 | 630 | 3200 | 2575 | 250 | 100 | 320 | 5.5 | 3200*1300*2210 |
| 80T/2500 | 800 | 2500 | 2020 | 300 | 100 | 320 | 7.5 | 2500*1400*2300 |
| 80T/3200 | 800 | 3200 | 2590 | 320 | 100 | 350 | 7.5 | 3200*1500*2300 |
| 80T/4000 | 800 | 4000 | 3050 | 320 | 100 | 350 | 7.5 | 4000*1500*2400 |
| 100T/2500 | 100 | 2500 | 2020 | 320 | 120 | 320 | 7.5 | 2500*1600*2400 |
| 100T/3200 | 100 | 3200 | 2600 | 320 | 120 | 370 | 7.5 | 3200*1600*2600 |
| 100T/4000 | 100 | 4000 | 3050 | 320 | 120 | 370 | 7.5 | 4000*1600*2700 |
| 125T/3200 | 1250 | 3200 | 2600 | 320 | 120 | 370 | 7.5 | 3200*1600*2600 |
| 125T/4000 | 1250 | 4000 | 3050 | 320 | 120 | 370 | 7.5 | 4000*1600*2700 |
| 160T/3200 | 1600 | 3200 | 2600 | 320 | 200 | 460 | 11 | 3200*1700*2700 |
| 160T/4000 | 1600 | 4000 | 3000 | 320 | 200 | 460 | 11 | 4000*1700*2800 |
| 160T/5000 | 1600 | 5000 | 4000 | 320 | 200 | 460 | 11 | 5000*1900*3100 |
| 160T/6000 | 1600 | 6000 | 4940 | 320 | 200 | 460 | 11 | 6000*1900*3200 |
| 200T/3200 | 2000 | 3200 | 2600 | 320 | 200 | 460 | 11 | 3200*1950*2800 |
| 200T/4000 | 2000 | 4000 | 3000 | 320 | 200 | 460 | 11 | 4000*1950*2800 |
| 200T/5000 | 2000 | 5000 | 4000 | 320 | 200 | 460 | 11 | 5000*1950*3000 |
| 200T/6000 | 2000 | 6000 | 5000 | 320 | 200 | 460 | 11 | 6000*1950*3300 |
| 250T/3200 | 2500 | 3200 | 2500 | 400 | 250 | 590 | 18.5 | 3200*2000*3200 |
| 250T/4000 | 2500 | 4000 | 3000 | 400 | 250 | 590 | 18.5 | 4000*2000*3400 |
| 250T/5000 | 2500 | 5000 | 4000 | 400 | 250 | 590 | 18.5 | 5000*2000*3400 |
| 250T/6000 | 2500 | 6000 | 5000 | 400 | 250 | 590 | 18.5 | 6000*2000*3400 |
| 300T/3200 | 3000 | 3200 | 2530 | 400 | 250 | 590 | 22 | 3200*2000*3450 |
| 300T/4000 | 3000 | 4000 | 3000 | 400 | 250 | 590 | 22 | 4000*2000*3450 |
| 300T/5000 | 3000 | 5000 | 4000 | 400 | 250 | 590 | 22 | 5000*2000*3450 |
| 300T/6000 | 3000 | 6000 | 5000 | 400 | 250 | 590 | 22 | 6000*2000*3450 |
| 400T/4000 | 4000 | 4000 | 3000 | 400 | 250 | 590 | 30 | 4000*2180*3400 |
| 400T/5000 | 4000 | 5000 | 4000 | 400 | 250 | 590 | 30 | 5000*2180*3500 |
| 400T/6000 | 4000 | 6000 | 5000 | 400 | 250 | 590 | 30 | 6000*2180*3800 |
| 500T/5000 | 5000 | 5000 | 4000 | 400 | 250 | 590 | 45 | 5000*3500*3700 |
| 500T/6000 | 5000 | 6000 | 5000 | 400 | 320 | 590 | 45 | 6000*3500*3700 |
| 600T/4000 | 6000 | 4000 | 3000 | 400 | 320 | 590 | 55 | 4000*4500*3700 |
| 600T/6000 | 6000 | 6000 | 5000 | 400 | 320 | 590 | 55 | 6000*4500*3700 |
| 800T/6000 | 8000 | 6000 | 5000 | 400 | 320 | 590 | 55 | 6000*4500*6000 |
