• Model NO.：HPB 30T1200
• Type：Press Brake

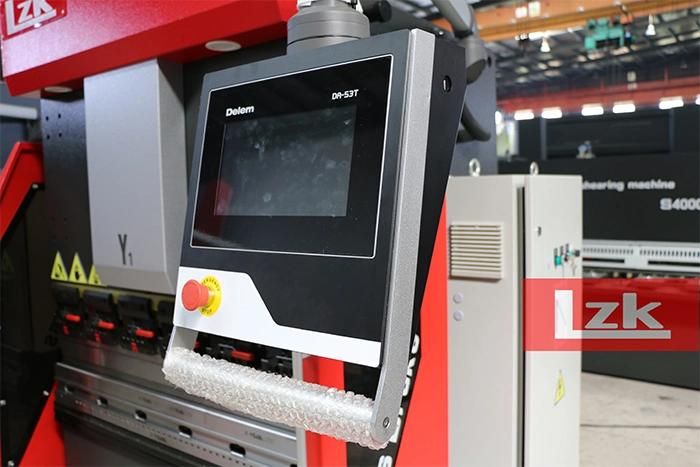

• System：Da53t

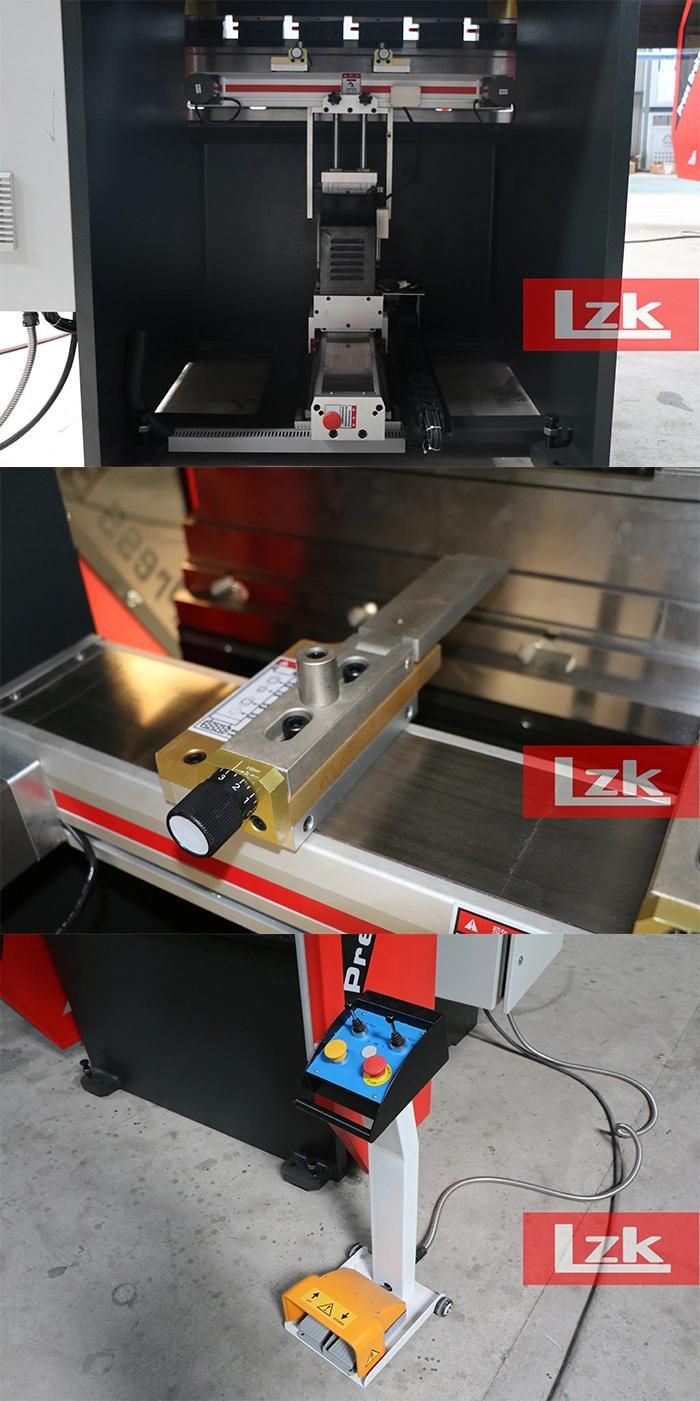

• Backgauge：500mm Distance, Ball Screw, Linear Guide Rail
• Bending Angle Programmed：Yes
• Max Bending Thickness：4mm
• Max Bending Legnth：1000mm

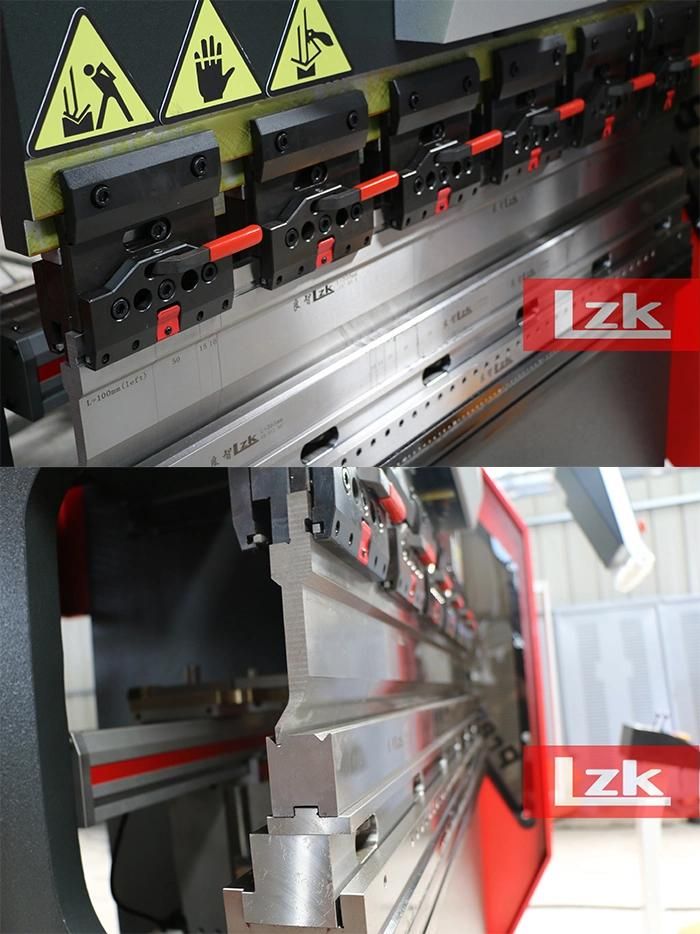

• Clamping System：Quick Clamp
• Main Motor：Siemens

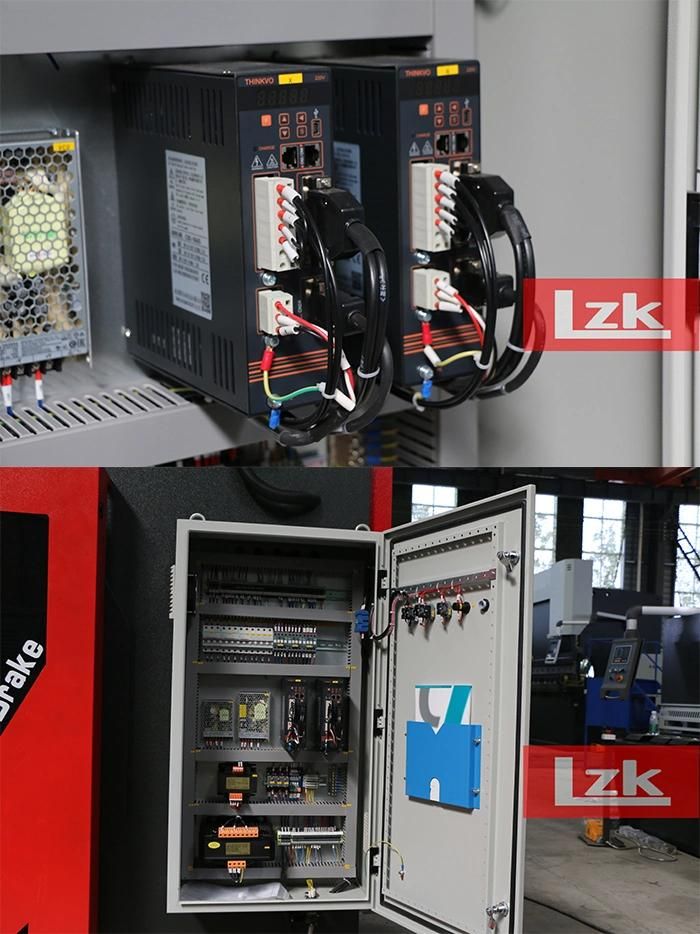

• Electrical Components：Schneider
• Hydraulic Valve：Rexroth
• Weight：2500kg
• Transport Package：20gp
• Specification：1200X1300X1750mm
• Trademark：LZK
• Origin：China
• HS Code：8462219000
• Production Capacity：100 Sets,Month

Energy saving type cnc press brake with main motor as servo motor. 1. The electro-hydraulic servo CNC bending machine adopts a hydraulic convex automatic compensation system to solve the influence of the deformation of the slider during the bending process on the quality of the workpiece. The amount of compensation is automatically adjusted by the CNC system, which is convenient and accurate.2. The electro-hydraulic servo CNC bending machine adopts a full-featured back gauge mechanism, which can choose to control multiple back gauge shafts. Functional parts in the backgauge. Imported originals such as guide rails, screws and bearings are used to ensure the accuracy of the back gauge.3. The body of the electro-hydraulic servo CNC bending machine adopts an integral welding structure, which is convenient for transportation and processing, and can ensure the accuracy of the machine.
