• Model NO.：GM-SB-76CNC
• Suitable for：Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
• Type：Pipe and Tube Bending Machine
• Applicable Pipe Shape：Round, Rectangle, Square, Oval, Solid Bar, Profile
• Technical：Draw Bending,Drawing Bending+Booster,Rolling
• Optional Function：Manual Feeding or Manual Rotating
• Bending Theory：Cold Bending
• Transport Package：Iron Frame
• Specification：CE
• Trademark：GMACC
• Origin：China
• HS Code：8462219000
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. GM-SB-76CNC Suitable for Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel Type Pipe and Tube Bending Machine Applicable Pipe Shape Round, Rectangle, Square, Oval, Solid Bar, Profile Technical Draw Bending/Drawing Bending+Booster/Rolling Optional Function Manual Feeding or Manual Rotating Bending Theory Cold Bending Transport Package Iron Frame Specification CE Trademark GMACC Origin China HS Code 8462219000 Production Capacity 5000PCS/Year

Product Description

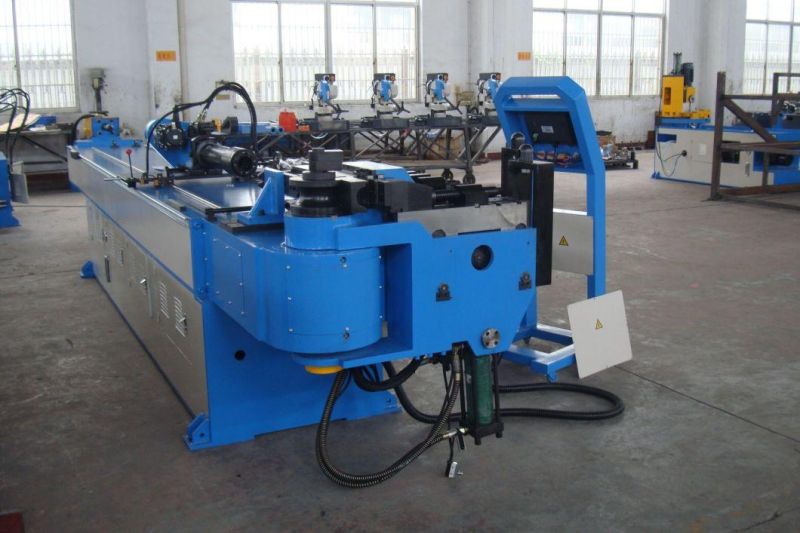

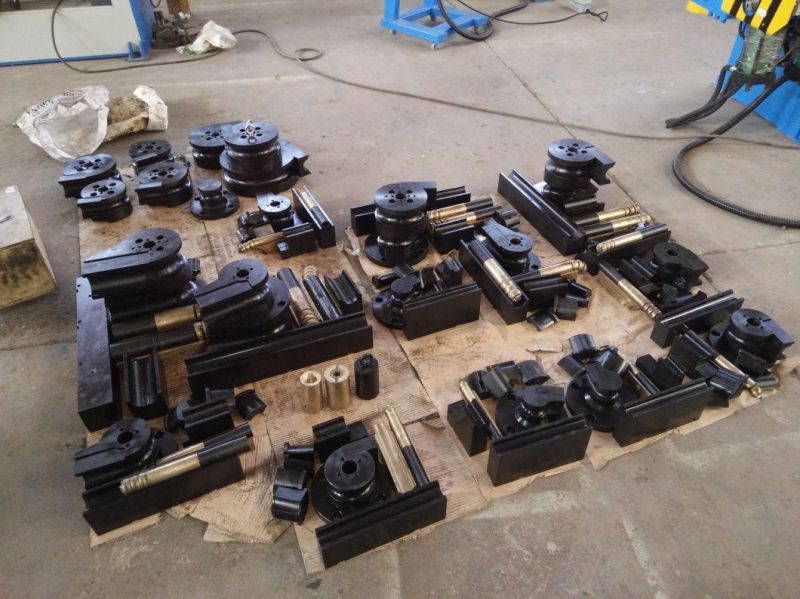

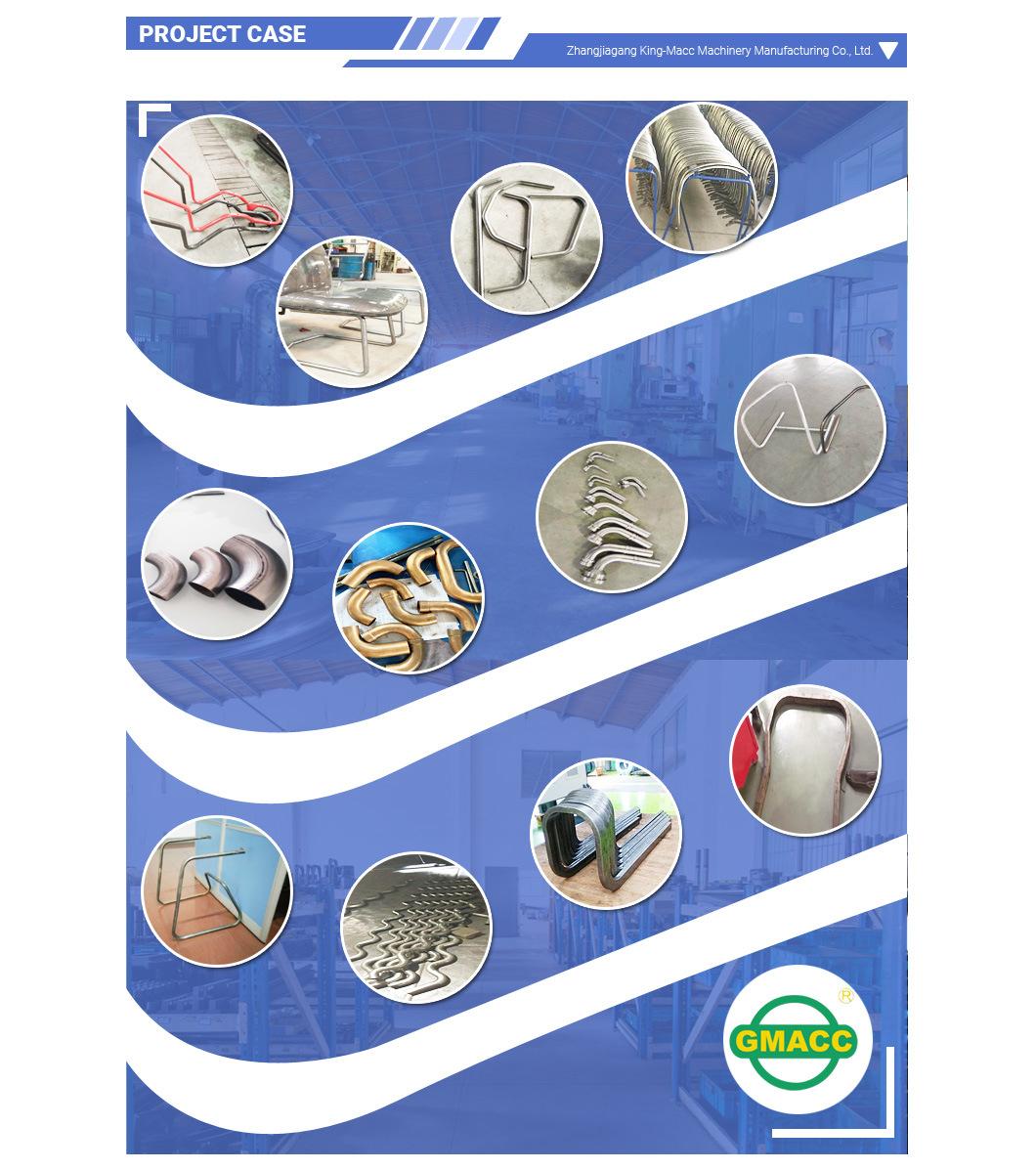

GM-SB-76CNC Full-Auto Numerical Control

Model:76×2A×1S

• Machine Characteristics

GM-SB-76CNC Series numerical control single-head pipe bending machine is the product from the combination with our technology and advanced Italian technology, integrated with machine, hydraulic, and electricity. This series adopt VDU touch screen operating panel, which can input, store, and display various bending data and order,Y, B, C three coordinates of motions under precision control by industrial computer can realize full-auto mandrel on or mandrel off rapid bending, CNC machine also with advanced functions, such as components bending spring back compensation, errors self diagnose alarm, memory store after power off, automatic lubrication and safety protection.

• Main Technical Parameter

Name	Unit	Parameter
Mild steel round tube	mm	¢76*4
Stainless Steel	mm	¢76*3
Light alloy annealed round tube	mm	¢76*6
Mild steel square tube	mm	60*60*3
Mild steel rectangular tube	mm	65*55*3
Mild steel round solid bar	mm	¢35
Mild steel square solid bar	mm	30*30
Min. bending radius	mm	30
Max. Bending radius(Standard)	mm	350
Head overhang (on bending centre)	mm	600
Head height (on bending centre)	mm	580
Bending centre height (from floor)	mm	1060
Max. bar passage inside the P.O.B. positionner	mm	50
Clamping adjustable stroke	mm	0-136
Shouldering adjustable stroke	mm	300
Mandrel retraction adjustable stroke	mm	0-136
Max. Bending Angle	°	190°
Through Effective Distance	mm	4000
Bending Speed(Max.)	°/sec	30
Max. rotation speed (axis Z)	°/sec	160
Max. feeding speed (axis X.)	mm/sec	800
Bending angle Precision	°	±0.10
Rotation angle Precision - axis Z	°	±0.10
Shifting Precision - axis X	mm	±0.10
Rotation Servo Motor Power	KW	1.5
Feeding Servo Motor Power	KW	1.5
System Motor Power	KW	7.5
Hydraulic Pump Volume	L	23
Max. Pressure	Mpa	16
L*W*H (Packaging Dimension)	mm	5000*1200*1350
Machine Weight	T	ABOUT 3.5



• Configuration of Hydraulic and Electronic Control System

Name	Manufacturer
Hydraulic Motor	Germany Siemens(Beide)or Suzhou Jialifan
Hydraulic Pump	Wuxi Tuoli
Hydraulic Valve	Japan Yuken(Imported)
Oil way Board	Taiwan Shanghong (Imported)
Cylinder	Shanghai Qifan
Touch screen	Taiwan Weinview(Imported)
PLC	Japan Mitsubishi(Imported)
Servo Motor	Japan Mitsubishi(Imported)
Angle controller	Japan Nemicon(Imported)
Transformer	Wuxi Xinyu
Other Electric Parts	German SCHNEIDER,Omron, Taiwan SHILIN(Imported)
