Hydraulic Shearing Machine Hydraulic Cutting Machine
Shaanxi HAVEN Equipment Co., Ltd.- Condition:New
- Certification:ISO 9001:2000, ISO 9001:2008, CE
- Automation:Semi-Automatic
- Suitable for:Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
- Blade Clearance Adjusted by Hydraulic:Cutting Angle Adjusted by Motor
- Control system:E21S
Base Info
- Model NO.:QC11Y-16X6100
- Cutting thickness:16mm
- Cutting width:6100mm
- Cutting type:guillotine type
- Transport Package:Plastic Covering
- Specification:16X6100
- Trademark:HAVEN
- Origin:China
- HS Code:8462
- Production Capacity:30 Units,Month
Description
Basic Info.
Model NO. QC11Y-16X6100 Cutting thickness 16mm Cutting width 6100mm Cutting type guillotine type Transport Package Plastic Covering Specification 16X6100 Trademark HAVEN Origin China HS Code 8462 Production Capacity 30 Units/MonthProduct Description

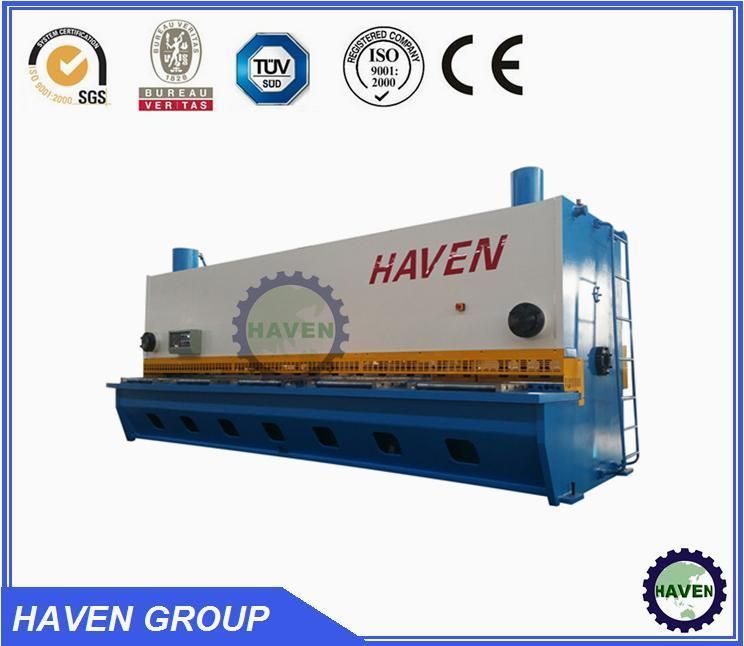

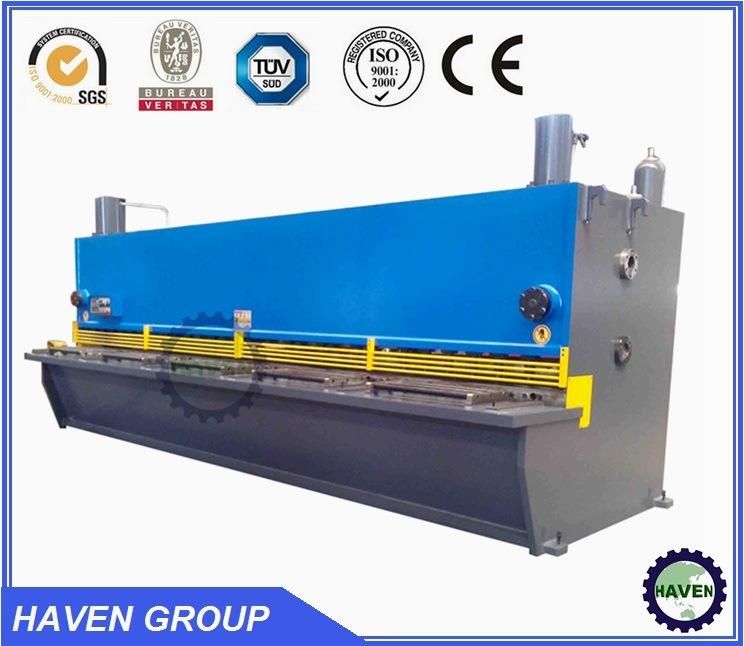

Hydraulic Shearing Machine Hydraulic Cutting MachineMain functions:
1. The machine frame welded construction with steel plate, and stress is eliminated by vibration. with high strength, stable performance, easy operation.

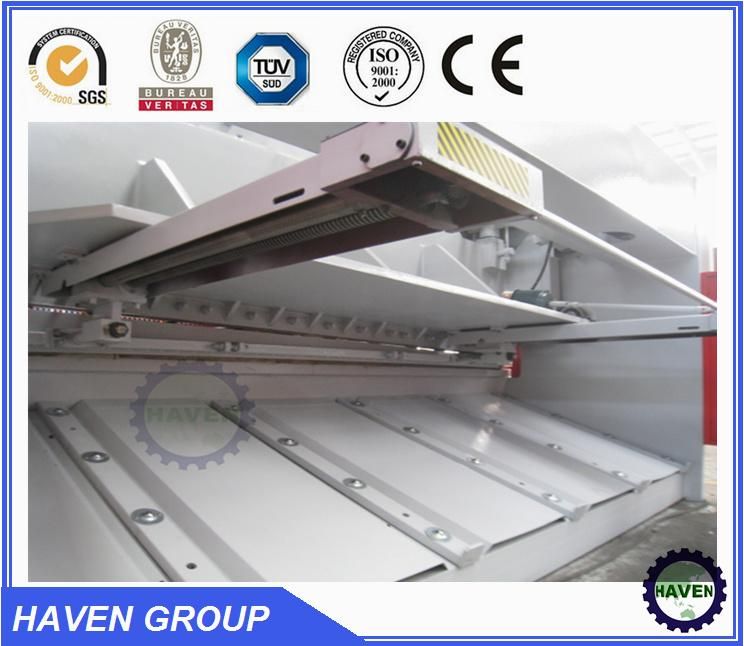

2. As the cutting beam of machine has been designed in inner-inclined structure, it is easy for plates to fall down and the accuracy of products can also be guaranteed.
3. With the help of hydraulic drive, swing beam, return of knife beam is smooth and prompt by accumulator ( Nitrogen cylinder ).
4. Stepless adjusting is available for the stroke of knife beam for different length plate shearing.
5. The position of low blade is adjustable, thus ensuring the equilibrium of the gap between blades after regrinding.

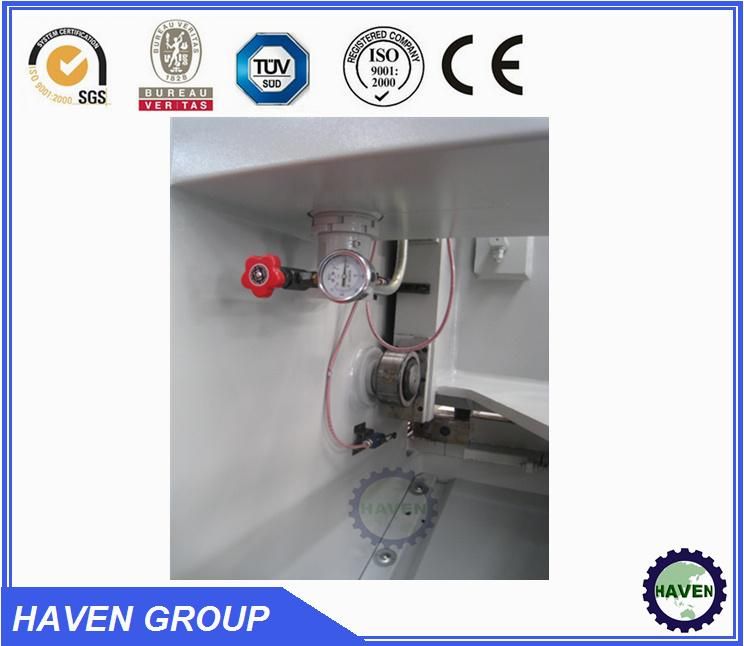

6. It is easy and quick to adjust the gap between blades. The value of the gap is indicated on a dial.

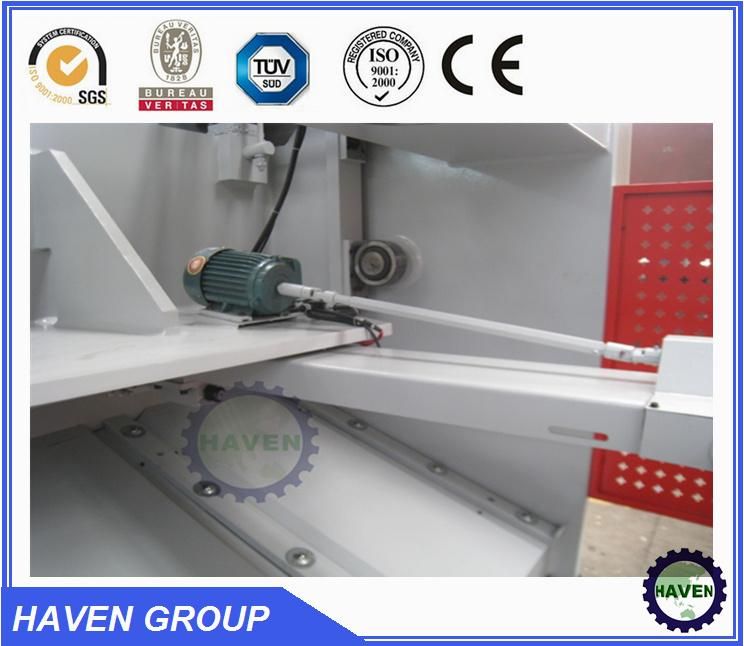

7. Motorized adjusting and manual adjusting for the back gauge.
Main specification:
Model | Mild Steel (450MPA) | Cutting Length(mm) | Depth Of Throat(mm) | Back Gauge Range(mm) | Rake Angle Adjustment | Strokes Per Minute | Main Motor | L× W× H(mm) | Weight(t) |
4× 2000 | 4 | 2000 | 80 | 750 | 0.5° -2° | 14 | 5.5 | 2600× 1680× 1750 | 3.8 |
4× 2500 | 4 | 2000 | 80 | 750 | 0.5° -2° | 14 | 5.5 | 3125× 1750× 1765 | 4.5 |
6× 2500 | 6 | 2500 | 80 | 750 | 0.5° -1° 30′ | 14 | 7.5 | 3100× 1725× 1900 | 5.3 |
6× 3200 | 6 | 3200 | 80 | 750 | 0.5° -1° 30′ | 12 | 7.5 | 3935× 1840× 1995 | 6.5 |
6× 4000 | 6 | 4000 | 80 | 750 | 0.5° -1° 30′ | 10 | 7.5 | 4650× 1840× 2100 | 8.5 |
6× 5000 | 6 | 5000 | 80 | 750 | 0.5° -1° 30′ | 8 | 7.5 | 5650× 2050× 2400 | 10.5 |
6× 6000 | 6 | 6000 | 80 | 750 | 0.5° -1° 30′ | 8 | 7.5 | 6650× 1980× 2380 | 15.2 |
8× 2500 | 8 | 6000 | 80 | 750 | 0.5° -1° 30′ | 14 | 7.5 | 3135× 1840× 2075 | 6 |
8× 3200 | 8 | 3200 | 80 | 750 | 0.5° -1° 30′ | 12 | 7.5 | 3850× 1990× 2050 | 6.8 |
8× 4000 | 8 | 4000 | 80 | 750 | 0.5° -1° 30′ | 10 | 7.5 | 4650× 1890× 2075 | 9 |
8× 5000 | 8 | 5000 | 80 | 750 | 0.5° -2° | 7 | 15 | 5650× 2050× 2400 | 12.5 |
8× 6000 | 8 | 6000 | 100 | 750 | 0.5° -2° | 7 | 15 | 6805× 2115× 2715 | 19.8 |
10× 2500 | 10 | 2500 | 100 | 750 | 0.5° -2° 30′ | 10 | 15 | 3195× 1915× 2205 | 8 |
10× 3200 | 10 | 3200 | 100 | 750 | 0.5° -2° 30′ | 8 | 15 | 3895× 1900× 2235 | 8.8 |
10× 4000 | 10 | 4000 | 100 | 750 | 0.5° -2° 30′ | 6 | 15 | 4695× 1970× 2270 | 9.15 |
10× 5000 | 10 | 5000 | 100 | 750 | 0.5° -2° 30′ | 5 | 15 | 5700× 2115× 2715 | 16 |
10× 6000 | 10 | 6000 | 100 | 750 | 0.5° -2° 30′ | 5 | 15 | 6905× 2115× 2800 | 22 |
12× 2500 | 12 | 2500 | 100 | 750 | 0.5° -2° 30′ | 10 | 15 | 3195× 2000× 2210 | 8.3 |
12× 3200 | 12 | 3200 | 100 | 750 | 0.5° -2° 30′ | 8 | 15 | 3895× 1950× 2240 | 9.2 |
12× 4000 | 12 | 4000 | 100 | 750 | 0.5° -2° 30′ | 5 | 15 | 4710× 1950× 2450 | 13 |
12× 5000 | 12 | 5000 | 100 | 750 | 0.5° -2° 30′ | 5 | 18.5 | 5750× 2115× 2800 | 20 |
12× 6000 | 12 | 6000 | 100 | 750 | 0.5° -2° 30′ | 5 | 18.5 | 7150× 2300× 3100 | 29 |
16× 2500 | 16 | 2500 | 100 | 750 | 0.5° -2° 30′ | 8 | 15 | 3215× 1970× 2340 | 8.7 |
16× 3200 | 16 | 3200 | 100 | 750 | 0.5° -2° 30′ | 7 | 15 | 3915× 1970× 2455 | 11 |
16× 4000 | 16 | 4000 | 100 | 750 | 0.5° -2° 30′ | 6 | 15 | 4715× 2010× 2590 | 15 |
16× 5000 | 16 | 5000 | 100 | 750 | 0.5° -3° | 5 | 22 | 6000× 2300× 3000 | 23 |
16× 6100 | 16 | 6100 | 80 | 750 | 0.5° -3° | 5 | 37 | 7250× 2400× 3100 | 36 |
20× 2500 | 20 | 2500 | 100 | 750 | 0.5° -3° | 6 | 22 | 3235× 2020× 2465 | 10.5 |
20× 3200 | 20 | 3200 | 120 | 750 | 0.5° -3° | 5 | 30 | 4150× 2065× 2755 | 18 |
20× 4000 | 20 | 4000 | 120 | 750 | 0.5° -3° | 4 | 30 | 4955× 2125× 2885 | 21 |
20× 5000 | 20 | 5000 | 120 | 750 | 0.5° -3° | 4 | 37 | 6000× 2300× 3050 | 29 |
25× 2500 | 25 | 2500 | 120 | 750 | 0.5° -3.5° | 5 | 37 | 3465× 2130× 2710 | 15 |
25× 3200 | 25 | 3200 | 120 | 750 | 0.5° -3.5° | 5 | 37 | 4120× 2200× 3000 | 21 |
25× 4000 | 25 | 4000 | 120 | 750 | 0.5° -3.5° | 4 | 37 | 4950× 2200× 3150 | 26 |
30× 2500 | 30 | 2500 | 120 | 750 | 0.5° -3.5° | 4 | 37 | 3465× 2170× 2770 | 16 |
30× 3200 | 30 | 3200 | 120 | 750 | 1° -3.5° | 3 | 37 | 4200× 2300× 3200 | 23 |
