Carton Sample Oscillating Flatbed Cutter
Shanghai Xinao Technology Co., Ltd.- Warranty:1-year
- Certification:CE, ISO 9001:2000
- Condition:New
- Control:Automatic
- Application:Paper, Plastic
- Power Source:Electric
Base Info
- Model NO.:DCZ702516, DCZ701713, DCZ701310
- Transport Package:Wooden Box
- Specification:ISO9001, 2000
- Trademark:AOKE
- Origin:China
- Production Capacity:60 Sets,Month
Description
Basic Info.
Model NO. DCZ702516, DCZ701713, DCZ701310 Transport Package Wooden Box Specification ISO9001, 2000 Trademark AOKE Origin China Production Capacity 60 Sets/MonthProduct Description

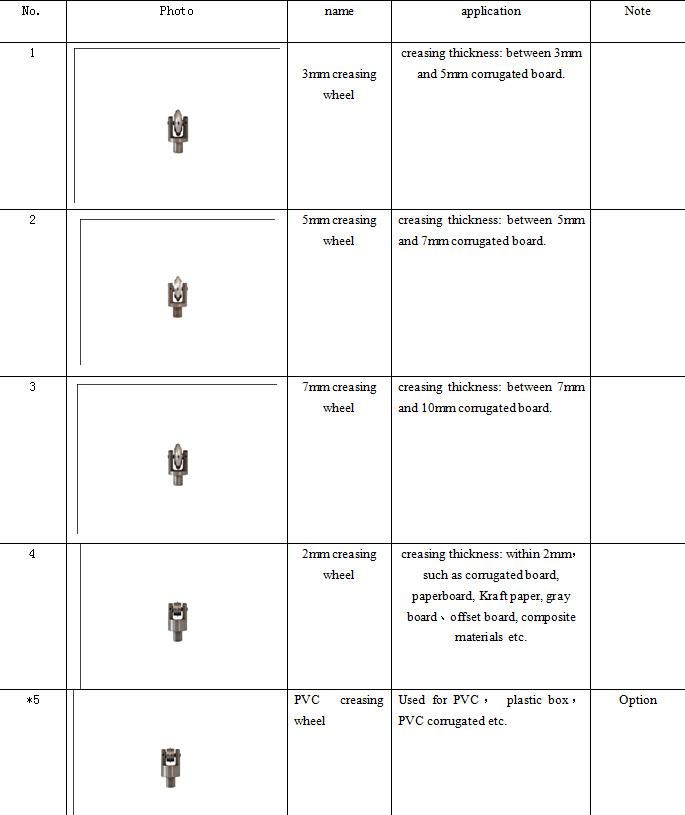

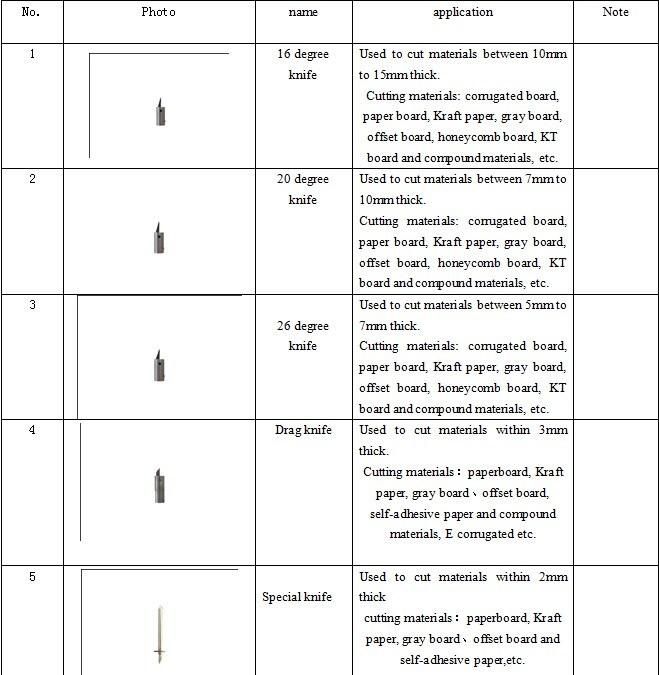

1. Oscillating cutting function: Cut a variety of materials(corrugated board, cloth, paper board, fiber board, plastic board, ect)2. Creasing&folding function: Satisfied creasing line available on corrugated board, craft paper, plastic board, etc.
3. Dotted line cutting function: Dotted line cutting available on different materials for folding
4. Half cutting function: Half cutting available for folding on different materials
5. Drawing function: High precision drawings available
6. Position resgistration system: Position resgistration available by laser light

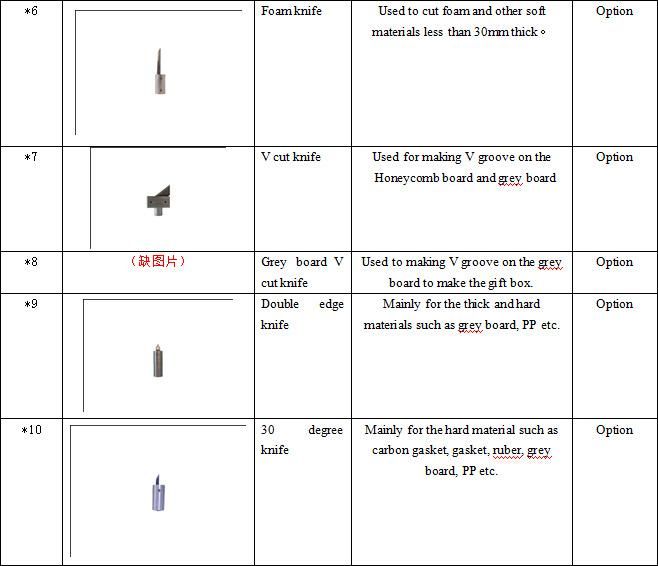

7. Two changing tools avaible, whole connected machine head, convinient to change cutting tools.
8. Four spindles high speed controller, modularizing install, convinient for maintenance
9. Cutting depth could be adjusted automatically
10. Parametre setting is easy, different materials could be processed after the cutting thickness and cutting speed are set well
Max speed: 1350mm/s
Max cutting thickness: 15mm
Min cutting diameter: 6mm
Overlapping precision: ≤ 0.1mm
Vacuum: 5.5KW
Control&driver: Servo motor
Data port: ISA port
Input cushion: 32MB
Data form: HPGL
Data transfer speed: 10MB/S
Voltage: 220v± 10%50Hz
