Mechanical Panel Bending Machine
Shanghai Zhengzhuo Machinery Manufacturing Co., Ltd.- Warranty：1-year
- Condition：New
- Certification：ISO 9001: 2000
- Automation：Automatic
- Place of Origin：China
- Model Number：Zzcpj1600
Base Info
- Model NO.：ZZCPJ
- Machine Type：Motor
- Raw Material：Steel
- Material / Metal Processed：Carbon Steel
- Power：Motor
- Origin：China,Shanghai
Description
Basic Info.
Model NO. ZZCPJ Machine Type Motor Raw Material Steel Material / Metal Processed Carbon Steel Power Motor Origin China/ShanghaiProduct Description

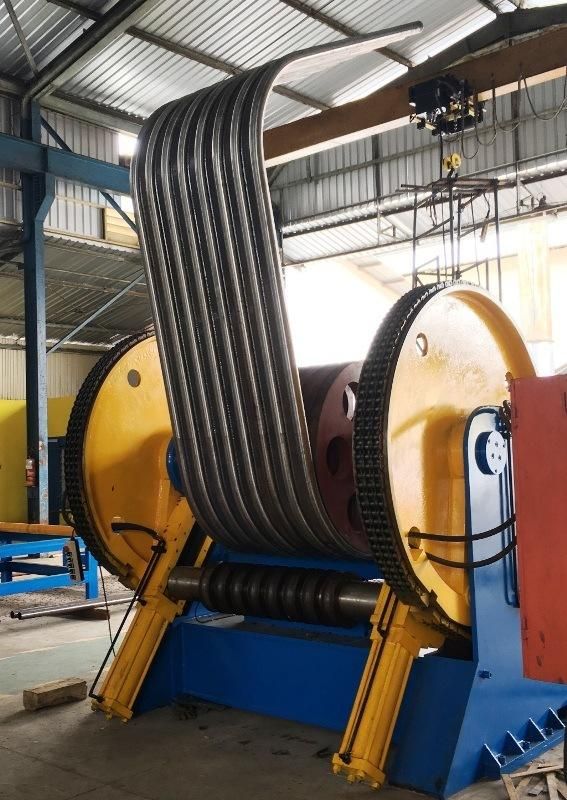

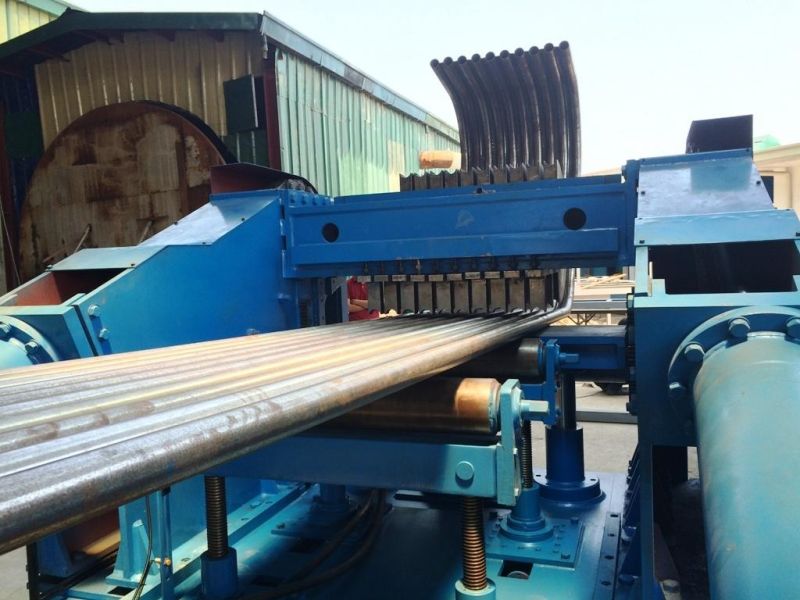

Bending the welded tube panel into the required size, motor as power, with the advantages of simple structure, ease of operation.
According to the tube size, angle and panel width required ZZ's panel bender can again be custom built to meet your requirement., ZZ also manufacture the panel bender in conventional mechanical system or in hydraulic which is capable of bending tube size of up to 89mm.
| Tube diameter | Φ28~Φ63mm |
| Maximum width of pipe panel | 1600mm |
| Maximum clamp power | 2 T |
| Largest bending angle | α = 150 ° |
| Bending radius | R = 180 ~ 450mm |
| Bending speed | ≈ 0.26r/min |
| Motor | 7.5kw |
