• Model NO.：DW89NC
• Type：Pipe and Tube Bending Machine
• Transport Package：Iron Case
• Specification：DW89NC
• Trademark：HAVEN
• Origin：China
• HS Code：8462
• Production Capacity：40 Units,Month

Basic Info.

Model NO. DW89NC Type Pipe and Tube Bending Machine Transport Package Iron Case Specification DW89NC Trademark HAVEN Origin China HS Code 8462 Production Capacity 40 Units/Month

Product Description

                                          Single Head Hydraulic Pipe Bending Machine
Main Characters:
1. Operate by NC control unit, imported electric and hydraulic elements.
2. English showing and conversational operation.
3. It can adjust speed in each bend and the bending precision is high
4. 16 groups of bending information can be stored. Multiple angles can be finished once.
5. The foot switches with functions of automatic start, emergency stop and resuming. The safety is high.
6. Delicate design of the bending head makes the bending space large.
7. Suitable Materials: Steel pipe, stainless steel pipe, copper pipe, aluminum pipe and others.

Main Specification:
The  Minimum  bending  diameter  based  on the  pipe  diameter
The  Max  bending  diameter  can  according to  the  customer' s  requirement
The  Max  length  of  mandrel  can  according to  customer' s  requirement

Model	Unit	DW38NC
Max  bending  capability(OD)	mm	Φ 38× 2
Max  bending  radius	mm	R260
Min  bending  radius	mm	According  to  the  pipe  diameter
Max  bending  angle	Degree	190
Max  effective  distance  of  mandrel	mm	1600
Control  System		NC  Control
Max  elbow  bend  pipe	Unit	16
Max  storable  sections	Unit	16× 16
Motor  power	KW	4
Max.   Hydraulic  Pressure	Mpa	12
Hydraulic  System  Control		Electromagnetic  Valve
Oil  Tank  Capacity	L	110
Measurement	mm	3300×800×1430
Weight  of  Machine	Kg	1000

Model	Unit	DW50NC
Max  bending  capability(OD)	mm	Φ 50× 3
Max  bending  radius	mm	R350
Min  bending  radius	mm	According  to  the  pipe  diameter
Max  bending  angle	Degree	190
Max  effective  distance  of  mandrel	mm	2200
Control  System		NC  Control
Max  elbow  bend  pipe	Unit	16
Max  storable  sections	Unit	16× 16
Motor  power	KW	5.5
Max.   Hydraulic  Pressure	Mpa	12
Hydraulic  System  Control		Electromagnetic  Valve
Oil  Tank  Capacity	L	150
Measurement	mm	3100×1000×1250
Weight  of  Machine	Kg	1220

Model	Unit	DW63NC
Max  bending  capability(OD)	mm	Φ 63× 4
Max  bending  radius	mm	R350
Min  bending  radius	mm	According  to  the  pipe  diameter
Max  bending  angle	Degree	190
Max  effective  distance  of  mandrel	mm	2600
Control  System		NC  Control
Max  elbow  bend  pipe	Unit	16
Max  storable  sections	Unit	16× 16
Motor  power	KW	5.5
Hydraulic  System  Control		Electromagnetic  Valve
Oil  Tank  Capacity	L	220
Measurement	mm	3500×750×1100
Weight  of  Machine	Kg	1500

Model	Unit	DW75NC
Max  bending  capability(OD)	mm	Φ 75× 4
Max  bending  radius	mm	R400
Min  bending  radius	mm	According  to  the  pipe  diameter
Max  bending  angle	Degree	190
Max  effective  distance  of  mandrel	mm	2800
Control  System		NC  Control
Max  elbow  bend  pipe	Unit	16
Max  storable  sections	Unit	16× 16
Motor  power	KW	7.5
Max.   Hydraulic  Pressure	Mpa	12
Hydraulic  System  Control		Electromagnetic  Valve
Oil  Tank  Capacity	L	250
Measurement	mm	4000×1000×1100
Weight  of  Machine	Kg	2000

Model	Unit	DW89NC
Max  bending  capability(OD)	mm	Φ 89× 8
Max  bending  radius	mm	R450
Min  bending  radius	mm	According  to  the  pipe  diameter
Max  bending  angle	Degree	190
Max  effective  distance  of  mandrel	mm	3500
Control  System		NC  Control
Max  elbow  bend  pipe	Unit	16
Max  storable  sections	Unit	16× 16
Motor  power	KW	11
Max.   Hydraulic  Pressure	Mpa	14
Hydraulic  System  Control		Electromagnetic  Valve
Oil  Tank  Capacity	L	260
Measurement	mm	4550×1300×1300
Weight  of  Machine	Kg	3500

Model	Unit	DW110NC
Max  bending  capability(OD)	mm	Φ 110× 8
Max  bending  radius	mm	R500
Min  bending  radius	mm	According  to  the  pipe  diameter
Max  bending  angle	Degree	190
Max  effective  distance  of  mandrel	mm	3700
Control  System		NC  Control
Max  elbow  bend  pipe	Unit	16
Max  storable  sections	Unit	16× 16
Motor  power	KW	15
Max.   Hydraulic  Pressure	Mpa	14
Hydraulic  System  Control		Electromagnetic  Valve
Oil  Tank  Capacity	L	320
Measurement	mm	5000x1600x1200
Weight  of  Machine	Kg	4500

Model	Unit	DW115NC
Max  bending  capability(OD)	mm	Φ 115X8
Max  bending  radius	mm	R520
Min  bending  radius	mm	According  to  the  pipe  diameter
Max  bending  angle	Degree	190
Max  effective  distance  of  mandrel	mm	4500
Control  System		NC  Control
Max  elbow  bend  pipe	Unit	16
Max  storable  sections	Unit	16× 16
Motor  power	KW	22
Max.   Hydraulic  Pressure	Mpa	14
Hydraulic  System  Control		Electromagnetic  Valve
Oil  Tank  Capacity	L	350
Measurement	mm	5600X1600X1200
Weight  of  Machine	Kg	7000

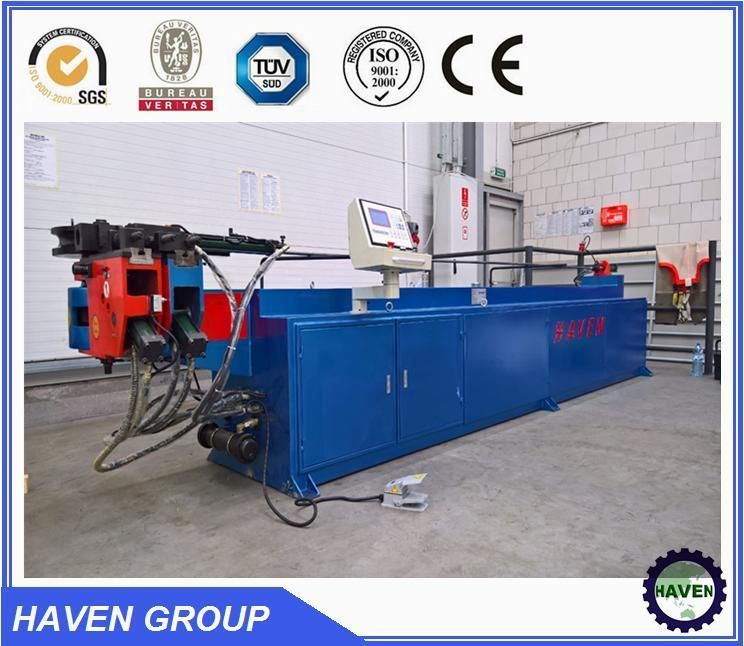

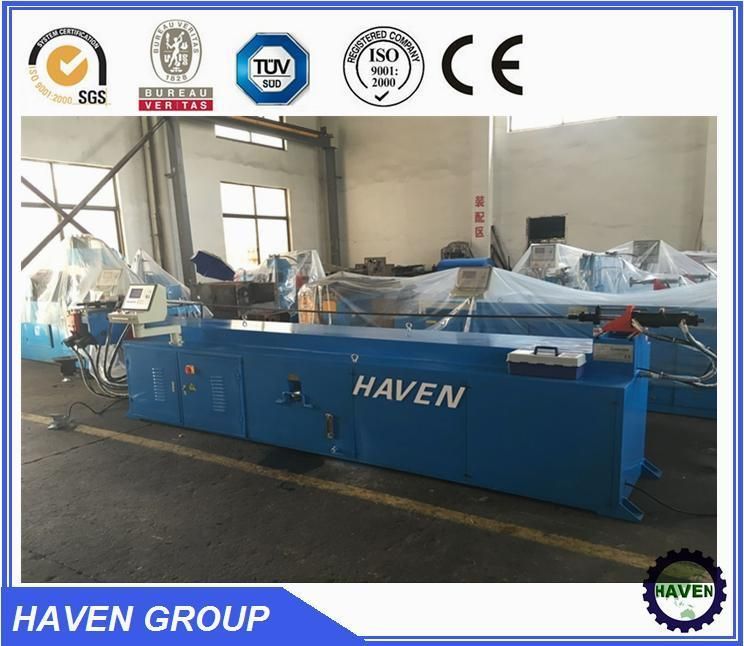

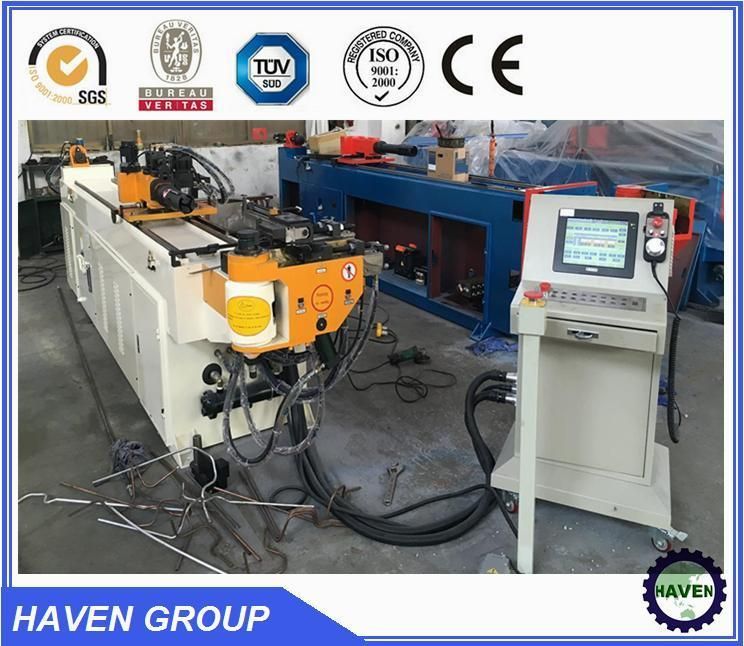

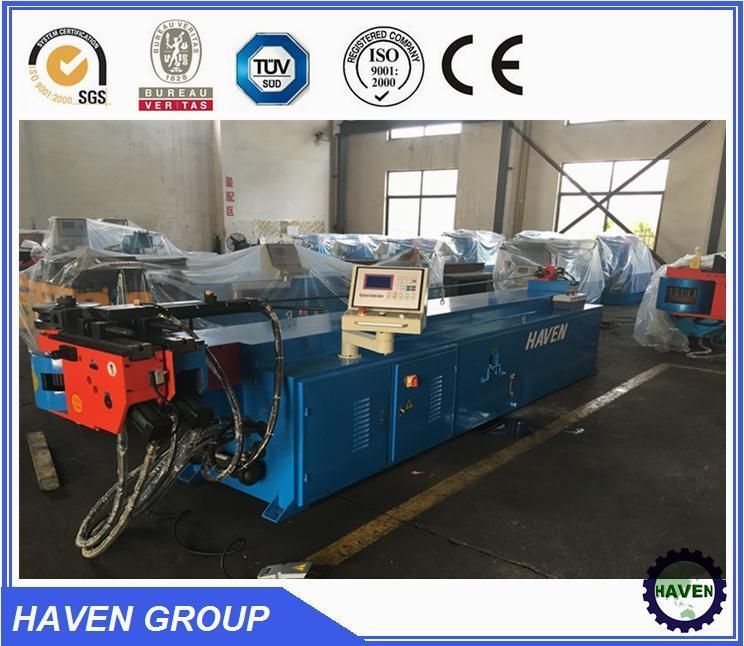

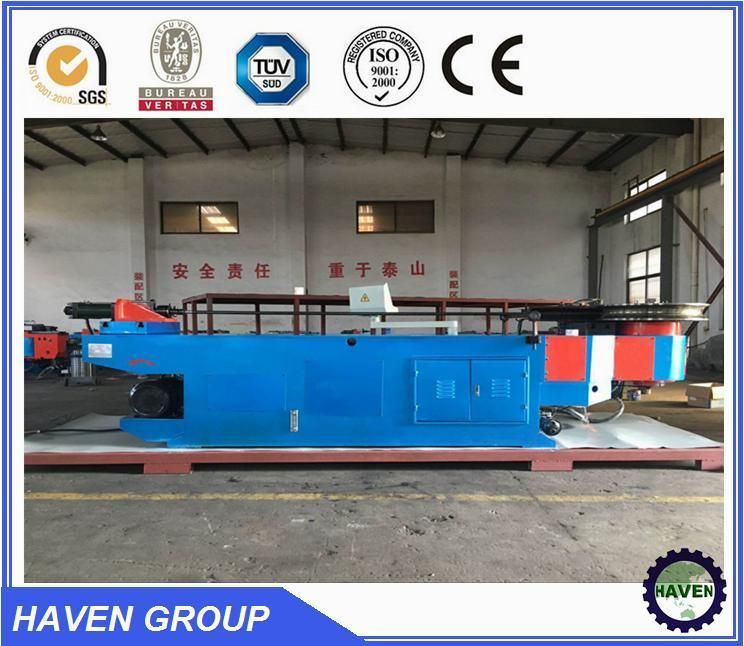

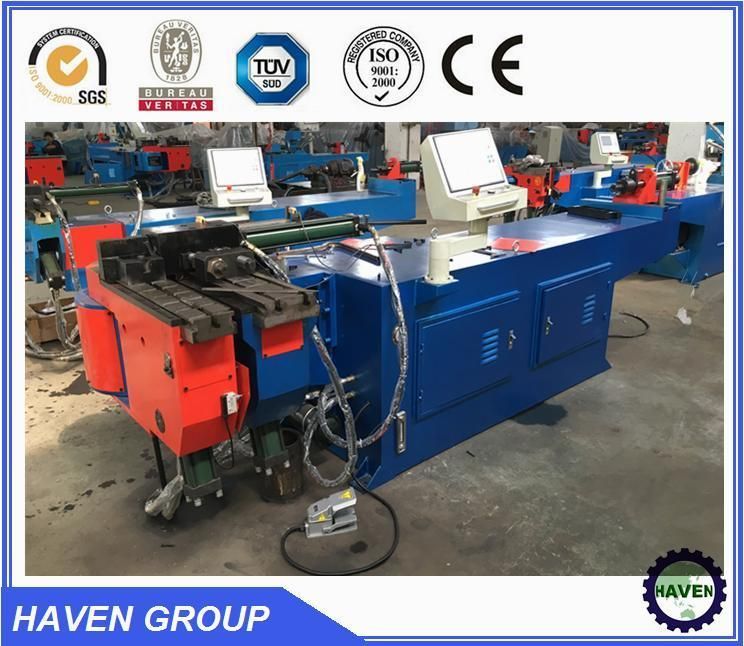

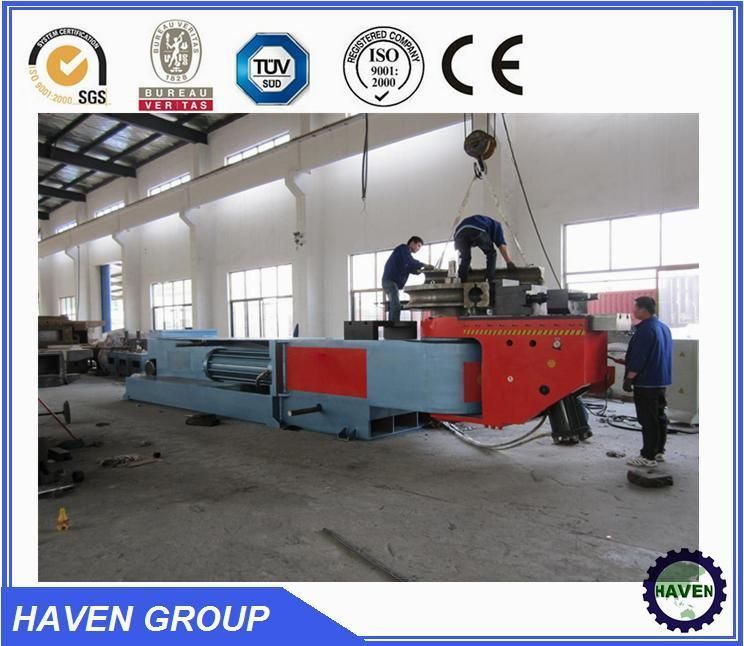

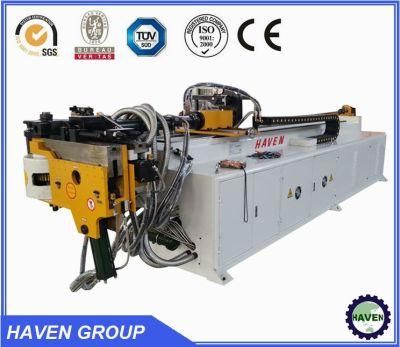

Machine photos:
