Ms-3A Gantry CNC Plasma and Oxy-Fuel Metal Plate Plasma Cutter Machine
Meisar Changzhou Intelligent Technology Co., Ltd.- After-sales Service:1 Year
- Warranty:1 Year
- Certification:CE, ISO 9001:2000
- Condition:New
- Control:Automatic
- Application:Metal
Base Info
- Model NO.:MS-3A
- Connected Shaft Number:4-Shaft
- Style:Gantry
- Type:CNC
- Transport Package:Wooden
- Specification:customized
- Trademark:Meisar
- Origin:China
- Production Capacity:400-500 Units,Year
Description
Technical Specification
Product Name
Gantry Flame and Plasma CNC Cutting Machine
Model
MS-3A

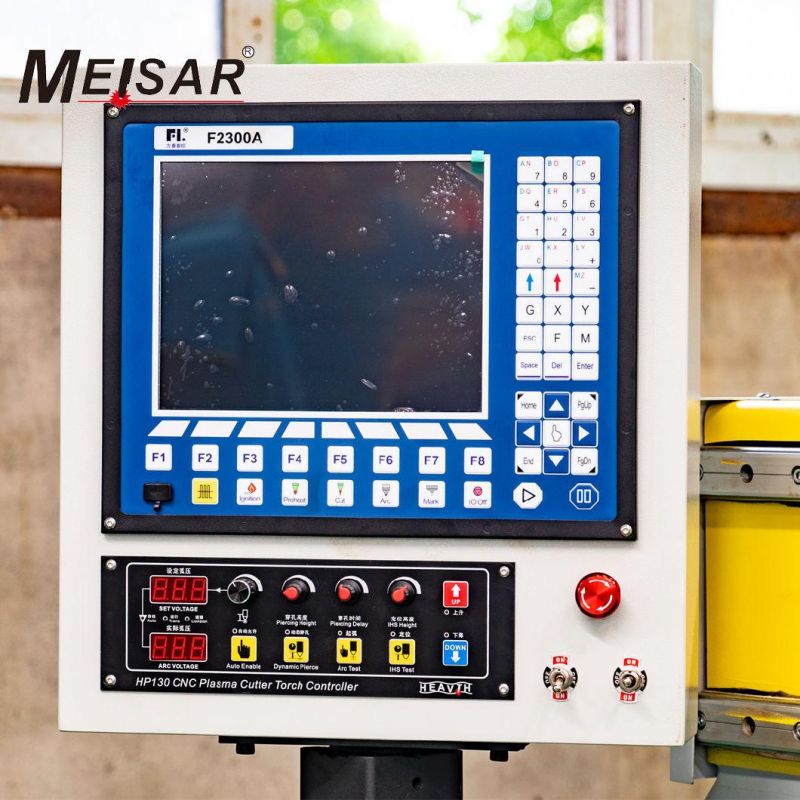

Control System
Motor
Stepper motor
Color
Red,Blue,Yellow.
Cutting Mode
Plasma Cutting+ Flame Cutting
Flame Cutting Gas
Oxygen with propane or acetylene
Plasma Torch Gas
Compressed air/N2/O2
Working Area
Cutting thickness
0-150mm
Cutting speed
0-15000mm/min
Operation precision
0.2mm/m
Main Features:
1.CNC gantry flame cutting is mainly suitable for cutting carbon steel within 5-200mm, and steel plates above 200mm require specific air valves; air pipes; and flame cutting torches
2.Flame cutting can realize automatic ignition device; it can greatly reduce the danger caused by industrial ignition and improve work efficiency;
3.Straight single cutting torch can perform high-precision cutting of 6-200mm carbon steel plates;
4.The straight flame cutting lifting device can manually adjust the cutting nozzle and steel plate scheduling manually;
5.Flame cutting gas source uses oxygen + gas (acetylene, industrial propane liquefied gas)
6.(Depending on the thickness of the steel plate; the size of the cutting nozzle used is different, see the flame and plasma reference table below for details)
