• Model NO.：WG series
• Usage：Processing All Kinds of Pipes
• Application：Amusement Equipment
• Voltage：380V or as Required
• Transport Package：Iron Shelf and Plywood
• Specification：size is different for different model
• Trademark：Hengyisheng
• Origin：Henan
• HS Code：8462219000
• Production Capacity：8000pieces,Year

Basic Info.

Model NO. WG series Usage Processing All Kinds of Pipes Application Amusement Equipment Voltage 380V or as Required Transport Package Iron Shelf and Plywood Specification size is different for different model Trademark Hengyisheng Origin Henan HS Code 8462219000 Production Capacity 8000pieces/Year

Product Description

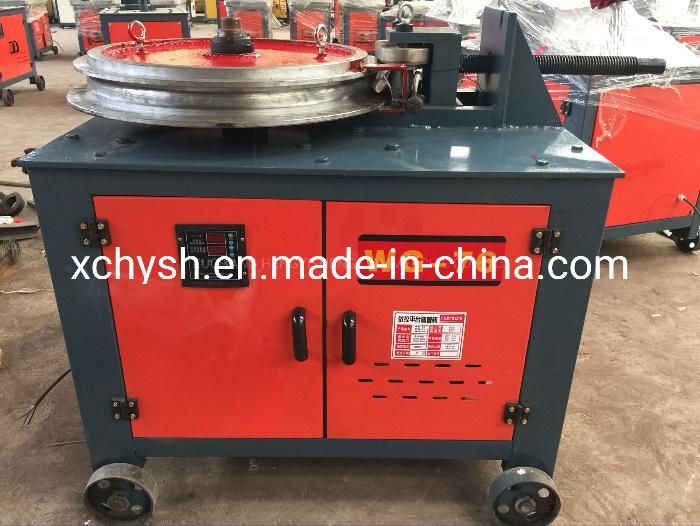

High Quality Automatic Hydraulic  Pipe Bender with Low Price
Main performance and features of pipe bending machine:

WG-38/51/76 CNC steel tube bending machine is mainly used for bending different kinds of tube materials, for example round or square mild carbon steel tube,201 or 304 stainless steel tube, rectangular steel tube, aluminum tube, cooper tube or other special shaped steel tube etc. And these machines can bend tubes into different angles from 5 to 180 degrees.
This model is our latest technical achievements of the research and development.

Having the following characteristics:
1. Use Micro CNC computer panel control the bending angles and batches.
2. Gear drive is durable and maintenance is convenient, only add grease oil into the gear box.
3. Both thin tube and thick tube are applicable by this machine.
4. Foot switch add CNC operation, make the processing of tube more convenient and quick.

Technical Parameters of steel tube bending machine:

Model	WG-26	WG-38	WG -51	WG-76
Bending diameter range	4-26mm (thickness:2mm)	4-38mm (thickness:2mm)	4-51mm (thickness:2-3mm)	4-76mm  (thickness:2-3mm)
Bending Speed	20°/sec	10-12r/min	4-6r/min	3-5r/min
Max Bending Angle	180	180	180	180
Min Bending Angle	5	5	5	5
Motor power	1.5kw	3kw-4	3kw-4	4kw-4
Power supply	380V,50HZ,3P	380V,50HZ,3P	380V,50HZ,3P	380V,50HZ,3P
Foot switch voltage	DC 5V	DC 5V	DC 5V	DC 5V
Overall dimension	800*650*900	900*800*1000	950*850*1000	1000*900*1100
Total weight	180kg	260kg	320kg	350kg

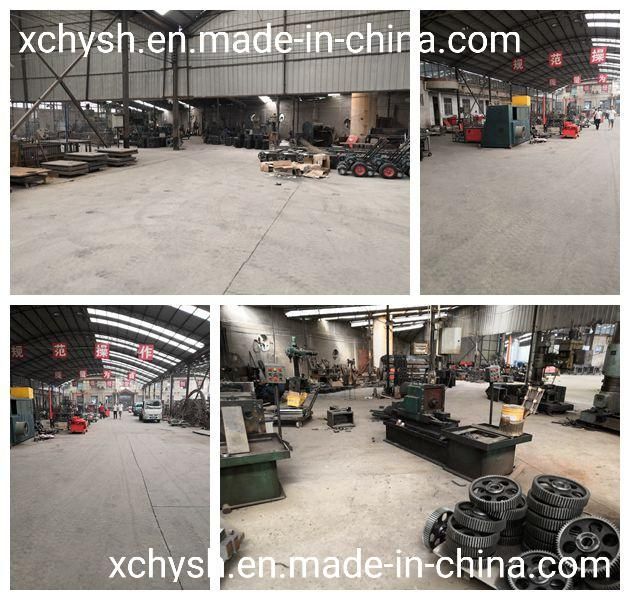

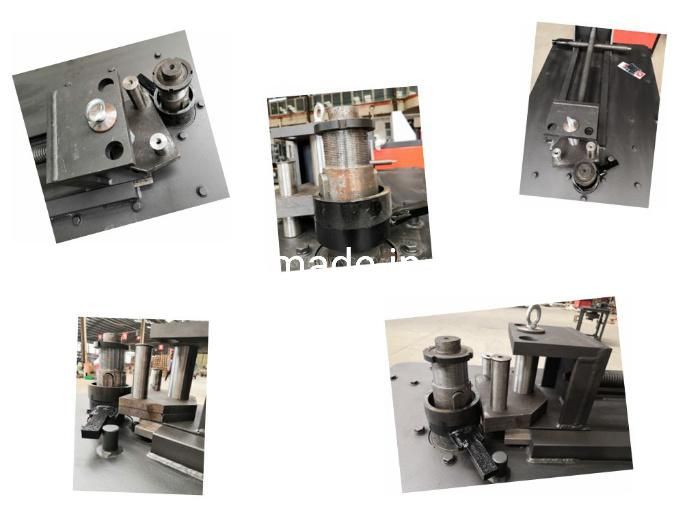

Our factory and product details:









FAQ:

1. What's your payment term?
Payment: 40% T/T in advance and balance 60% should be paid before shipment.

2. What's the delivery time?
It is based on order quantity. Normally, our production time is around 10 days after receiving the deposit. The delivery time from our factory to Qingdao port will be within 10 days after receiving full payment.

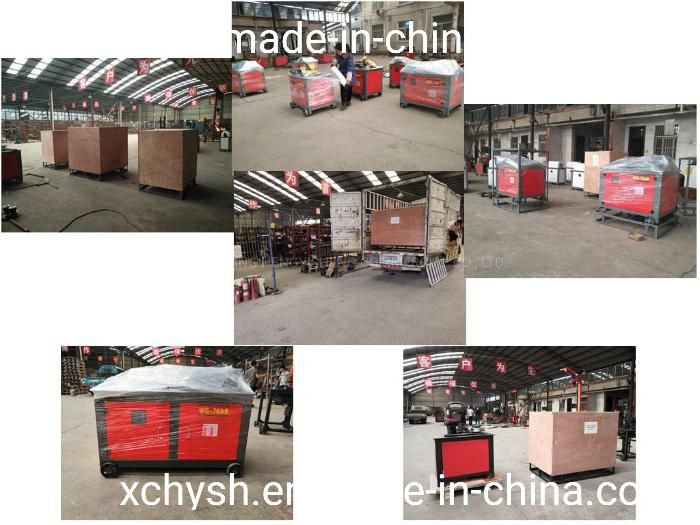

3. How to pack?
The machine is first packed in plastic film, then with iron frames and plywood.

4. What services do you provide?
We provide our customers within 2 years warranty and technical support is provided for free.

5. How to get to your factory?
You can fly to Zhengzhou airport, Henan province. We will arrange to pick you up.

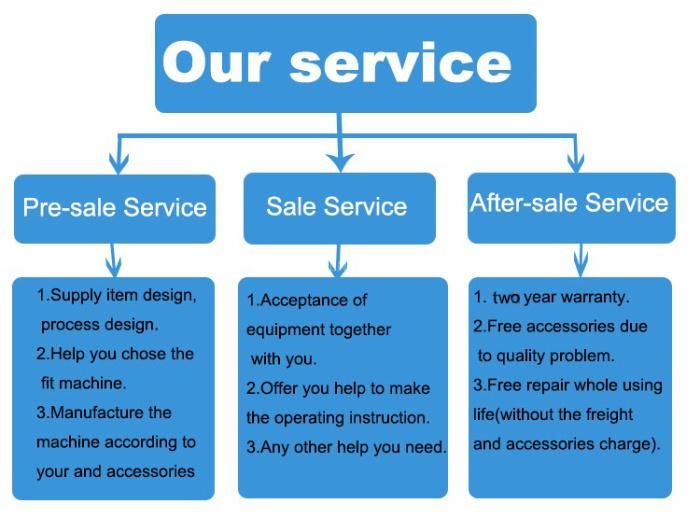

Our services
