• Type：Pipe and Tube Bending Machine
• Transport Package：Wooden Case
• Specification：pipe hairpin bender
• Trademark：Xinchang
• Origin：Ningbo
• Production Capacity：100 Set, Year

Basic Info.

Type Pipe and Tube Bending Machine Transport Package Wooden Case Specification pipe hairpin bender Trademark Xinchang Origin Ningbo Production Capacity 100 Set/ Year

Product Description

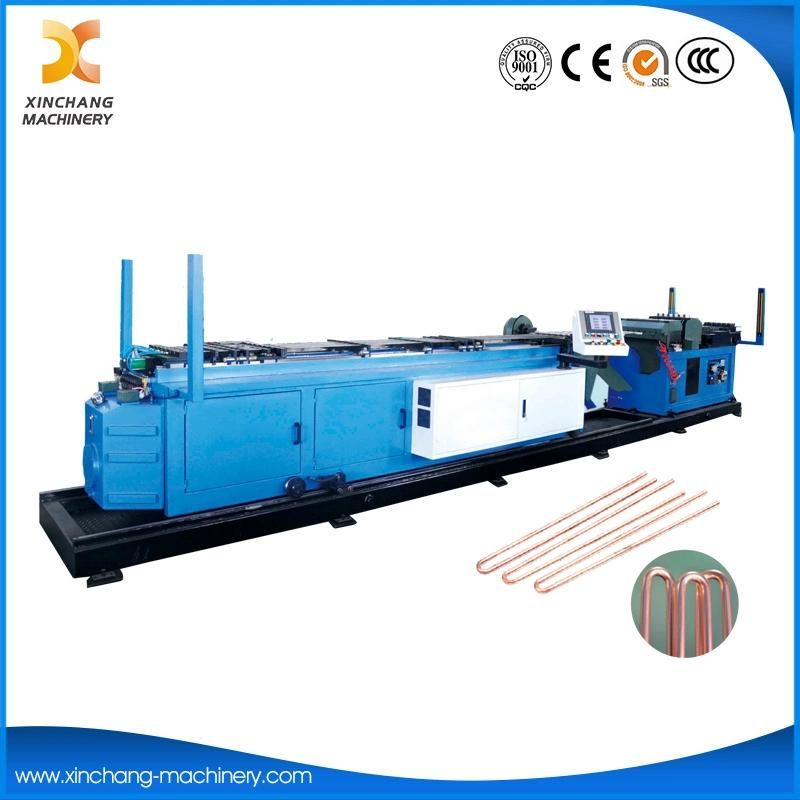

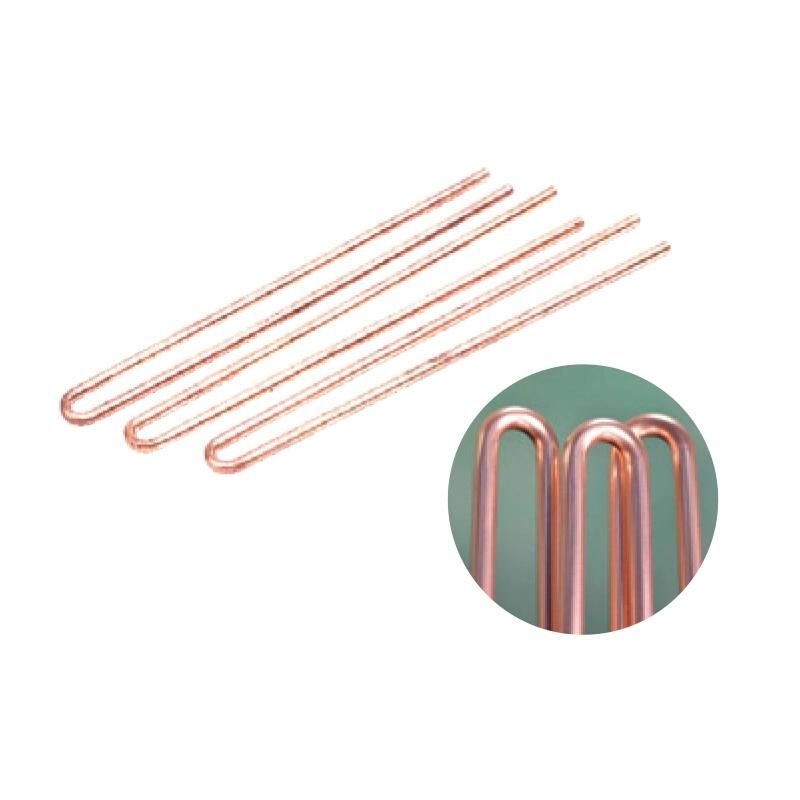

Usage: the equipment is used for opening, straightening, chipless cutting and bending coil copper pipe into set length U shape pipe which is also called hairpin pipe; mainly applied to the auto production of long U pipe in air-condition condensers and evaporators.

Specifications:

bending pipe quantity one time: 1-8 pcs

pipe length: min.200 mm,  max 1250 or 1650 or 2150 or 2650 or 3150 or 5000mm

bending mode: servo motor

positioning and unloading mode: servo motor

stroke setting and positioning mode: servo motor

pipe diameter: 5-16 mm

bending center size: 16-60 mm

Efficiency (one cycle): when L≤1,000, t <12sec

Length precision: ±0.8mm

Flattening rate in thickness of bending part : ≤15%
