W62Y-3X3100 Hydraulic Bending Machine
Shaanxi HAVEN Equipment Co., Ltd.- Warranty：1-year
- Condition：New
- Certification：ISO 9001:2000, ISO 9001:2008, CE
- Automation：Manual
- Suitable for：Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
- Type：Press Brake
Base Info
- Model NO.：W62Y-3X3100
- Control：Manual
- Transport Package：Iron Pallet
- Specification：3X3100
- Trademark：HAVEN
- Origin：China
- HS Code：8462
- Production Capacity：50 Units,Month
Description
Basic Info.
Model NO. W62Y-3X3100 Control Manual Transport Package Iron Pallet Specification 3X3100 Trademark HAVEN Origin China HS Code 8462 Production Capacity 50 Units/MonthProduct Description

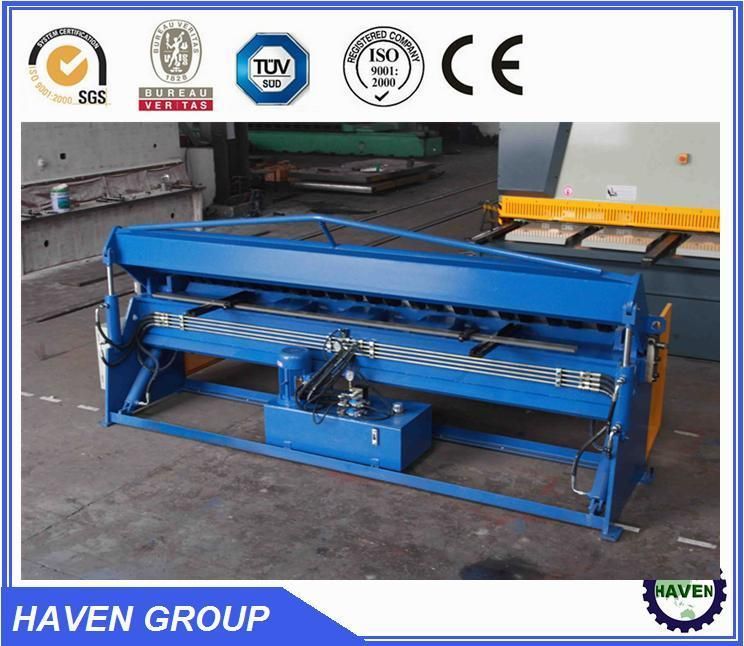

W62Y-3X3100 Hydraulic Bending Machine
Main functions:
Incorporates all the outstanding features of other popular hand press brake;
Both upper and lower movements can be adjusted;
Process workpiece according to the customer's requirement;
Folds sheets into a box/pan configuration;
Main specification:
| Model | W62Y-3x2500 | W62Y-4.5x2500 | W62Y-4x3100 | W62Y-5x2000 |
| Nominal pressure KN | 1000 | 1000 | 1000 | 1000 |
| Strokes Min-1 | 14 | 14 | 14 | 14 |
| Throat depth mm | 200 | 200 | 200 | 200 |
| Folding length mm | 2500 | 2500 | 3100 | 2000 |
| Folding thickness mm | 0.5-3 | 4.5 | 4 | 0.5-5 |
| Max angle of bending beam | 110 | 110 | 110 | 0-125 |
| Max lifting height of the upper beam | 200 | 200 | 200 | 200 |
| Motor power | 5.5 | 5.5 | 5.5 | 5.5 |
| Net weight kg | 3500 | 3600 | 4300 | 2850 |
| Dimension cm | 330x100x140 | 360x106x200 | 420x106x200 | 310x106x200 |
