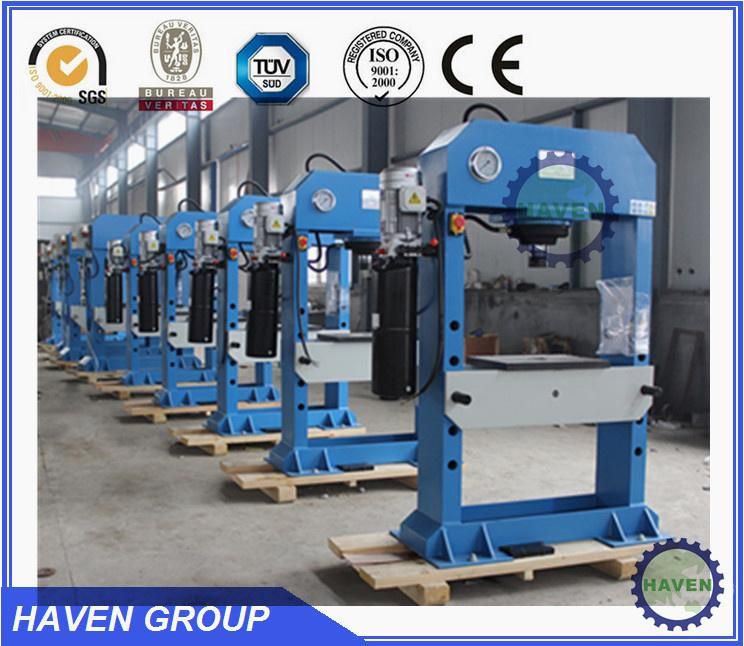

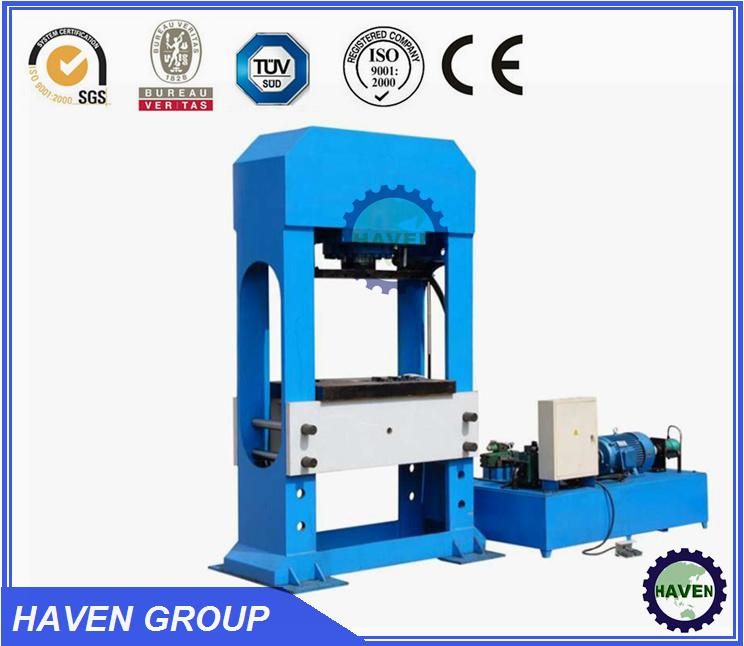

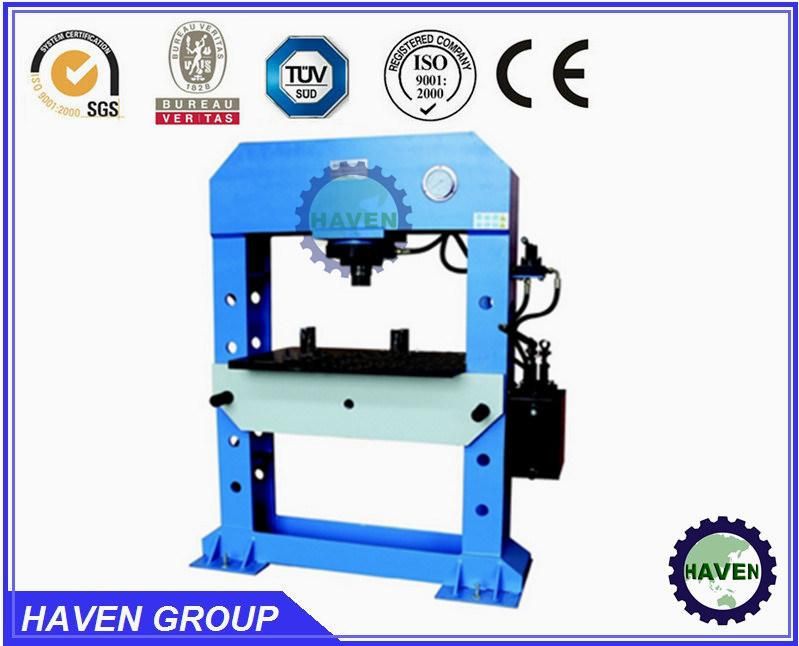

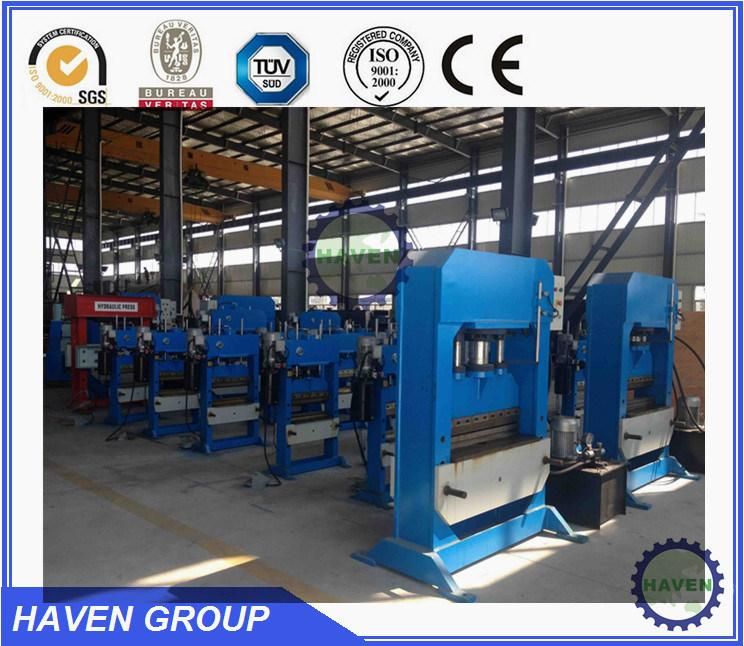

Small hydraulic press brake bending machine
Shaanxi HAVEN Equipment Co., Ltd.- Waterproof Rating:IPX-1
- Warranty:1-year
- Condition:New
- Certification:ISO 9001:2000, CE
- Automation:Semi-Automatic
- Suitable for:Plastic, Rubber, Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Base Info
- Model NO.:HPB-20,490
- Type:Hydraulic Bending Machine
- Capacity:200 T
- Power:1.5-4.0 KW
- Pressure:25MPa
- travel:200+270mm
- table size:300X450mm
- Net weight:550
- Package size:106X50X140cm
- Worktable lenth:490
- Transport Package:Steel Pallet
- Specification:Force: 20t
- Trademark:HAVEN
- Origin:China
- HS Code:84622990
- Production Capacity:500 Units,Month
Description
Basic Info.
Model NO. HPB-20/490 Type Hydraulic Bending Machine Capacity 200 T Power 1.5-4.0 KW Pressure 25MPa travel 200+270mm table size 300X450mm Net weight 550 Package size 106X50X140cm Worktable lenth 490 Transport Package Steel Pallet Specification Force: 20t Trademark HAVEN Origin China HS Code 84622990 Production Capacity 500 Units/MonthProduct Description
Small hydraulic press brake bending machineFeatures:
With the function of braking
With adjustable work table
Extremely torsion-proof steel weldment
Reliable high-accurate hydraulic system
Hydraulic press include replaceable top tools V-block and support table with stops.
Table can be lifted through a chain driven by the main cylinder
Micro-switch for traverse adjustment
Operating: Semi-automatic, fully automatic
Specification:
Model | Capacity | Worktable lenth | Pressure | Trval | Table size | Net weight |
HPB-20/490 | 200 | 490 | 25 | 200+270 | 300x450 | 550 |
HPB-30/580 | 300 | 580 | 25 | 200+270 | 300x550 | 650 |
HPB-50/790 | 500 | 790 | 25 | 220+405 | 400x750 | 1100 |
HPB-63/790 | 630 | 790 | 25 | 220+405 | 400x750 | 1200 |
HPB-1010/100 | 1000 | 1010 | 30 | 250+405 | 460x980 | 1420 |
HPB-1010/150 | 1500 | 1010 | 30 | 250+405 | 460x980 | 1750 |
HPB-1010/200 | 2000 | 1010 | 30 | 300+400 | 500x980 | 2400 |
HPB-1010/300 | 3000 | 1010 | 30 | 300+405 | 700x980 | 4200 |
HPB-100/1300 | 1000 | 1300 | 30 | 300+405 | 420x1250 | 2100 |
HPB-150/1300 | 1500 | 1300 | 30 | 300+405 | 420x1250 | 2400 |
HPB-200/1300 | 2000 | 1300 | 30 | 300+400 | 500x1250 | 2800 |
HPB-300/1300 | 3000 | 1300 | 30 | 300+450 | 600x1250 | 4800 |
HPB-100/1600 | 1000 | 1600 | 30 | 250+405 | 420x1550 | 2100 |
HPB-150/1600 | 1500 | 1600 | 30 | 250+405 | 420x1550 | 2450 |
HPB-200/1600 | 2000 | 1600 | 30 | 300+400 | 500x1550 | 3600 |
HPB-300/1600 | 3000 | 1600 | 30 | 300+400 | 600x1550 | 5800 |
