• Model NO.：W11-40X3200
• Type：Roller-Bending Machine
• Top Roller Bending：Ending Machine
• Application：Machinery & Hardware
• Type for Fold-bending Machine：Hydraulic Fold-bend Machine
• Type for Cutting Machine：Rolling Machine
• Max Thickness：40mm
• Max.width：3200mm
• Transport Package：Steel Pallet
• Specification：Max. Thickness: 40mm, Max Width: 3200mm
• Trademark：HAVEN
• Origin：China
• HS Code：84622990
• Production Capacity：50 Units,Month

Basic Info.

Model NO. W11-40X3200 Type Roller-Bending Machine Top Roller Bending Ending Machine Application Machinery & Hardware Type for Fold-bending Machine Hydraulic Fold-bend Machine Type for Cutting Machine Rolling Machine Max Thickness 40mm Max.width 3200mm Transport Package Steel Pallet Specification Max. Thickness: 40mm, Max Width: 3200mm Trademark HAVEN Origin China HS Code 84622990 Production Capacity 50 Units/Month

Product Description

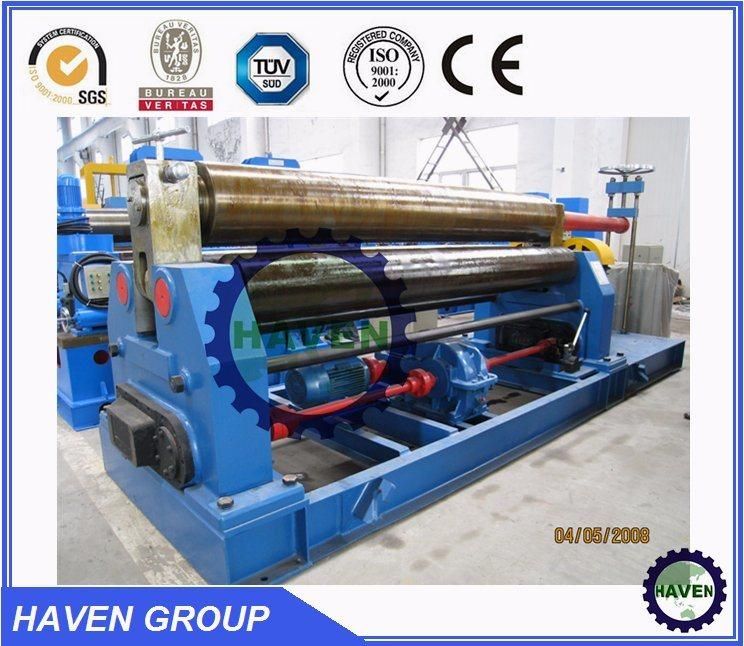

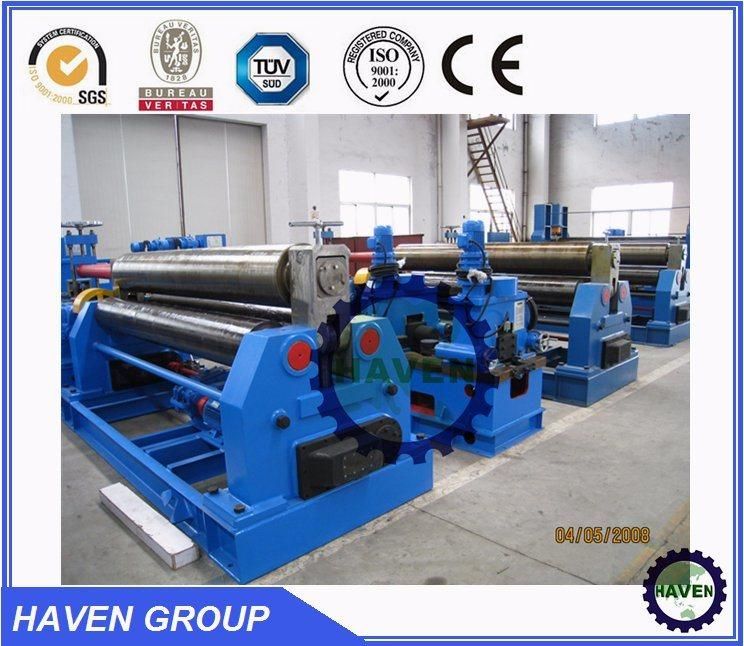

W11-40X3200 Top Quality Hydraulic 3 Roller Plate Bending rolling Machine




This series of machine is very widely used in sheet metal bending, rolling and shape-striking. and also widely used in the industries of ship-building, boiler, airspace, water and electricity, decoration and metal structure.

Our machines of this series are available in complete specifications, multiple types, well designed structure, and advanced techniques to meet customer's requirements.


Model	Max.   thickness (mm)	Max.   width (mm)	Max.   Bending speed(m/min)	Workpiece Min.   Dia. (mm)	Top  roller  dia   (mm)	Bottom  roller Dia.     (mm)	Dis.   of  bottom rollers  (mm)	Main  motor  power(kw)	Net  weight (t)	Overall Dimensions (cm)
W11-6*2500	6	2500	7.0	500	190	170	260	7.5	4.6	431*121*133
W11-  6*3200	6	3200	7.0	500	240	200	310	11	7.2	520*140*120
W11-8*2000	8	2000	7.0	450	190	170	260	7.5	4.1	381*121*133
W11-  8*2500	8	2500	6.0	500	230	190	300	11	6.7	450*142*161
W11-10*2000	10	2000	6.0	500	230	190	300	11	5.9	405*142*161
W11-12*2500	12	2500	5.0	750	280	240	360	22	9	500*150*180
W11-12*3200	12	3000	5.0	650	280	240	360	22	12.1	500*150*180
W11-16*2500	16	2500	5.0	750	280	240	360	22	8.5	500*150*180
W11-16*3200	16	3200	5.0	900	340	280	440	30	15.6	630*160*190
W11-20*2000	20	2000	5.0	750	280	240	360	22	7.8	450*150*190
W11-20*2500	20	2500	5.0	850	340	280	440	30	14.7	560*160*190
W11-25*2500	25	2500	4.5	900	380	300	490	37	16.7	600*160*215
W11-25x3200	25	3200	4.0	1200	400	310	520	37	20.5	680*180*215
W11-30*2500	30	2500	4.0	1200	400	310	520	40	21.6	580*180*215
W11-30*3000	30	3000	4.0	1200	400	310	520	45	25.3	630*180*215

2. Our Services
1: Response in time after getting customer's claim
1: Provide solution in 1 day
2: Usually solve problem within 2 days
2. For big machine, Installation Service is available as per customer's requirement


3. Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.


4. Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.
We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments.
