• Model NO.：GM-SB-50CNC-3A-1S
• Type：Pipe and Tube Bending Machine
• Transport Package：Iron Frame
• Trademark：GMACC
• Origin：China
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. GM-SB-50CNC-3A-1S Type Pipe and Tube Bending Machine Transport Package Iron Frame Trademark GMACC Origin China Production Capacity 5000PCS/Year

Product Description

Machine Characteristics

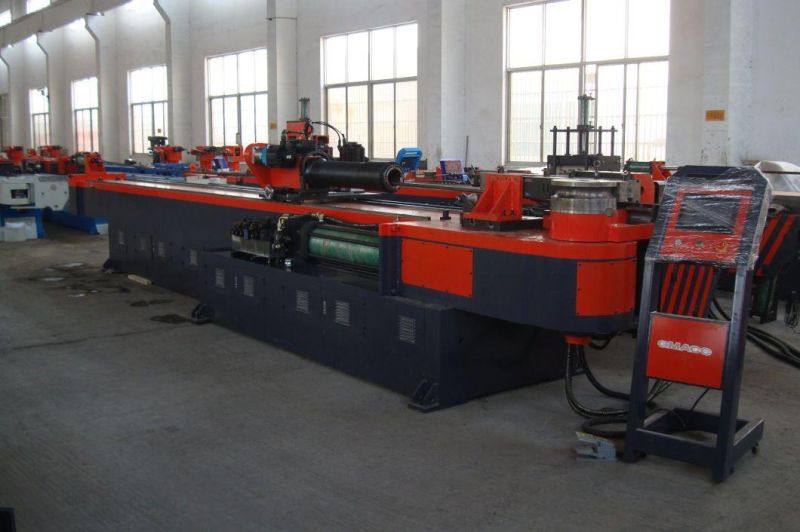

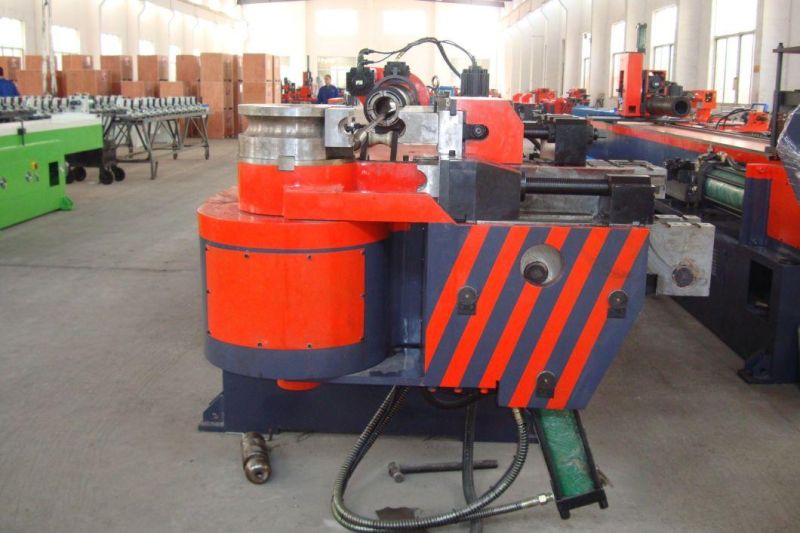

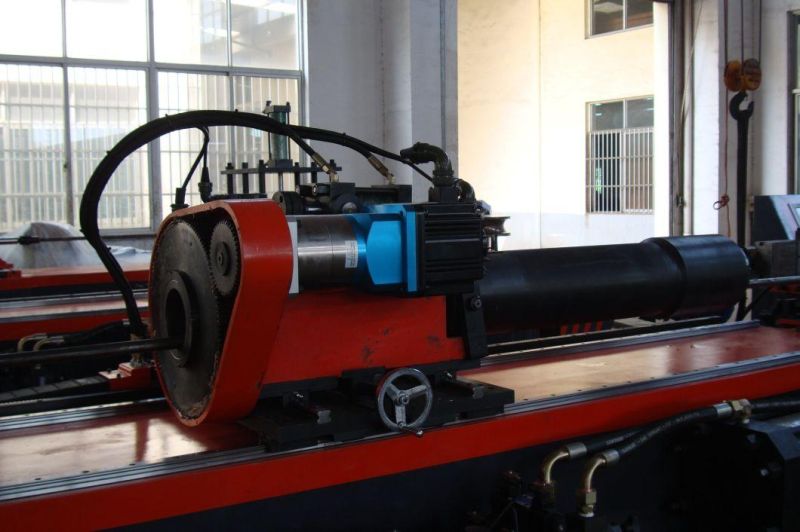

SB-CNC Series numerical control single-head pipe bending machine is the product from the combination with our technology and advanced Italian technology, integrated with machine, hydraulic, and electricity. This series adopt VDU touch screen operating panel, which can input, store, and display various bending data and order. Y, B, C three coordinatesofmotions under precision control by industrial computer can realize full-auto mandrel on or mandrel off rapid bending, CNC machine also with advanced functions, such as components bending springback compensation, errors self diagnose alarm, memory store after power off, automatic lubrication and safety protection. Pipe bending(C axis), pipe rotating (B axis), and pipe feeding(Y axis) are all drove by closed ring servomotor. Advanced technology, high automation reliability, integrated design all make CNC pipe bending machine the first class pipe processing machine in the world.

Name	Unit	Parameter
Max.   Bending  Capacity	mm	50*2
Bending  Radius  Range	mm	20-250
Max.   Bending  Angle	°	190°
Bending  Speed	° /sec	2000
Turning  Speed	° /sec	45
Feeding  Speed	mm/sec	200
Bending  Precision	°	1000
Turning  Precision	°	± 0.10
Feeding  Precision	mm	± 0.10
Turning  Servomotor  Power	kW	± 0.10
Feeding  Servomotor  Power	kW	0.75
Though  Effective  Distance	mm	1
System  Motor  Power	kW	5.5
Max.   Pressure	Kg/cm	17
Oil  Pump  Delivery  Volume	L	16
L*W*H  (Packaging  Dimension)	mm	4000*800*1300
Weight	T	2.5

1. Configuration of Hydraulic and Electronic Control System



Name	Manufacturer
Hydraulic Motor	Germany Siemens( Imported)
Hydraulic Pump	Japan Yuken(Imported)
Hydraulic Valve	Japan Yuken(Imported)
Oil way Board	Taiwan Shanghong (Imported)
Cylinder	Shanghai Jingsheng
Oil tube	Taiwan TATUNG(Imported)
Touch screen	Taiwan Weinview(Imported)
PLC	Japan Mitsubishi(Imported)
Servo Motor	Japan Mitsubishi(Imported)
Angle controller	Japan Nemicon(Imported)
Switch power	Japan Mitsubishi(Imported)
Contactor	Taiwan Weinview(Imported)
Other Electric Parts	German SCHNEIDER,Omron, Taiwan SHILIN(Imported)
