Chinese Best Electric and CNC Hydraulic Pipe Rolling Bender, Wheelbarrow 3D Full Automatic Profile or Furniture Pipe Tube Bending Machine (GM-SB-168NCB)

Zhangjiagang King-Macc Machinery Manufacturing Co., Ltd.
  • Waterproof Rating：IPX-8
  • Warranty：1-year
  • Condition：New
  • Certification：ISO 9001:2000, CE
  • Automation：Semi-Automatic
  • Suitable for：Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel

Base Info

  • Model NO.：GM-SB-168NCB
  • Type：Pipe and Tube Bending Machine
  • Transport Package：Iron Frame
  • Trademark：GMACC
  • Origin：China
  • Production Capacity：5000PCS,Year

Description

Basic Info.

Model NO. GM-SB-168NCB Type Pipe and Tube Bending Machine Transport Package Iron Frame Trademark GMACC Origin China Production Capacity 5000PCS/Year

Product Description

Technical Parameter and Configuration for Automatic Pipe Bending Machine GM-SB-168NCB
  • Machine Characteristic
Full hydraulic drove, PLC controlled with touch screen or text pipe bending machine, equipped with devices of pipe clamping, guide mould, mandrel, crease-resistant, assist pushing, pipe bending and so on. Under hydraulic operation, this professional, high speed and economic European pipe bending machine can bend various dimension both normal and abnormal shape metal pipes and bending angles are controlled by high precision imported encoder which ensures high precision of this machine.
  • Main Technical Parameter

NameUnitParameter
Max. Bending Capacitymm¢168*18
Bending Radius Rangemm60-750
Max. Bending Angle°190°
Effective Length over mandrelmm5600
Bending Precision°±0.10
System Motor PowerKW22
Oil Pump Delivery VolumeL14
Max. PressureMpa16
L*W*H (Packaging Dimension)mm7200*2200*1450
Machine WeightT14
Configuration of Hydraulic and Electronic Control System
NameManufacturer
Hydraulic MotorSuzhou Runmali
Hydraulic PumpWuxi Tuoli
Hydraulic ValveJapan Yuken(Imported)
Oil way BoardSuzhou Boguan
CylinderShanghai Qifan
Oil tubeSuzhou Kejia
Touch screenTaiwan Weinview(Imported)
PLCJapan Mitsubishi(Imported)
Angle controllerJapan Nemicon(Imported)
Switch powerWenzhou Changxing
ContactorGerman SCHNEIDER(Imported)
Other Electric PartsGerman SCHNEIDER,Omron, Taiwan SHILIN(Imported)

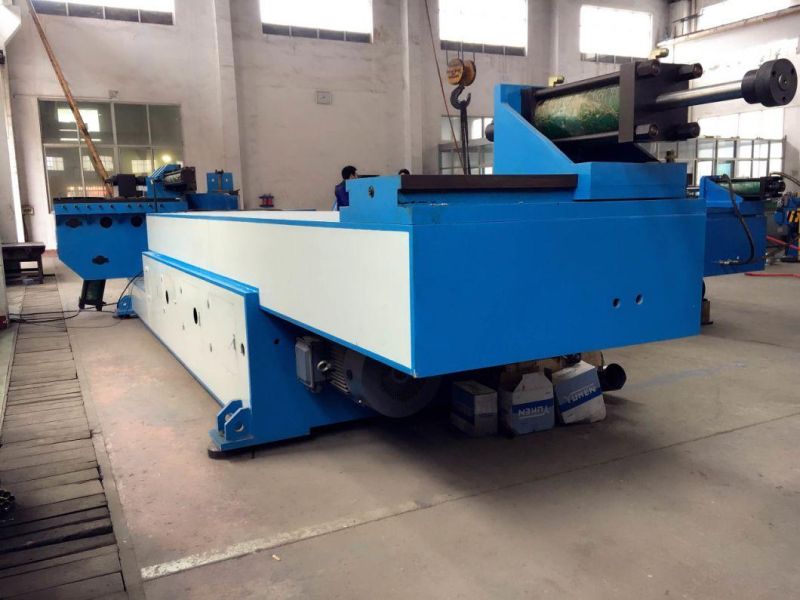

Chinese Best Electric and CNC Hydraulic Pipe Rolling Bender, Wheelbarrow 3D Full Automatic Profile or Furniture Pipe Tube Bending Machine (GM-SB-168NCB)

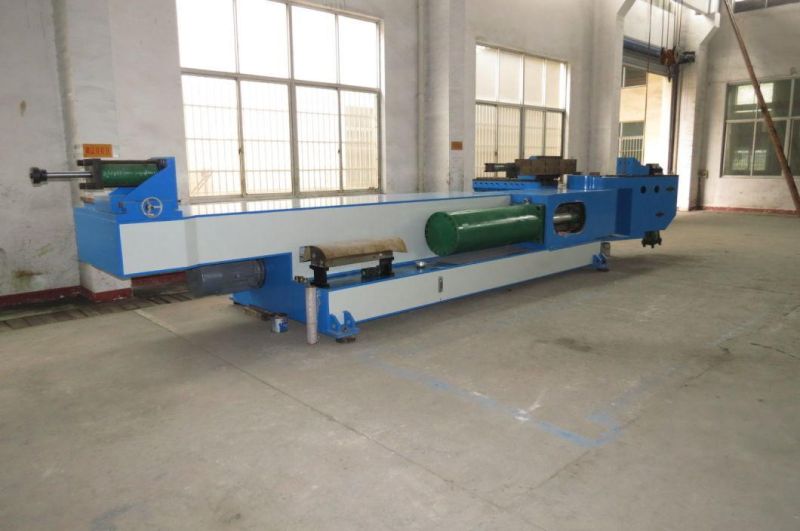

Chinese Best Electric and CNC Hydraulic Pipe Rolling Bender, Wheelbarrow 3D Full Automatic Profile or Furniture Pipe Tube Bending Machine (GM-SB-168NCB)
FAQ

1. Q: Are you a manufacturer or trading company?

A: We are a manufacturer.We are focusing on metal pipe/tube processing machinery.

2. Q: How to choose the pipe/tube bending machines?

A: You have to inform us following details:

- Max. outside diameter

- Wall thickness range

- Bending radius (CLR)

- The pipe material

- The drawings if possible

3. Q: What certificate do you have?

A: We have both ISO and CE certificate.

4. Q: Where is your factory located?

A: Our factory is located in Zhangjiagang City, Jiangsu Province, about 2 hours to Shanghai by car. You can fly to

Shanghai Hongqiao or Pudong airport directly.Or we are about 1 hour to wuxi city by car. You can take fast train to

Wuxi railway station.
