• Model NO.：GM-SB-76NCB
• Type：Pipe and Tube Bending Machine
• Transport Package：Iron Frame
• Specification：CE
• Trademark：GMACC
• Origin：China
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. GM-SB-76NCB Type Pipe and Tube Bending Machine Transport Package Iron Frame Specification CE Trademark GMACC Origin China Production Capacity 5000PCS/Year

Product Description

Machine Characteristic

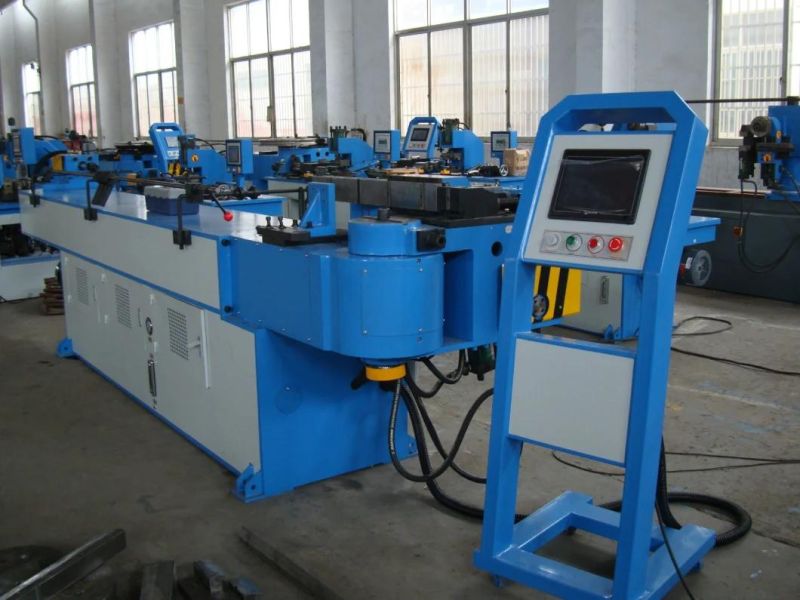

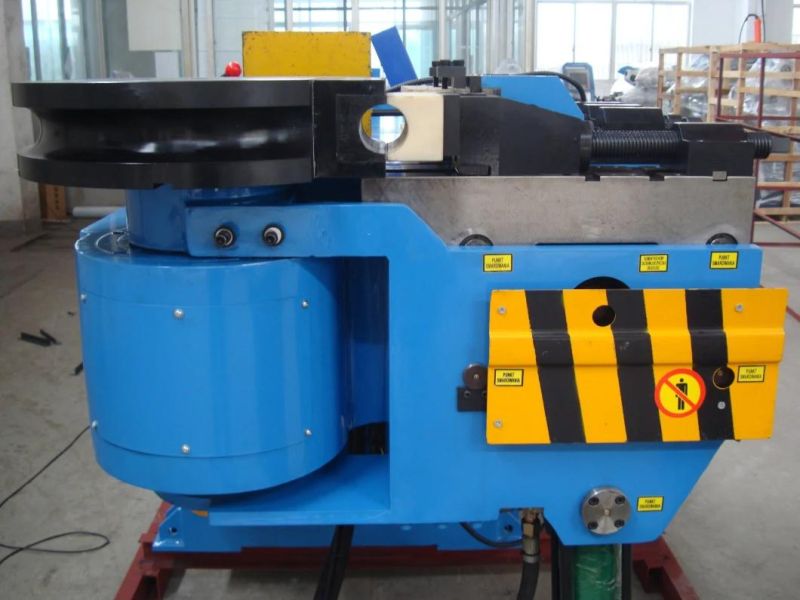

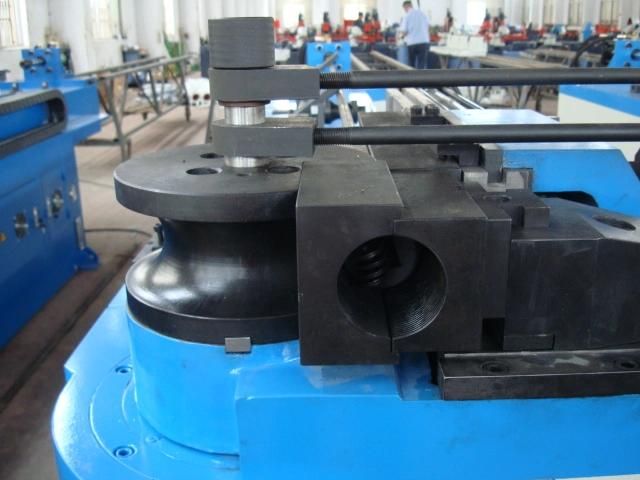

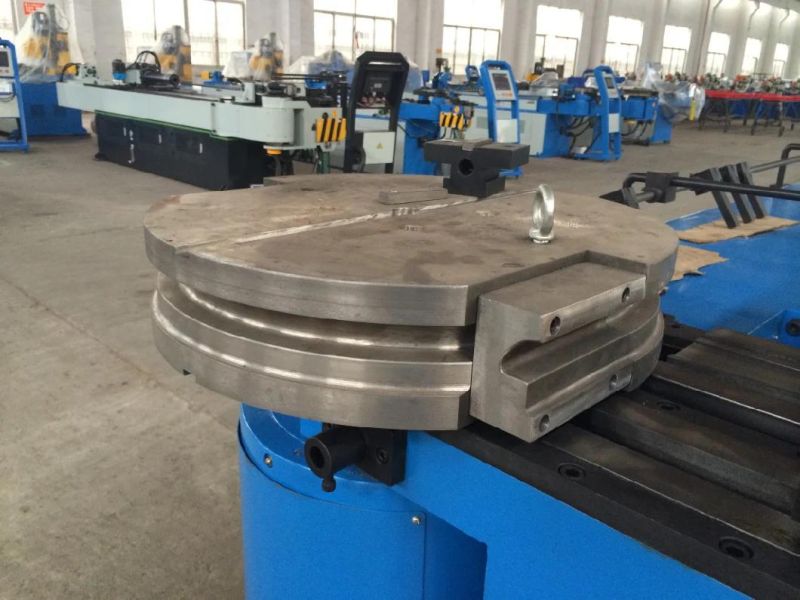

Full hydraulic drove, PLC controlled with touch screen or text pipe bending machine, equipped with devices of pipe clamping, guide mould, mandrel, crease-resistant, assist pushing, pipe bending and so on.

Under hydraulic operation, this professional, high speed and economic European pipe bending machine can bend various dimension both normal and abnormal shape metal pipes and bending angles are controlled by high precision imported encoder which ensures high precision of this machine.

Name	Unit	Parameter
Max.   Bending  Capacity	mm	76*5
Bending  Radius  Range	mm	30-350
Max.   Bending  Angle	°	190°
Though  Effective  Distance	mm	3000
Bending  Speed	° /sec	30
Bending  Precision	°	± 0.10
System  Motor  Power	KW	7.5
Oil  Pump  Delivery  Volume	L	25
Max.   Pressure	Mpa	16
L*W*H  (Packaging  Dimension)	mm	4200*1200*1350
Machine  Weight	T	3.0
