• Model NO.：HD1100
• Y-Axis Travel-Length：1100mm
• Z-Axis Travel-Length：80mm
• Moving Speed：15m,Min
• Positioning Precision：0.01mm
• Re-Positioning Precision：0.005mm
• Max Weight of Table Load：300kg
• Resolving Power：0.001
• Power：380V,6kw ( Three-Phase Supply)
• Overall Dimensions (L x W x H)：1600*1700*1400mm
• Weight：1500kg
• Transport Package：Wood Box
• Specification：1600*1700*1400mm
• Trademark：YT
• Origin：Jiangsu Suzhou
• Production Capacity：100 Piece,Pieces , Month

Basic Info.

Model NO. HD1100 Y-Axis Travel-Length 1100mm Z-Axis Travel-Length 80mm Moving Speed 15m/Min Positioning Precision 0.01mm Re-Positioning Precision 0.005mm Max Weight of Table Load 300kg Resolving Power 0.001 Power 380V/6kw ( Three-Phase Supply) Overall Dimensions (L x W x H) 1600*1700*1400mm Weight 1500kg Transport Package Wood Box Specification 1600*1700*1400mm Trademark YT Origin Jiangsu Suzhou Production Capacity 100 Piece/Pieces / Month

Product Description

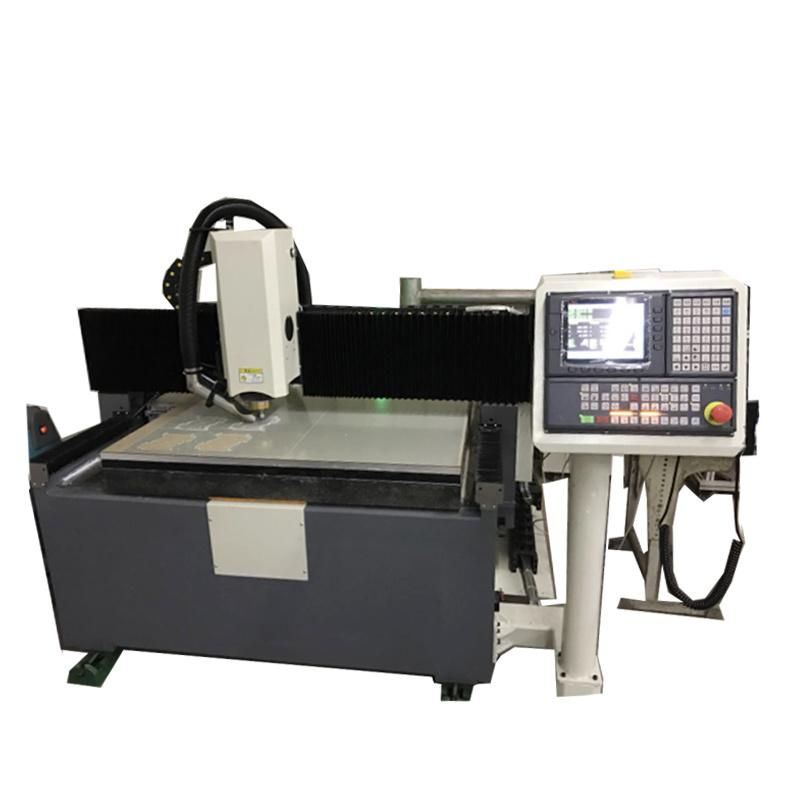

Kunsan Yitai Die Making High Quality Pertinax Milling MachineTechnical Parameters:

Model No.	HD1100
X-axis travel-length	1100mm
Y-axis travel-length	1100mm
Z-axis travel-length	80mm
Moving speed	15m/min
Positioning Precision	0.01mm
Re-Positioning Precision	0.005mm
Max weight of table load	300KG
Resolving power	0.001
Power	380V/6KW ( three-phase supply)
Overall dimensions (L x W x H)	1600*1700*1400mm
G. Weight	1500kg

 HD1100 Pertinax Cutting Machine Quotation                 Configuration:

1. Ball screw & Linear guide (TAIWAN)
2. NSKP4 bearing
3. X&Y&Z axis limit switch
4. X&Y axis protective cover
5. Resilient coupling
6. Manual oil injector
7. LED warning light
8. 2.2KW vacuum motor
9. Marble vacuum aluminum suction table
10. Spindle oil cooler
11. CNC control cystem(China)
12. Knife adjusting instrument
13.  Servo motor (imported)
14. 1.5KW dust cleaning motor
