• Type：Press Brake
• Control System：Estun, Easycat, Delem
• Control Axis：Y, X, R, Z, V
• Power Supply：Customized as You Request
• Hydraulic System：Rexroth
• Auto Crowning：Option
• Transport Package：Nude Packing, Steel Pallet
• Specification：250tons
• Trademark：WOKE
• Origin：Nantong, Jiangsu, China
• HS Code：8462299000
• Production Capacity：40PCS,Month

Basic Info.

Type Press Brake Control System Estun, Easycat, Delem Control Axis Y, X, R, Z, V Power Supply Customized as You Request Hydraulic System Rexroth Auto Crowning Option Transport Package Nude Packing, Steel Pallet Specification 250tons Trademark WOKE Origin Nantong, Jiangsu, China HS Code 8462299000 Production Capacity 40PCS/Month

Product Description

NC & CNC Hydraulic Press Brake, Sheet Metal Bending Folding Machine



Machine Performance & Advantages:
Tandem press brake is combined by two sets of press brake tandem is combined by two sets of press brake, tandem achieve synchronization working, single machine is combined by worktable ram and right and left wall boards, wall baord adopt assemble structure due to the transportation, the rack has enough rigidity, two cylinders install to the right and left wall board,under the effect of electric operation system,drive the slider running down.on slide there is upper dies,when upper and lower dies touch workpieces,system raise pressure,form the workpieces.use different dies,under different bending,can get the different types of workpieces.the quality is reliable and stable.

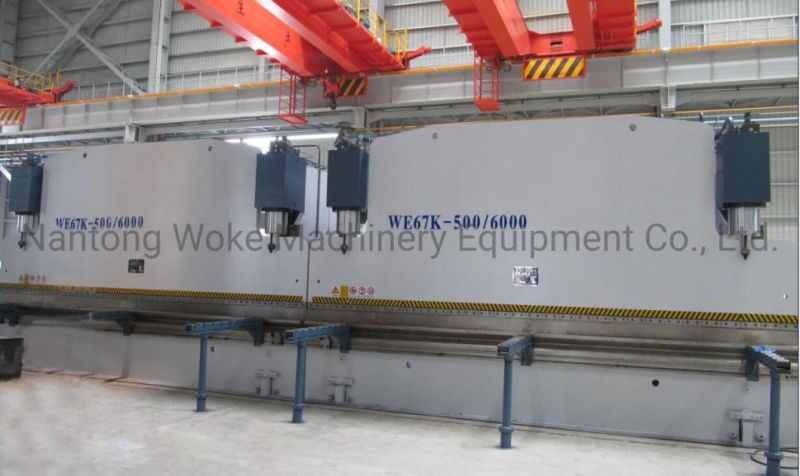

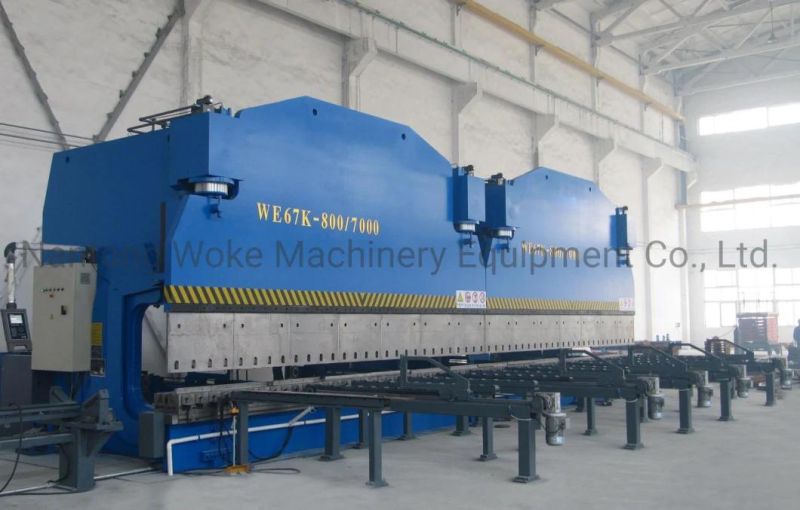

CNC Tandem Press Brake For Pole Forming:

Model	Nominal pressure	Worktable length	Throat depth	Opening	Dimension(LXWXH)
	KN	mm	mm	mm	mm
2-WE67K-320/6000	2x3200	2x6000	720	870	2-6250x2614x5470
2-WE67K-400/7000	2x4000	2x7000	720	870	2-7250x5170x5970
2-WE67K-600/6000	2x6000	2x6000	1000	1000	2-6240x5960x5500
2-WE67K-1000/6000	2x10000	2x6000	1400	1400	2-6240x6500x6600
2-WE67K-1600/6000	2x16000	2x6000	1100	1250	2-9240x8200x8250
2-WE67K-2000/9000	2x20000	2x9000	1600	1600	2-9240x9050x8800

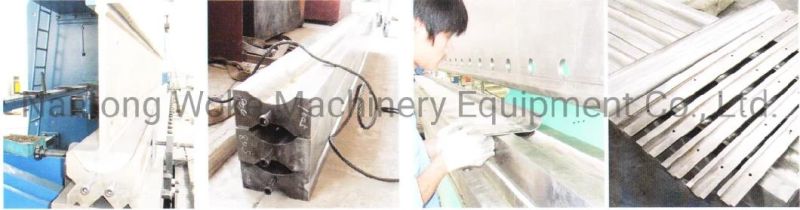

Conical Light Pole Press Brake Tool(Single and double taper rate type)
·Taper rate: 11/1000, small end OD:60mm,  big end OD:236mm, length:16m
·Taper rate: 12.5/1000, small end OD: 60mm, big end OD: 260mm, length:16m

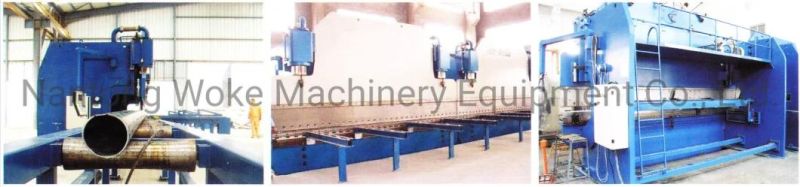

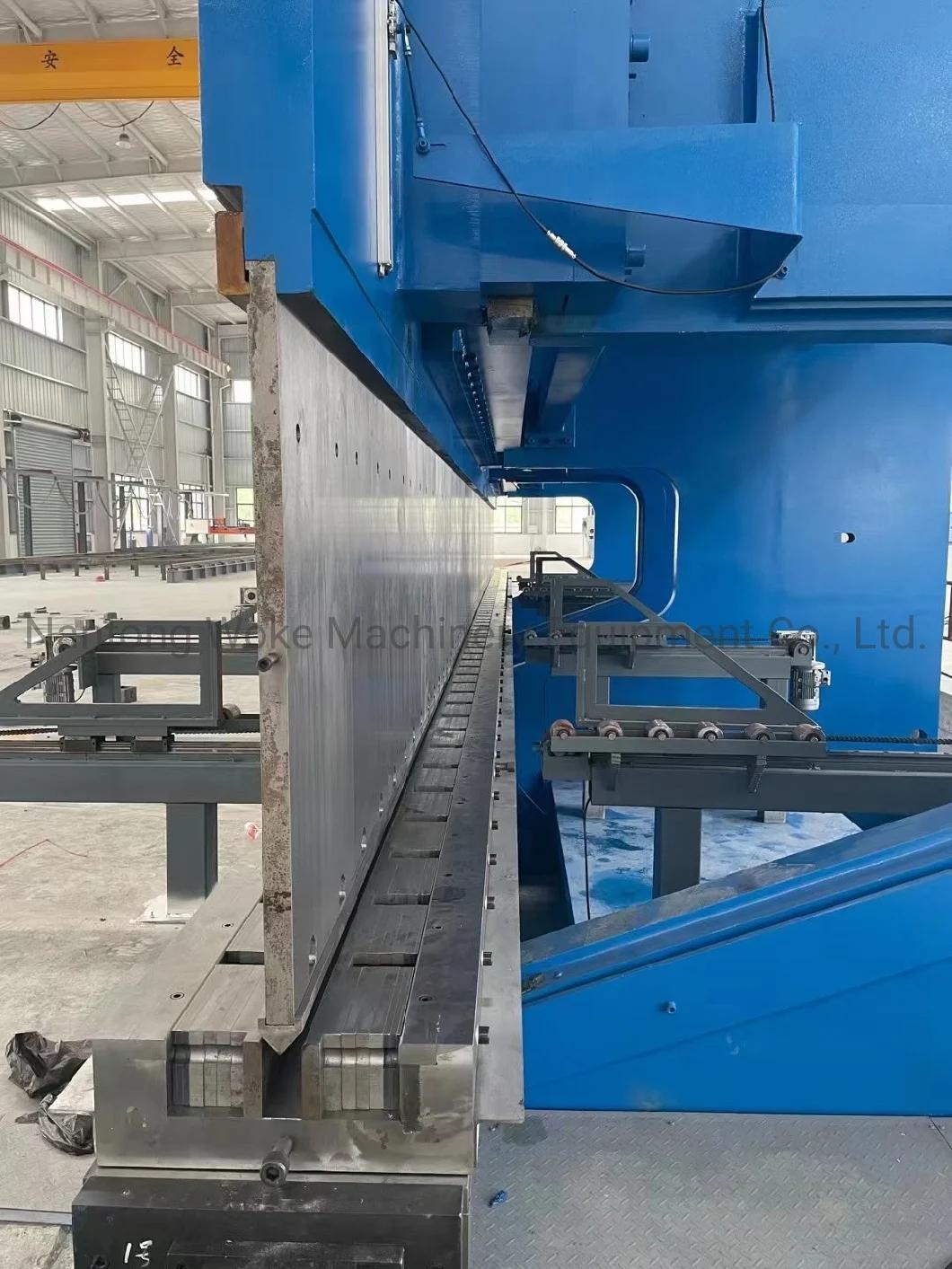

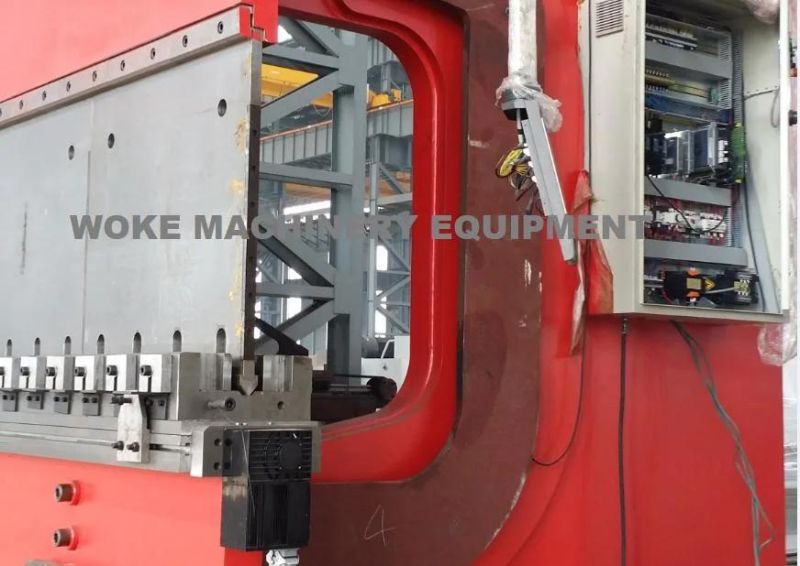

Machine view:

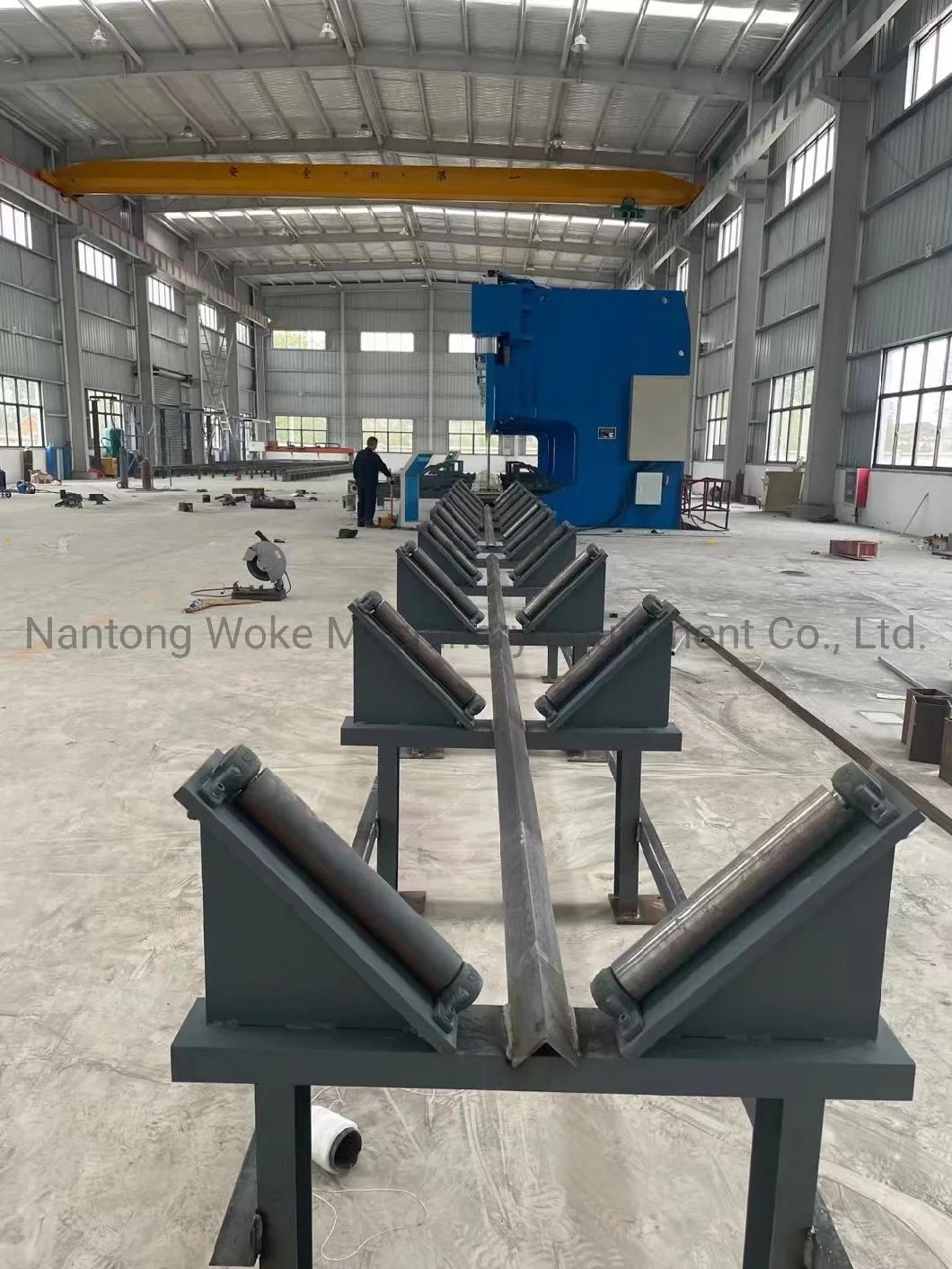

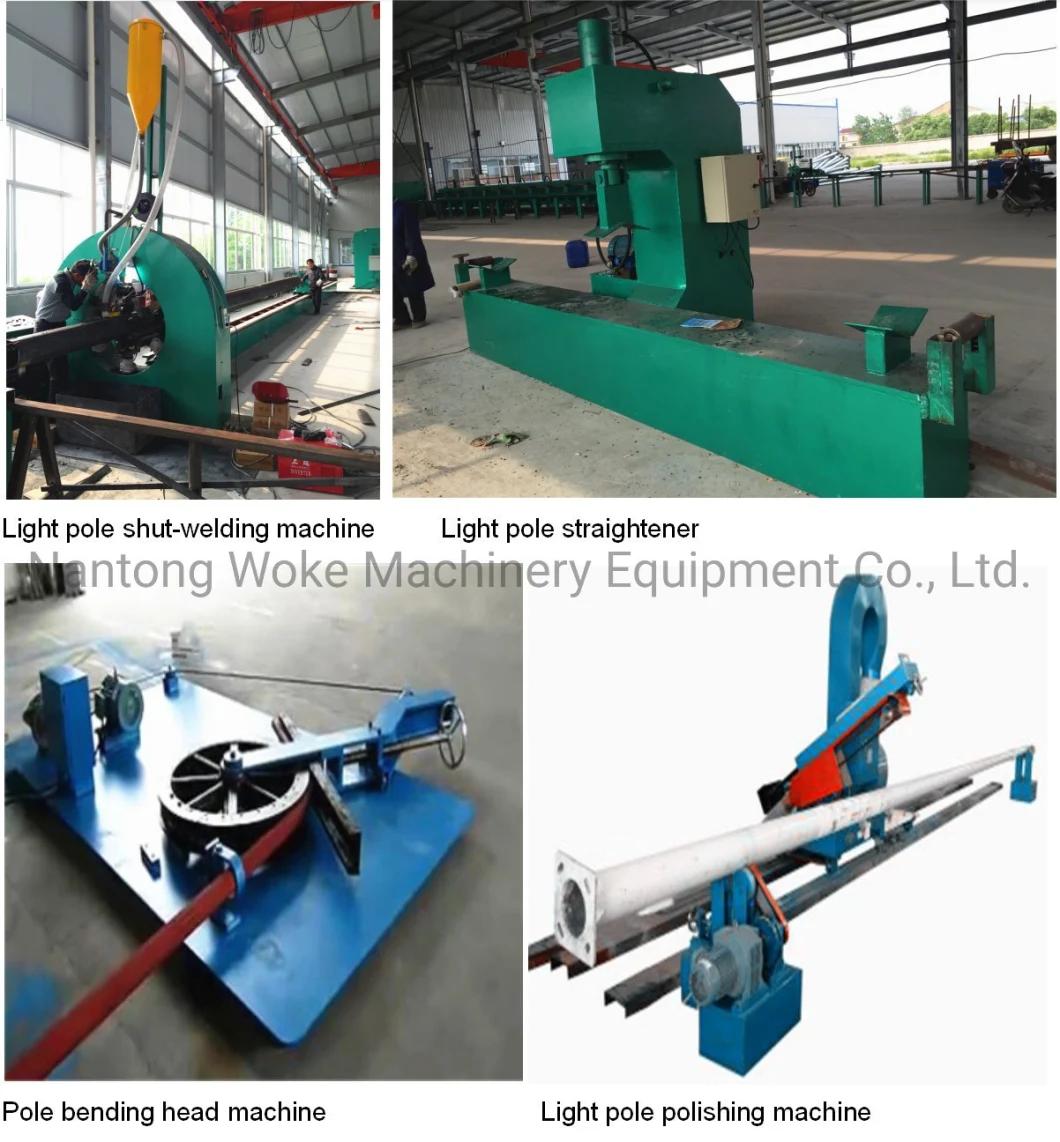

Light Pole Production Machine, High Mast Pole, Power Pole Production Machine

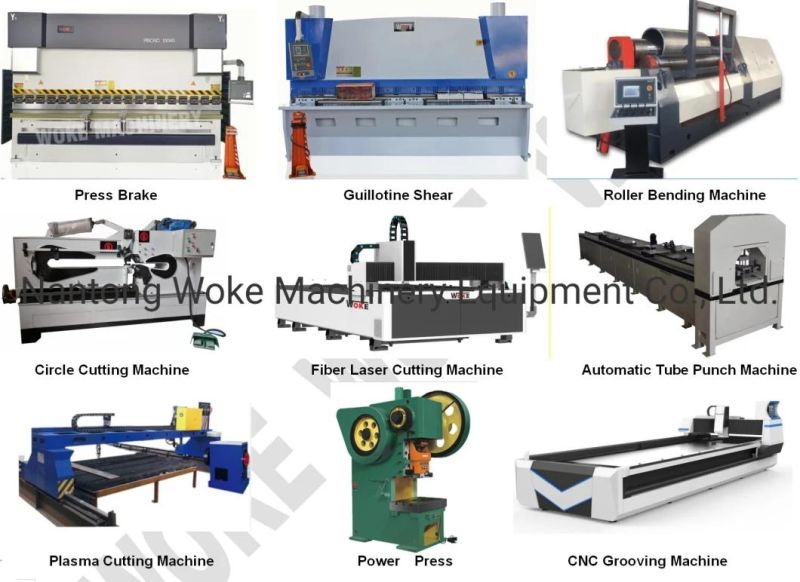

Sheet metal working machines our company supply:

Company strength
