• Model NO.：TPB-300
• Type：Coiling Bending Machine
• Color：Customized
• Bending Flatness：0.2,100mm
• Bridge Mode：Automatic Continuous Bridge, Bridge Height Adjusta
• Cutting Mode：Automatic Cut-off or Swing
• Line Cut：Efficiently Bending The Blade and Cutting
• Best Files Format：Dxf, Dwg, Ai, CDR, Plt
• Power：1.8kw
• Weight：620kg
• Transport Package：Wooden Box
• Specification：3125*1025*1470mm
• Trademark：YT
• Origin：China
• HS Code：8462219000
• Production Capacity：1000set,Year

Technical ParametersBlade thickness(mm)0.450.530.71(2PT)1.07(3PT)1.42(4PT)Blade height(mm)8-258-258-308-408-60Maximum bending angle100100100100100Minimum bending radius of 90 degrees(mm)0.40.40.50.50.5Minimum bending size of the front(mm)1.01.01.51.51.5Minimum bending size of the Rear(mm)>0>0>0>0>0Feeding Accuracy0.03/300mm  Panasonic Server Motor And High Precision Screw guideBending Flatness0.2/100mmBridge ModeAutomatic continuous bridge, bridge height adjustable(15--18mm) Gear Motor driveCutting ModeAutomatic cut-off or swing(Automatic identification alarm and self Monitor)Gear Motor drive Full Power add olecranon pneumatic machineLine CutEfficiently Bending the Blade and Cutting the Line At the Same time.Best Files formatDXF,DWG,AI,CDR,PLTWeight620kgVolume2660*1150*1540Power1.8kw  110V  220V / 50HZ  60HZ
Functions

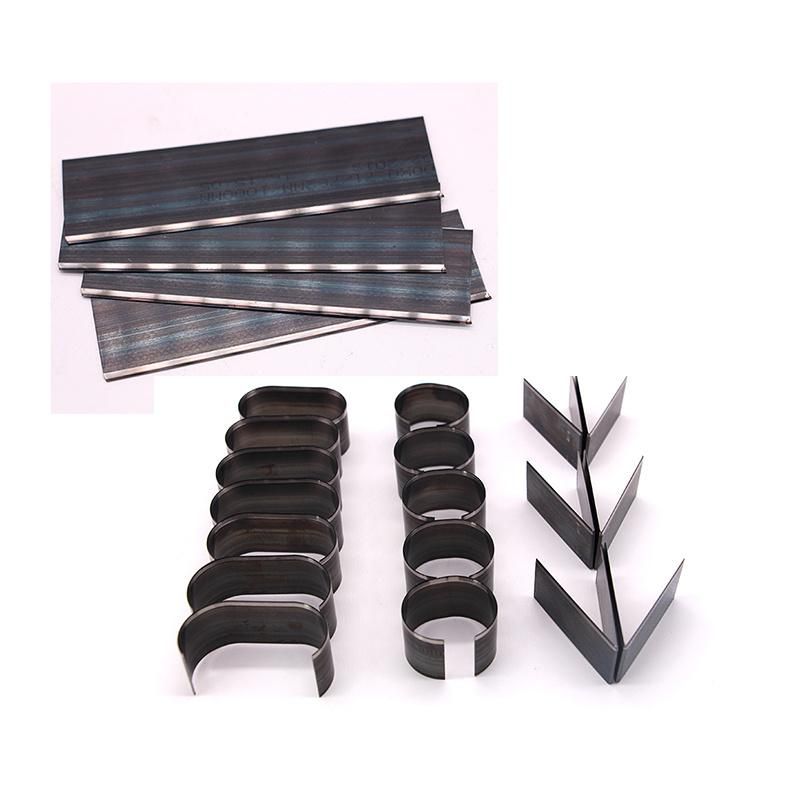

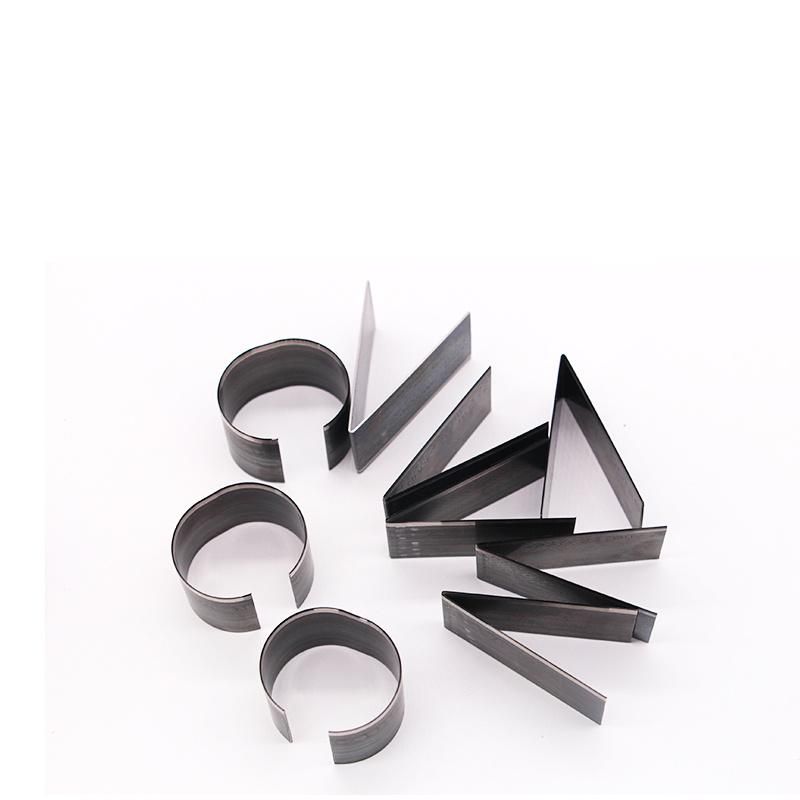

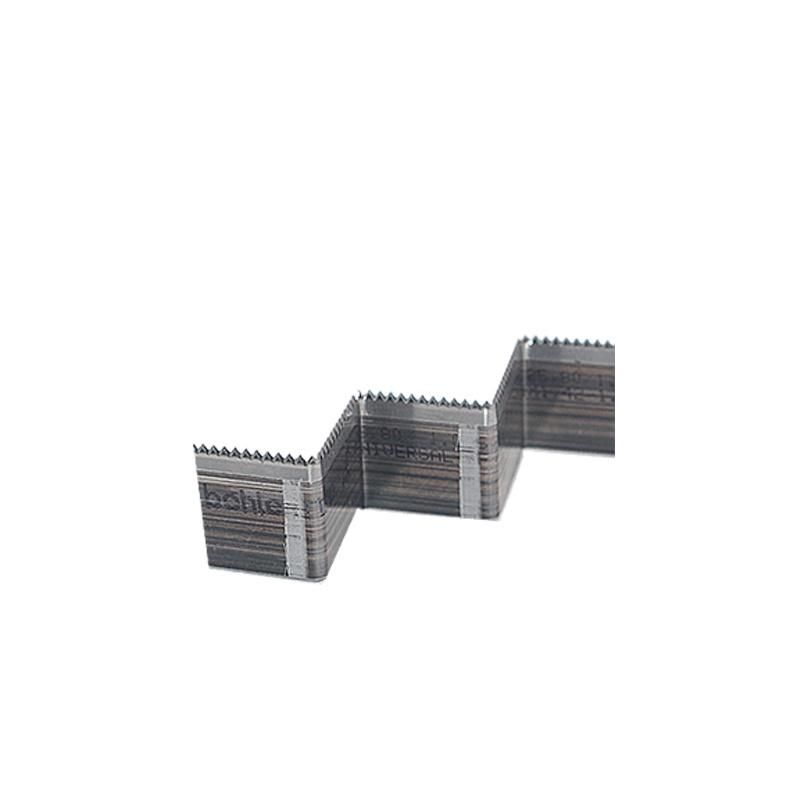

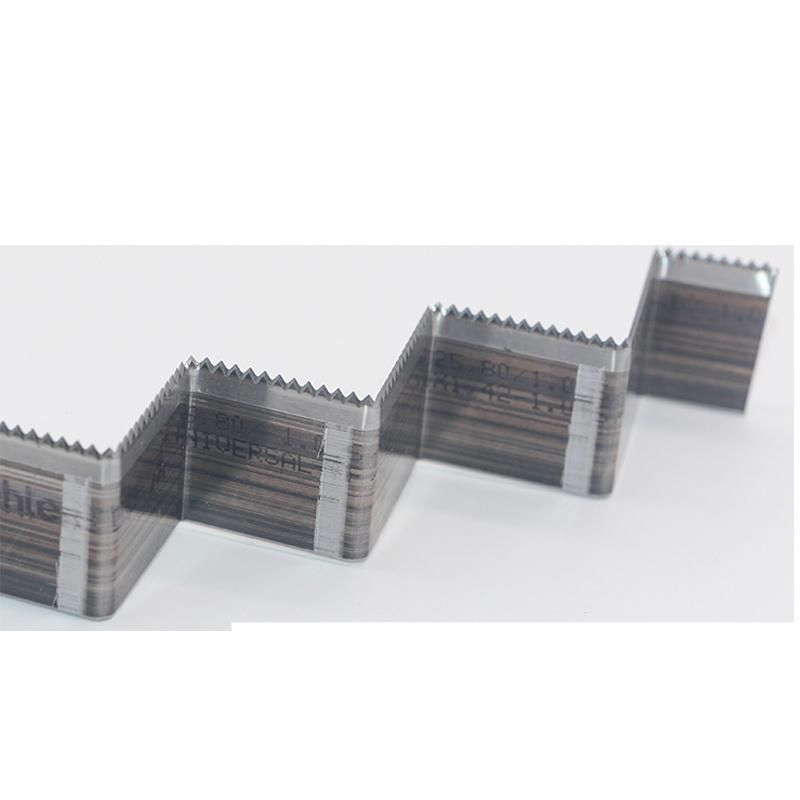

Auto Bending ,Bridging , Cutting , Lipping, Broaching with 0.45-3mm thick and 8-60mm high blade.

Features

Core parts made of:
2 sets Pansonic server motor(for Feeding and bending);
2 sets gear ruducer motor(for bridging cutting liiping);
2 sets Pansonic server motor(for broaching);
1 stes high precision HIWIN guide screw
1 sets Japan server motor reducer
High quality AirTag cylinder
Self develop controll system subject to change by customer needs Self protect and alarm system Stable and Easy to operate Low maintance fee


Applicable materials and industries

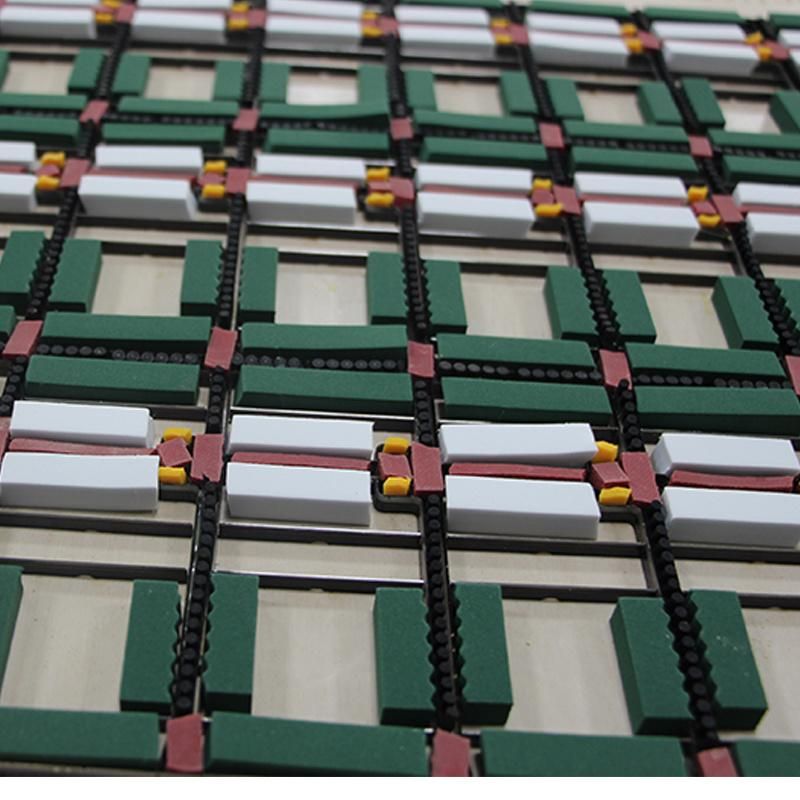

Widely used in blade bending, package box and so on

Bending System

1.Feeding-----use the roll feeding system,could feed the steel rule very fast and accurately

2.Cutting-----automatical cutting, easy to cut  the steel rules

3.Bridging-----automatic bridging

4.Lipping-----automatic lipping

5.Bending-----use firmware bending system, could bend the boxes, toys, electronics perfectly

6.Rule Rest-----use the single rule rest,could move two sides to ensure the clockwise or anticlockwise rule trays

7.Software-----English interface is easy to learn and operate

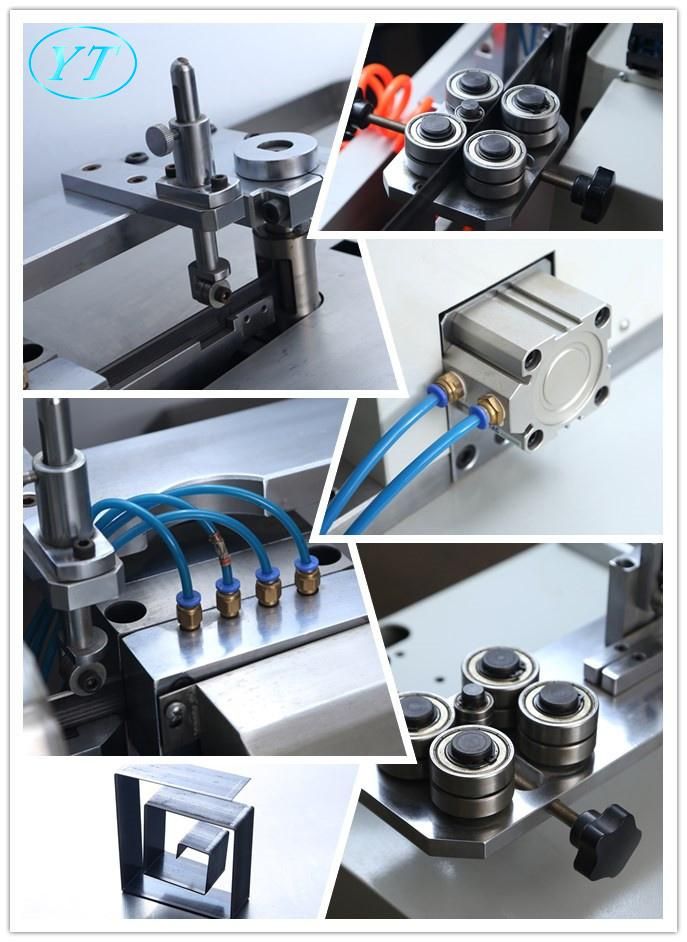

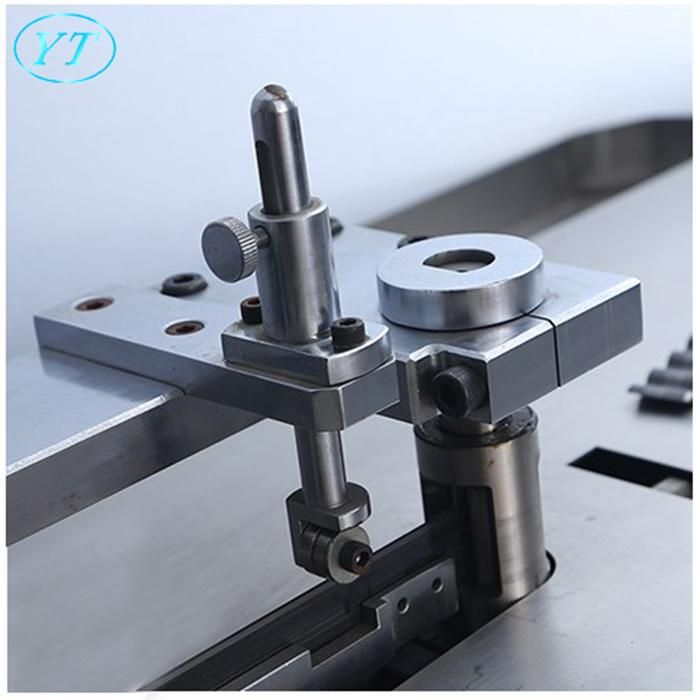

Machine Details

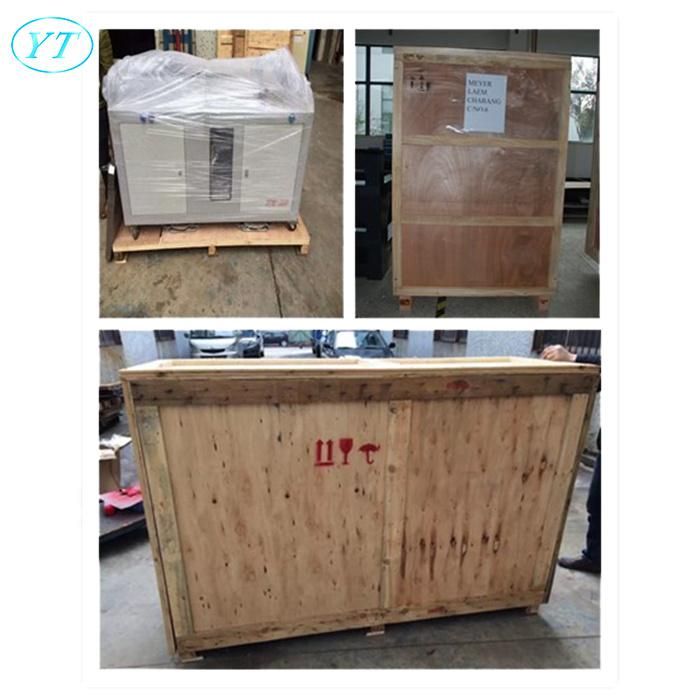

Package & Shipping

Each machine is well packed with export standard wooden box.
We will make photos for the machine before the shipping and let you know the processing of the packing and loading.


Our Services
1.Our machine is guaranteed for one year, not including normal consuming parts.

3.User-friendly English manual and Video CD for machine using and maintaining.
4.Our self-developed English software can do all kinds of pattern recognition.
5.We supply 1 year warranty and LifeLong engineering service.

Why Choose Us
⊙ Our Machine Can process The Minimum radius of processed 0.5mm,While Other 1.0mm.
⊙ Automatic identificate Cutting direction,Cutting The Knife At any short you want, But Others Don't have those functions, The Shortest Knife to be 2.5mm.
⊙ Automatically adjust the height of the bridge 15 18 mm By a switch.
⊙ No Noise Of Cutting and Bridge By Motor Contril,No Helpless Or Blocking Knife. However Other Company usually adopt Pneumatic control, there will occur the Phenomenon Of Helpless And Blocking Knife.
⊙ Can Make Bridge Hole continusly,Continuous Working, No Phenomenon Of Round-trip back to Make bridge.
⊙ Has The Integrated Working(Selsct All The Knife you want to bend, Then the Machine Will bend All the Knife Continusly, The Same as Cutting Line).
⊙ Has The Automatic alarm and Self Protect Function. When false operation and machine breakdown, The Machine Will Stop and Show the Erro Code, You Can Check it easily.
⊙ The shimpo reducer is original imported from japan, while others are made in china only.

Please Let Us Know
1.What machine do you need?
2.What materials will be processed?The size and thickness?
3.What is your business scope?Are you end user or distributor?

Any more product information, please contact us!
