QC12k 6X3200mm Hydraulic Swing Beam Shear Machine
Maanshan Middle Asia Machine Tools Manufacture Co., Ltd.- Condition:New

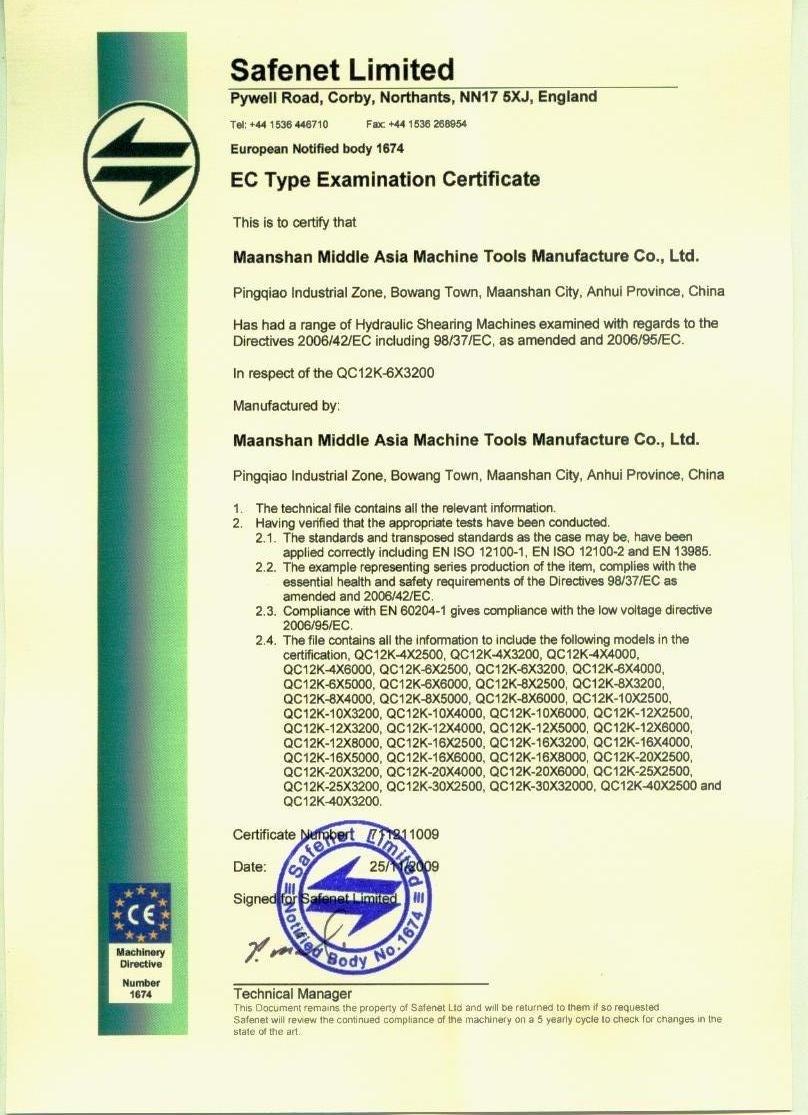

- Certification:ISO 9001:2008, CE
- Automation:Automatic
- Suitable for:Aluminum, Carbon Steel, Stainless Steel
- Dimension(L*W*H):3840*1610*1620
- Weight:6000kg
Base Info
- Model NO.:QC12K 6*3200mm
- Warranty:12 Momthes
- Main Motor( Kw):7.5
- Voltage:380V,220V,415V
- Rated Power(Kw):15
- After Sale Service Provided:Overseas Third-Party Support Available
- Product Name:Hydraulic Metal Sheet Cutter Machine
- Color:Optional
- Application:Machinery & Hardware
- Transport Package:with Plasic Bag or According to The Customers′ Req
- Specification:3840*1610*1620
- Trademark:Hydraulic Metal Sheet Cutter Machine , Hydraulic G
- Origin:China
- HS Code:8462399000
- Production Capacity:2500 Sets, Year
Description
Basic Info.
Model NO. QC12K 6*3200mm Warranty 12 Momthes Main Motor( Kw) 7.5 Voltage 380V/220V/415V Rated Power(Kw) 15 After Sale Service Provided Overseas Third-Party Support Available Product Name Hydraulic Metal Sheet Cutter Machine Color Optional Application Machinery & Hardware Transport Package with Plasic Bag or According to The Customers′ Req Specification 3840*1610*1620 Trademark Hydraulic Metal Sheet Cutter Machine / Hydraulic G Origin China HS Code 8462399000 Production Capacity 2500 Sets/ YearProduct Description
QC12Y 6X3200mm Hydraulic swing beam shear machine1. Digital Display
2. 1 year warranty
3. CE/ISO
4. Ball Lead Screw and Liner Guide for Opt
QC12Y Features:
The machine is metal plate welded structure, with hydraulic transmission and accumulator return, typical of an easy operation, reliable performance, and nice appearance, fitted with digital controller.
Indication by indicator is provided for adjustment of blades clearance, for a handy and prompt adjustment.
Alignment device with lighting and control device for shearing stroke are set.
Worktable with balls for material feeding convenient, to minimize fish tail with sheet bar and to reduce frictional resistance.
QC 12K Features
The machine is fitted with CNC controller special for shearing machines.
The position of rear stopper is displayed in real-time manner.
Multi-step programming function is available and the rear stopper is able for automatic operation and continuous positioning, to achieve an automatic adjustment for position of rear stopper.
It is provided with counting function for shearing, to display the shearing numbers in a real-time manner, able for power-failure memory of position of rear stopper, procedures, and parameters.

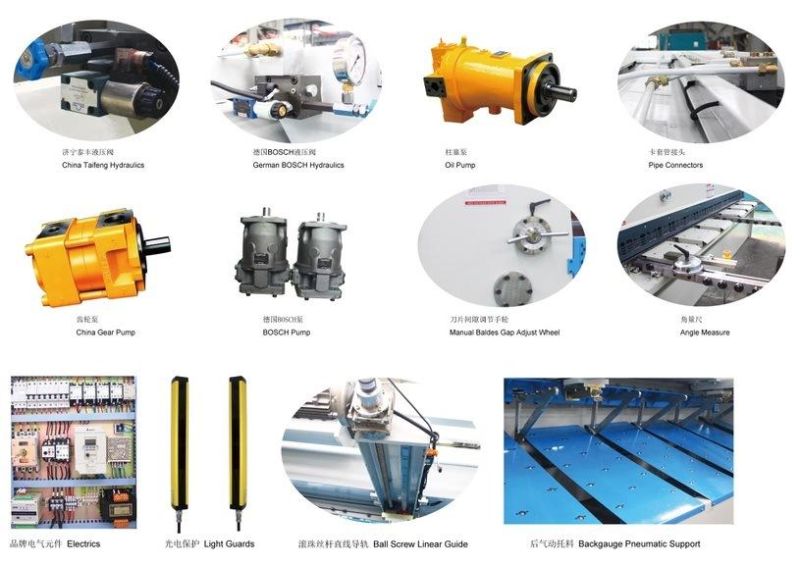

Backgauge with precision ball screw and linear guide, to ensure the positioning precision, so that bring the higher precision processing.
Performance characteristic:
1.Steel plate welded structure,hydraulic transmission,accumulator return,convenient operation,reliable performance,beautiful appearance
2.Edge adjustment signs,adjust light and quickly,continuously variable transmit
3.Lighting device on the line,and continuously variable adjustment of upper tool carrier itinerary
4.Fence type safety protection device
5.Back gauge adopt E10 NC,low noise,high precision
Parameters:
Model | Cutting thickness (mm) | Cutting width (mm) | Cutting angle (°) | Backgauge range(mm) | Stroke number (times/min) | Main motor (kw) | Weight (kg) | Overall dimensions (L*W*H)(mm) |
4*2500 | 4 | 2500 | 1.5 | 20-400 | 10 | 5.5 | 3800 | 3000*1550*1600 |
4*3200 | 4 | 3200 | 1.5 | 20-600 | 10 | 7.5 | 5700 | 3850*1550*1600 |
4*4000 | 4 | 4000 | 1.5 | 20-600 | 8 | 7.5 | 7600 | 4500*1700*1700 |
4*6000 | 4 | 6000 | 1.5 | 20-600 | 5 | 11 | 17800 | 6500*2100*2300 |
6*2500 | 6 | 2500 | 1.5 | 20-600 | 10 | 7.5 | 5500 | 3000*1700*1650 |
6*3200 | 6 | 3200 | 1.5 | 20-600 | 9 | 7.5 | 6500 | 3850*1700*1650 |
6*4000 | 6 | 4000 | 1.5 | 20-600 | 8 | 7.5 | 8200 | 4600*1850*1700 |
8*2500 | 8 | 2500 | 1.5 | 20-600 | 10 | 7.5 | 5800 | 3050*1700*1700 |
8*3200 | 8 | 3200 | 1.5 | 20-600 | 8 | 7.5 | 6800 | 3860*1700*1700 |
8*4000 | 8 | 4000 | 1.5 | 20-600 | 8 | 15 | 8800 | 4650*1700*1700 |
10*2500 | 10 | 2500 | 1.5 | 20-600 | 9 | 15 | 7200 | 3050*1800*1700 |
10*3200 | 10 | 3200 | 1.5 | 20-600 | 9 | 15 | 8500 | 3900*2000*1700 |
10*4000 | 10 | 4000 | 1.5 | 20-600 | 8 | 18.5 | 12500 | 4650*2100*2000 |
12*2500 | 12 | 2500 | 1.5 | 20-800 | 9 | 18.5 | 9800 | 3150*2050*2000 |
12*3200 | 12 | 3200 | 1.5 | 20-800 | 9 | 18.5 | 11600 | 3900*2150*2000 |
12*4000 | 12 | 4000 | 2 | 20-800 | 8 | 18.5 | 13800 | 4700*2150*2100 |
16*2500 | 16 | 2500 | 2 | 20-800 | 9 | 18.5 | 11000 | 3150*2250*2000 |
16*3200 | 16 | 3200 | 2 | 20-800 | 8 | 18.5 | 12600 | 3900*2250*2000 |
16*4000 | 16 | 4000 | 2.5 | 20-800 | 8 | 22 | 17300 | 4650*2250*2200 |
20*2500 | 20 | 2500 | 2.5 | 20-800 | 8 | 30 | 14800 | 3450*2300*2500 |
20*3200 | 20 | 3200 | 2.5 | 20-800 | 8 | 30 | 17000 | 4510*2350*2700 |
20*4000 | 20 | 4000 | 2.5 | 20-800 | 5 | 30 | 23000 | 4850*2600*2800 |
25*2500 | 25 | 2500 | 3 | 20-800 | 5 | 37 | 19000 | 3200*2700*2900 |
25*3200 | 25 | 3200 | 3 | 20-800 | 5 | 37 | 23000 | 4200*2700*3000 |
30*2500 | 30 | 2500 | 3.5 | 20-1000 | 5 | 37 | 28000 | 3300*2900*3000 |
30*3200 | 30 | 3200 | 3.5 | 20-1000 | 5 | 37 | 33000 | 4200*2900*3200 |
Company info:
Our Services
1.Shearing blades and accessories-Customized to your specifications
In our shearing blades, our focus is on first-class, practical, well-thought-out upper and lower tools. Our tools offer solutions to your application cases - even for complex technical ones.
2.Service package
Basic:we offer you rapid troubleshooting through telephone support and costs for on-site missions are reduced.
Special:Engineers available to service machinery overseas for the necessary maintenance.
Partner:Our located dealers or customers who sell or use our machines are fully behind you,they are our friendly partner and supply good advice to you.
3.Technical Service(After-sale service)
Installation and start-up(Available for complex and big machines or if you have demand)
