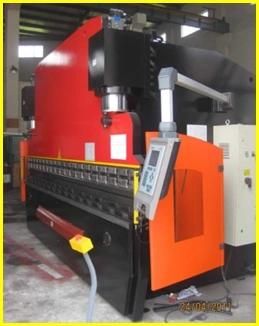

Heavy Duty CNC Bending Machine with Da52
Shanghai Aluke Equipment Co., Ltd.- Condition：New
- Certification：EPA, ISO 9001:2008, CE, CS, ISO 9001:2000
- Automation：Automatic
- Type：Press Brake
- Working Pressure：1000t
- Working Width：5000mm
Base Info
- Model NO.：WC67K 1000T5000 with DA52
- Working Thickness：25mm
- Process Material：Metal Plate
- Application：Textiles, Machinery & Hardware, Apparel
- Type for Fold-bending Machine：CNC Fold-bend Machine
- Transport Package：Steel Tray
- Specification：International Standard
- Trademark：ALUKE
- Origin：China
- HS Code：846229
- Production Capacity：80 Sets, Month
Description
Basic Info.
Model NO. WC67K 1000T5000 with DA52 Working Thickness 25mm Process Material Metal Plate Application Textiles, Machinery & Hardware, Apparel Type for Fold-bending Machine CNC Fold-bend Machine Transport Package Steel Tray Specification International Standard Trademark ALUKE Origin China HS Code 846229 Production Capacity 80 Sets/ MonthProduct Description
1.FunctionsThis machine is high-efficiency and high-precision in bending sheet metal. Using different kinds of upper and lower dies can bend all kinds of work pieces. One slider travel makes a sheet bending and the complicated shape work piece may be achieved through bending many times. When fitted with relevant equipments, it can be used to punch holes.
2.Overall structure
2.1 Using UG (finite element) analysis, through computer aid design, with nice appearance.
2.2 The machine structure is welded with steel plate, with sufficient strength and rigidity. The hydraulic drive prevents the machine from serious overload operation accidents caused by the change of sheet thickness or bad choice of lower die cavity. Additionally, this machine is also featured by the steadiness of work, convenience of operation, and reliable safety.
3.Parts of supply list

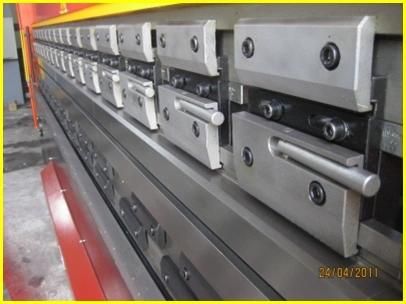

Tool clamping and Press Brake Die
Holland,DELEM DA52 system
Photoelectric protection (Optional)
| Model | WC67K-1000T/5000 |
| Normal pressure | 10000 kN |
| Bending length | 5000 mm |
| Poles distance | 4260 mm |
| Throat depth | 600mm |
| Stroke of slider | 400 mm |
| The height of die-filling | 800mm |
| Slider fast down speed | 70mm/s |
| Slider return speed | 60mm/s |
| Slider working speed | 8mm/s |
| Main power | 2x45 KW |
| CNC | DELEM DA52 |
| Axles | 3+x |
| Stroke of backgauge(X) | 1000mm |
| Speed of backgauge(X) | 100mm/s |
