• Model NO.：QC12K Series
• Type：Cutting Machine
• Pump：Sunny
• Main Motor：Siemens
• Hydraulic Valve：Rexroth
• Pipe Connector：Emb
• Ball Screw：Hiwin
• Seal Ring：Nok
• Transport Package：Plastic Cover
• Specification：CE STANDARD
• Trademark：ZYMT
• Origin：China
• HS Code：8462399000
• Production Capacity：3000sets,Year

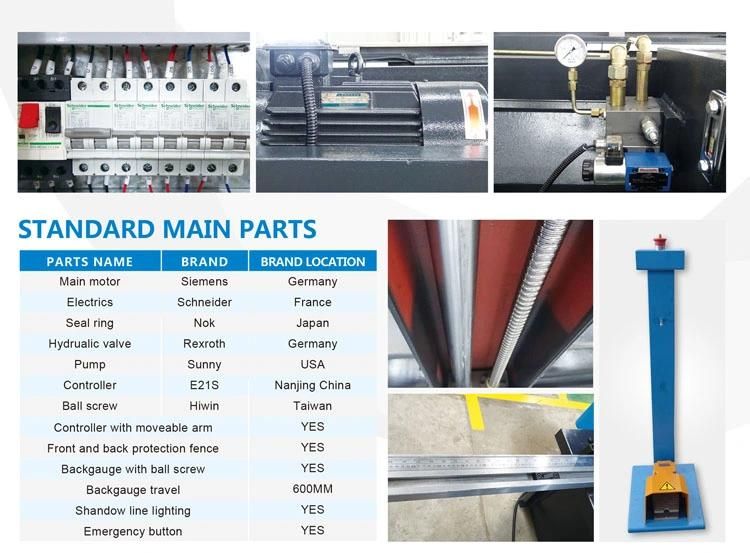

No.Parts NameBrandBrand Location1Main motorSiemensGermany2ElectricsSchneiderFrance3Seal ringNokJapan4Hydraulic valveRexrothGermany5PumpSunnyUSA6ControllerE21SNanjing China7Pipe connectorEMBGermany8Ball screwHiwinTaiwan9Controller with mobile armYES10Front and back protection fenceYES11Backgauge with ball screwYES12Backgauge travel600MM13Shadow line lightYES14Emergency buttonYES


Other standard equipments:
Segmented upper blade 1set (two sides can be use)
Lower blade 1set (four sides can be use)
Front supporting arms 3
Emergency stop button;
Back, and front safty fence
Shadow line lighting
Safety foot switch
Foundation bolts 1set
Manuals and diagram 1book

QC12K Series Technical Parameters:TypeCutting
Thickness
(mm)Cutting Length(mm)Cutting Angle(°)Material Strength
(KN/CM)Stroke (times/min)Power(kw)Weight(kg)Dimension
     (mm)4×2500425001°30'≤450105.538003040*1610*16204×3200432001°30'≤450105.550003840*1610*16204×4000440001°30'≤45085.565004600*1700*17004×6000460001°30'≤45057.5110006460*2100*32006×2500625001°30'≤450107.550003040*1610*16206×3200632001°30'≤45097.560003840*1610*16206×4000640001°30'≤45087.580004620*1750*17006×5000650001°30'≤45067.5105005400*1750*17006×6000660001°30'≤450511165006480*2100*23008×2500825001°30'≤450107.560003040*1700*17008×3200832001°30'≤45087.572003860*1700*17008×4000840001°30'≤45087.588004640*1700*17008×5000850001°30'≤45087.5115005400*2400*20008×6000860001°30'≤450811180006480*2100*235010×25001025001°30'≤45091173003040*1700*170010×32001032001°30'≤45091180003860*1700*170010×40001040001°30'≤450811120004650*2100*200010×60001060002°≤450515240006500*2100*230012×25001225002°≤450918.590003140*2150*200012×32001232002°≤450918.5108003880*2150*200012×40001240002°≤450818.5130004680*2150*200012×50001250002°≤450618.5160005900*2150*200012×60001260002°≤450518.5290006900*2600*270012×80001280002°≤450518.5465009000*3500*350016×25001625002°30'≤450918.5110003140*2150*200016×32001632002°30'≤450818.5130003880*2150*200016×40001640002°30'≤450818.5163004650*2150*220016×50001650002°30'≤450618.5200005900*2600*270016×60001660002°30'≤450522360006900*2700*270020×25002025003°≤450822155003440*2300*250020×32002032003°≤450822180004150*2350*270020×40002040003°≤450522210004850*2350*270025×25002525003°≤450837190003200*2700*290025×32002532003°≤450537230004200*2700*290025×40002540003°≤450537270003850*2700*290030×25003025003°≤450537235003300*2900*290030×32003032003°≤450537275004200*2900*2900

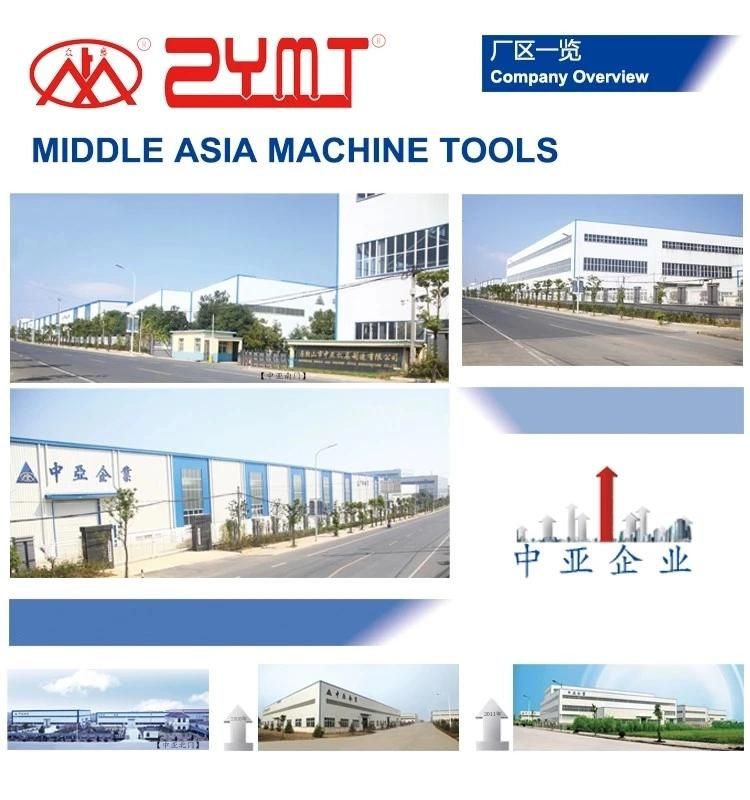

Company Introduction:
1.Maanshan Middle Asia Machine Tools Manufacture Co.,Ltd founded in 2001.
2.Total number of emploee: 500

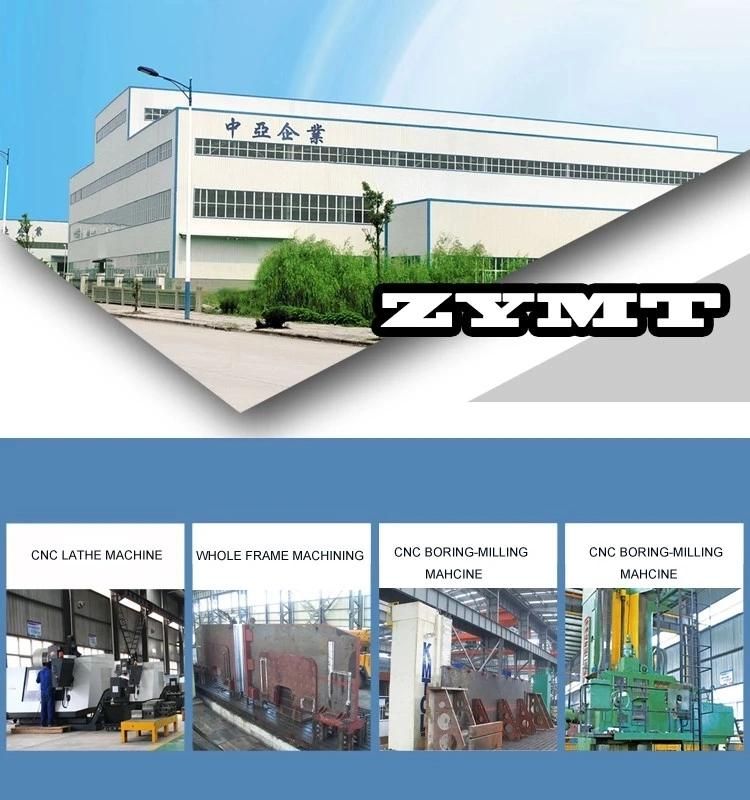

3.All kinds of sophisticated equipment more than 100 sets.
4.Production plant area:60,000.
5.Whole factory is controlled by ERP-Enterprise Resource Plan.
6.CE/SGS/ISO9001 certification.

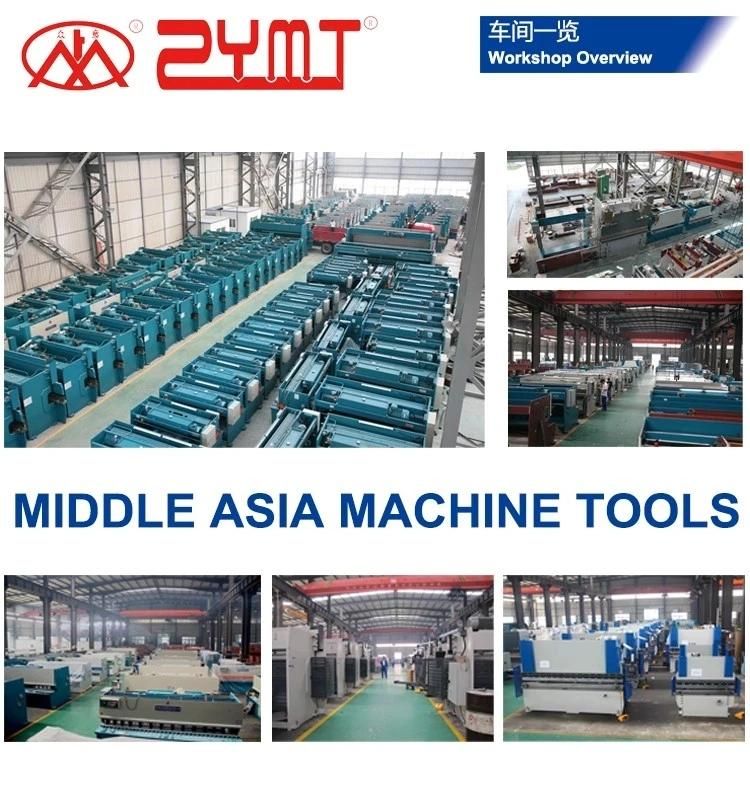

We are producing below ranges of machines:

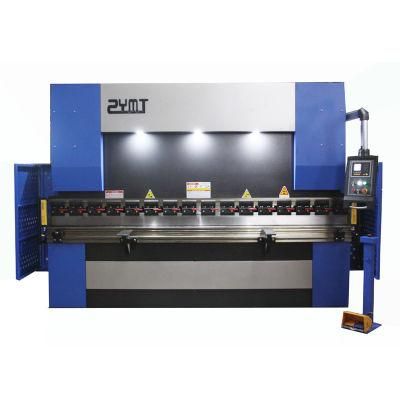

1.NC/CNC Press Brake
2.NC/CNC Shearing Machine
3,Rolling Machine
4.Iron Worker
5.Power Press
6.Hydraulic Press
