• Model NO.：GT-CS-335
• Type：CNC Spring Coiling Machine
• Application：Spring Coiling
• After-Sales Service Provided：Engineers Available to Service Machinery Overseas
• Transport Package：Standard Fumugated Wooden Case
• Specification：1420x1100x1800mm
• Trademark：XINSHENG
• Origin：Guangdong, China (Mainland)
• HS Code：8463300000
• Production Capacity：10 Set Per Month

Basic Info.

Model NO. GT-CS-335 Type CNC Spring Coiling Machine Application Spring Coiling After-Sales Service Provided Engineers Available to Service Machinery Overseas Transport Package Standard Fumugated Wooden Case Specification 1420x1100x1800mm Trademark XINSHENG Origin Guangdong, China (Mainland) HS Code 8463300000 Production Capacity 10 Set Per Month

Product Description

CNC Spring Coiling Machine with High Quality



CNC spring coiling machine is to expertly produce kinds of coiling springs fully automatically.

It is suitable for wire size from 1.2mm up to 3.5mm.



Technical Parameter:



1. Axis: 3

2. wire size range: 1.2 - 3.5mm

3. Max. outsider dia.: 65mm

4. feeding speed: 0-127M/Min

5. Max. feeding length: unlimited

6. production speed: 0-150 pcs/minute

7. cam setting value: +/-0.1-+/-359.9

8. wire feed motor: 5.5kw

9. cam motor: 5.5kw

10. pitch motor:1.0kw

11. powe AC: 380V/3P/50HZ

12. Dimension: 1420x1100x1800mm

13. Weight: 1350kg



Packaging & Shipping

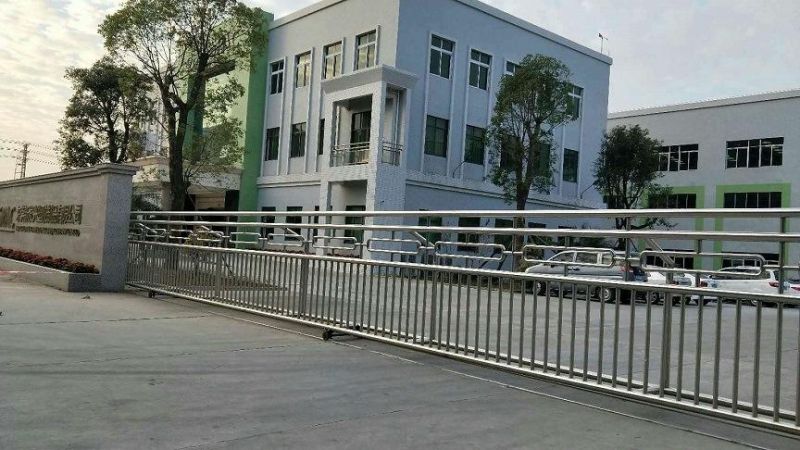

Company Information
