High Quality Steel Wire Camless CNC Spring Making Machine
Dongguan Xinsheng Hardware Machinery Co., Ltd.- Warranty：1 Year
- Wire Dia(mm)：0.2-2.5mm
- Weight：980kg
- Machine Type：CNC
- After-Sales Service Provided：Engineers Available to Service Machinery Overseas
- Feeding Length：Unlimited
Base Info
- Min. Wire Feeding Value (mm)：0.01
- Max. Wire Feeding Value (mm)：10000
- Axes：10
- Transport Package：Standard Fumigated Wooden Case
- Trademark：WG
- Origin：Guangdong, China (Mainland)
Description
Model
GT20-10
GT25-10
GT30-12R
GT35-10
GT35-12R
GT45-12R
GT50-12R
GT60-12R
GT80-12R
GT100-12R
GT120-12R
Wire dia(mm)
0.2-2.0
0.2-2.5
0.4-3.0
0.8-3.5
0.8-3.5
1.2-4.5
1.2-5.0
2.0-6.0
3.0-8.0
4.0-10.0
5.0-12.0
Max. wire feeding value (mm)
10000
10000
10000
10000
10000
10000
10000
10000
10000
10000
10000
Min. wire feeding value (mm)
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
Max. wire feeding speed (m/min)
120
120
120
120
80
80
80
80
80
60
60
Max. wire feeding length
Unlimited
Unlimited
Unlimited
Unlimited
Unlimited
Unlimited
Unlimited
Unlimited
Unlimited
Unlimited
Unlimited
Axis number
10
10
12
10
12
12
12
12
12
12
12
Total output power of servo motors(kw)
6.6KW
10.0KW
13.3KW
14.2KW
17.6KW
21.8KW
22.9KW
39.8KW
55.0KW
86.3KW
96.6KW
Input power supply (V/HZ/PH)
380/50/3
380/50/3
380/50/3
380/50/3
380/50/3
380/50/3
380/50/3
380/50/3
380/50/3
380/50/3
380/50/3
Control system
Made in Taiwan
Made in Taiwan
Made in Taiwan
Made in Taiwan
Made in Taiwan
Made in Taiwan
Made in Taiwan
Made in Taiwan
Made in Taiwan
Made in Taiwan
Made in Taiwan
Program storage (plus)
3000
3000
3000
3000
3000
3000
3000
3000
3000
3000
3000
Compressor air pressure (kg/cm)
5-6
5-6
5-6
5-6
5-6
5-6
5-6
5-6
5-6
5-6
5-6
Probe number
3
3
3
3
3
3
3
3
3
3
3
Overall length(mm)
1100
1200
1500
1400
2200
2650
2650
3500
3500
4200
4300
Overall width(mm)
800
1250
1250
1550
1550
1800
1800
2150
2150
2350
2500
Overall height(mm)
1550
1760
1860
1800
1850
2070
2070
2150
2150
2580
2650
Net weight(kg)
700
980
1500
1600
2500
4100
4500
7000
7200
12000
15000
Advantages:
1:high production capacity
2:Stable performance and high precision
3:Easy to operate,automatic

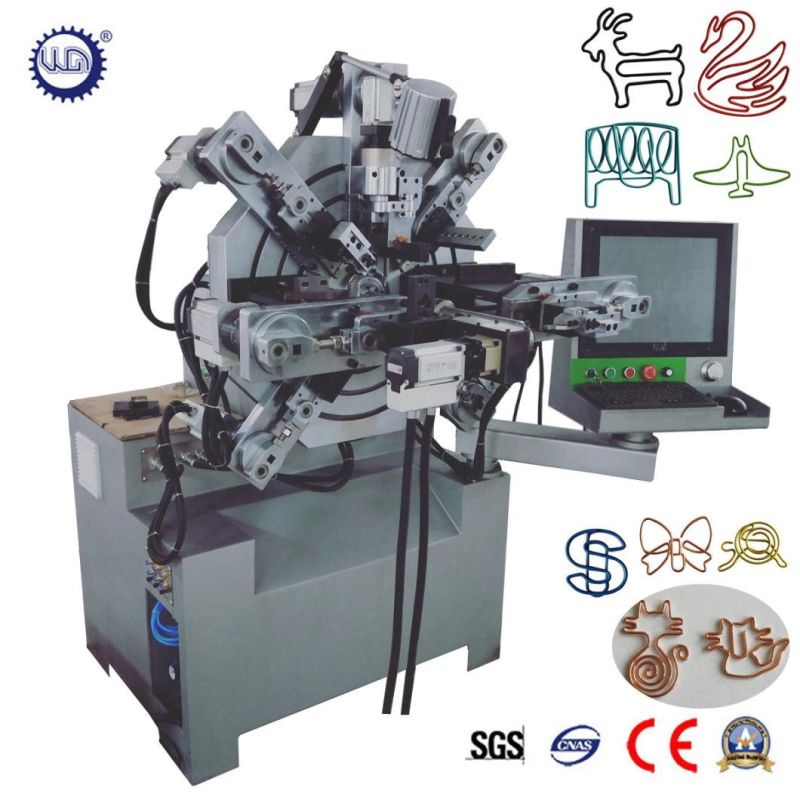

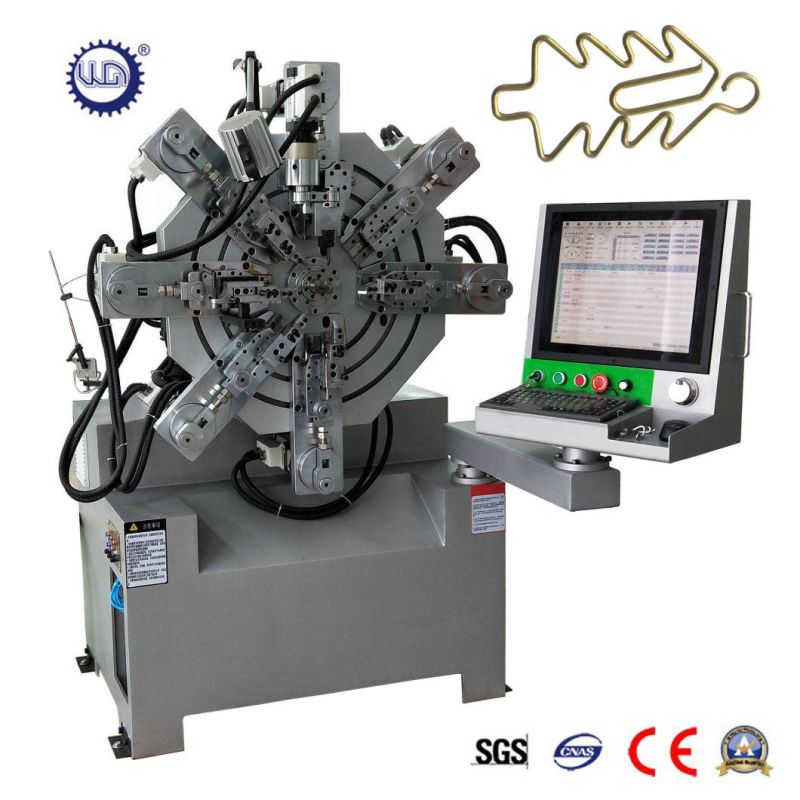

Machine and product show:
