• Application：Steel
• Voltage：220V,380V,415V,440V,Customized
• Color：Blue
• Transport Package：Standard Wooden Box
• Trademark：WG
• Origin：Guangdong, China (Mainland)

Basic Info.

Application Steel Voltage 220V/380V/415V/440V/Customized Color Blue Transport Package Standard Wooden Box Trademark WG Origin Guangdong, China (Mainland)

Product Description

Product Description

CNC spring coiling machine is used for spring coiling and producing compression spring specifically. Adopted Taiwanese controlling system and Japanese servo motor, we are striving to make the high quality machine for you.

Model	GT-CS-335
Line Diameter	0.8-3.5	mm
Max. Outide Dia.	50	mm
Axis	3
Feeding Length	Unlimited
Feeding Speed	0-120	m/min
Production Rate	0-130	pcs/min
Power of Feeding Servo Motor	5.5	kw
Power of Cam Servo Motor	5.5	kw
Power of Pitch(Quill) Motor	1.0	kw
Size(L*W*H)	110*92*170	cm3
Weigh	1200.0kg	kg

Main Advantages:

○Friendly & straightforward operating display
○Complete & convenient system setting

○High production rate while precision insurance provided

Detailed Images

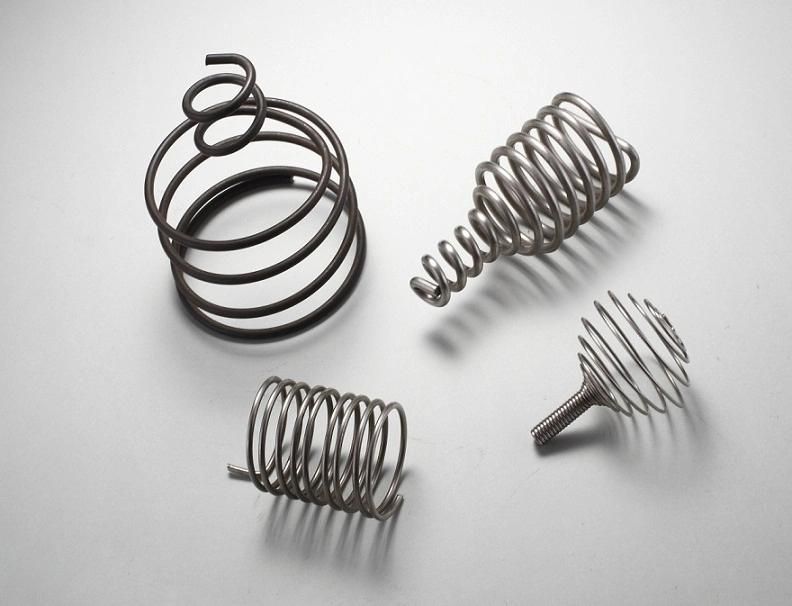

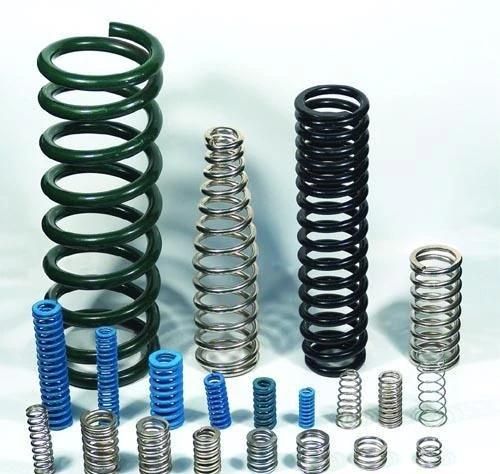

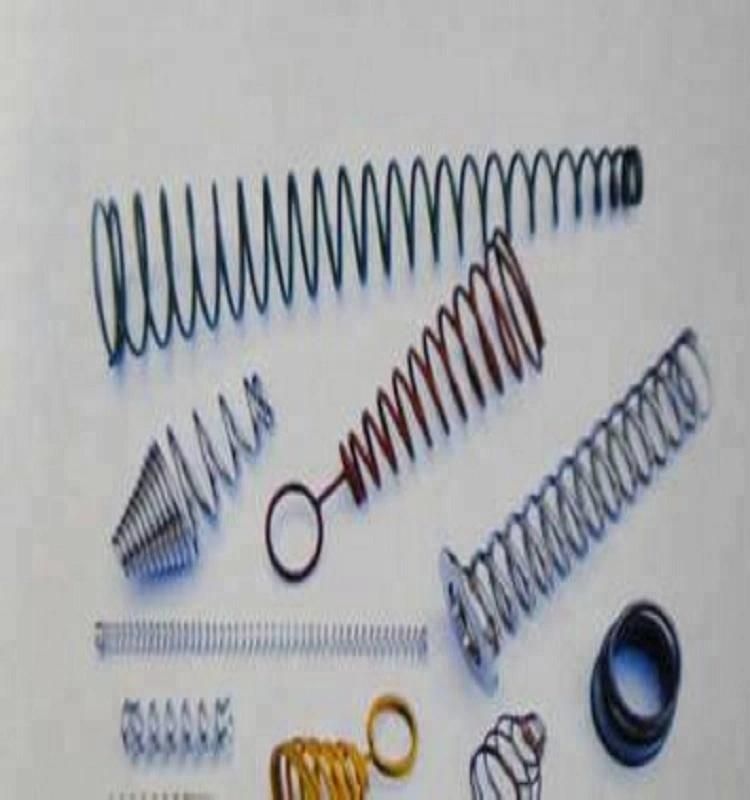

CNC Spring Coiling Machine can be used to produce all kinds of compression spring.

It has good performance at both precision and speed. Operating procedure is easy, you can just start off in the display, which is bilingual(English optional).

CertificationsPacking & Delivery

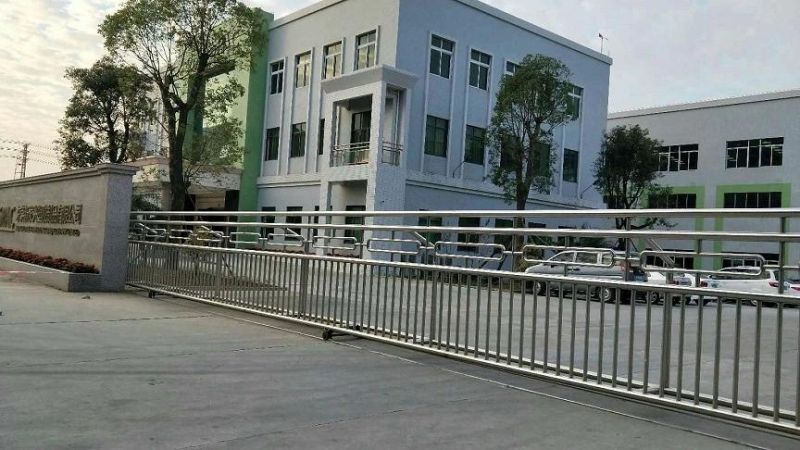

Our Company

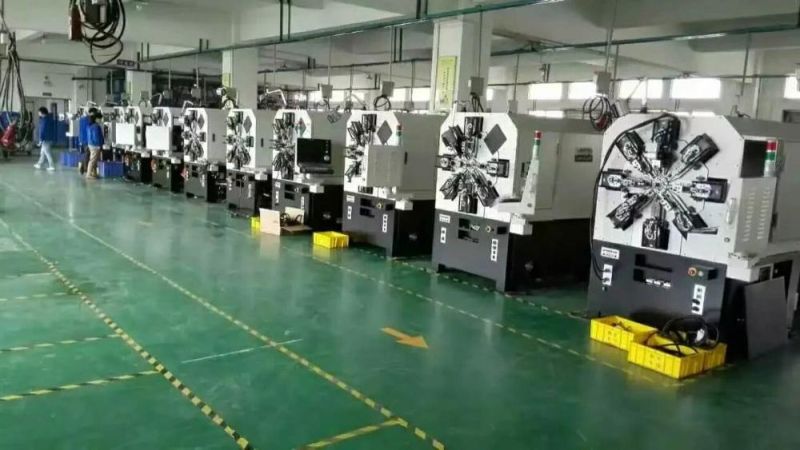

Dongguan Xinsheng Hardware Machinery Co., Ltd. is a professional manufacturer of machinery, which can produce different types of wire bending machine in designed order and customized order. For years, we're focusing on a series of machines for wire bending, a wide range of diversity, competitive price and on-time delivery.
