Hydraulic Sheet Metal Cutting Machine Metal Plate Cutting Machine

Maanshan Middle Asia Machine Tools Manufacture Co., Ltd.
  • Condition：New
  • Certification：ISO 9001:2008, CE
  • Cutting Thickness：4mm
  • Cutting Length：3200mm
  • Controller System：Estun E21s
  • Transport Package：Plastic Cover

Base Info

  • Model NO.：QC12Y,QC12K-4,3200
  • Specification：CE STANDARD
  • Trademark：ZYMT
  • Origin：China
  • HS Code：8462399000
  • Production Capacity：3000sets,Year

Description

YES
Other standard equipments:
Segmented upper blade 1set (two sides can be use)
Lower blade 1set (four sides can be use)
Front supporting arms 3
Emergency stop button;
Back, and front safty fence
Shadow line lighting
Safety foot switch
Foundation bolts 1set
Manuals and diagram 1book

QC12K Series Technical Parameters:TypeCutting
Thickness
(mm)Cutting Length(mm)Cutting Angle(°)Material Strength
(KN/CM) Stroke (times/min)Power(kw)Weight(kg)Dimension(mm)4×2500425001°30'≤450105.538003040*1610*16204×3200432001°30'≤450105.550003840*1610*16204×4000440001°30'≤45085.565004600*1700*17004×6000460001°30'≤45057.5110006460*2100*32006×2500625001°30'≤450107.550003040*1610*16206×3200632001°30'≤45097.560003840*1610*16206×4000640001°30'≤45087.580004620*1750*17006×5000650001°30'≤45067.5105005400*1750*17006×6000660001°30'≤450511165006480*2100*23008×2500825001°30'≤450107.560003040*1700*17008×3200832001°30'≤45087.572003860*1700*17008×4000840001°30'≤45087.588004640*1700*17008×5000850001°30'≤45087.5115005400*2400*20008×6000860001°30'≤450811180006480*2100*235010×25001025001°30'≤45091173003040*1700*170010×32001032001°30'≤45091180003860*1700*170010×40001040001°30'≤450811120004650*2100*200010×60001060002°≤450515240006500*2100*230012×25001225002°≤450918.590003140*2150*200012×32001232002°≤450918.5108003880*2150*200012×40001240002°≤450818.5130004680*2150*200012×50001250002°≤450618.5160005900*2150*200012×60001260002°≤450518.5290006900*2600*270012×80001280002°≤450518.5465009000*3500*350016×25001625002°30'≤450918.5110003140*2150*200016×32001632002°30'≤450818.5130003880*2150*200016×40001640002°30'≤450818.5163004650*2150*220016×50001650002°30'≤450618.5200005900*2600*270016×60001660002°30'≤450522360006900*2700*270020×25002025003°≤450822155003440*2300*250020×32002032003°≤450822180004150*2350*270020×40002040003°≤450522210004850*2350*270025×25002525003°≤450837190003200*2700*290025×32002532003°≤450537230004200*2700*290025×40002540003°≤450537270003850*2700*290030×25003025003°≤450537235003300*2900*290030×32003032003°≤450537275004200*2900*2900

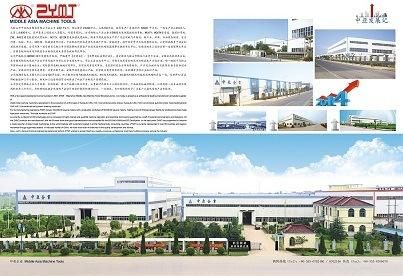

Company Introduction:
1.Maanshan Middle Asia Machine Tools Manufacture Co.,Ltd founded in 2001.
2.Total number of emploee: 500
3.All kinds of sophisticated equipment more than 100 sets.
4.Production plant area:60,000.
5.Whole factory is controlled by ERP-Enterprise Resource Plan.
6.CE/SGS/ISO9001 certification.

We are producing below ranges of machines:
1.NC/CNC Press Brake
2.NC/CNC Shearing Machine
3,Rolling Machine
4.Iron Worker
5.Power Press
6.Hydraulic Press


Hydraulic Sheet Metal Cutting Machine Metal Plate Cutting Machine

Hydraulic Sheet Metal Cutting Machine Metal Plate Cutting Machine

Hydraulic Sheet Metal Cutting Machine Metal Plate Cutting Machine
Our Services
1.Shearing blades and accessories-Customized to your specifications
In our shearing blades, our focus is on first-class, practical, well-thought-out upper and lower tools. Our tools offer solutions to your application cases - even for complex technical ones.
2.Service package
Basic:we offer you rapid troubleshooting through telephone support and costs for on-site missions are reduced.
Special:Engineers available to service machinery overseas for the necessary maintenance.
Partner:Our located dealers or customers who sell or use our machines are fully behind you,they are our friendly partner and supply good advice to you.
3.Technical Service(After-sale service)

Certifications:
Hydraulic Sheet Metal Cutting Machine Metal Plate Cutting Machine
