• Model NO.：QC12Y,QC12K-16,4000
• Type for Cutting Machine：Hydraulic Cutting Machine
• Type：Cutting Machine
• Main Motor：Germany Siemens
• Hydraulic Valve：USA First
• Warranty：12 Months
• Leading Time：15-30 Days
• Color：Customised
• Cutting Angle：0.5-3 Degree
• Transport Package：Plastic Cover
• Specification：CE STANDARD
• Trademark：ZYMT
• Origin：China
• HS Code：8462399000
• Production Capacity：3000sets,Year

Basic Info.

Model NO. QC12Y/QC12K-16/4000 Type for Cutting Machine Hydraulic Cutting Machine Type Cutting Machine Main Motor Germany Siemens Hydraulic Valve USA First Warranty 12 Months Leading Time 15-30 Days Color Customised Cutting Angle 0.5-3 Degree Transport Package Plastic Cover Specification CE STANDARD Trademark ZYMT Origin China HS Code 8462399000 Production Capacity 3000sets/Year

Product Description

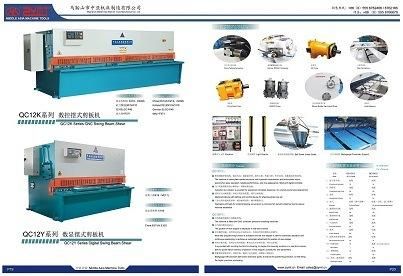

Shearing Machine/CNC Sheet Cutting Machine/Hydraulic Swing Beam Shear1. Digital display
2. 1 year warranty
3. Delivey time: 35 days
4. High quality

Features:
The machine is fitted with CNC controller special for shearing machines.
The position of rear stopper is displayed in real-time manner.
Multi-step programming function is available and the rear stopper is able for automatic operation and continuous positioning, to achieve an automatic adjustment for position of rear stopper.
It is provided with counting function for shearing, to display the shearing numbers in a real-time manner, able for power-failure memory of position of rear stopper, procedures, and parameters.
Back gauge with precision ball screw and liner guide, to ensure the positioning precision, so that bring the higher precision processing.

Main Equipments:
Main Motor: Germany Siemens;
Pump: Chinese Gear pump;
Electrics: France Schneider;
O-rings: Japanese NOK;
Hydraulic valve: Germany Rexroth;
Pipe conector: Germay EMB;
Footswitch: South Korea Karcon;
Ball screw: Taiwan Hiwin
Simple NC controller: Estun E21s

Other standard equipments:
Segmented upper blade 1set (two sides can be use)
Lower blade 1set (four sides can be use)
Front supporting arms 3
Emergency stop button;
Back, and front safty fence
Shadow line lighting
Safety foot switch
Foundation bolts 1set
Manuals and diagram 1book

Parameters:

Type	Cutting Thickness(mm)	Cutting Length(mm)	Cutting Angle(°)	Materail Strength(KN/CM)	Stroke(times/min)	Power	Dimension	Weight
16*4000	16	4000	2.5	≤450	8	18.5	4650*2150*2200	16300

 More details:

Related products:

Packaging & Shipping

(1)before packing,the machine tool will be testing for 48 hours to ensure all the equipment is 100% qualitied.
(2)before loading,stable package,professional and skilled loader reduce damage of product during transport.
(3)after loading,our professional documentary staff will follow the order till the product departs from port.

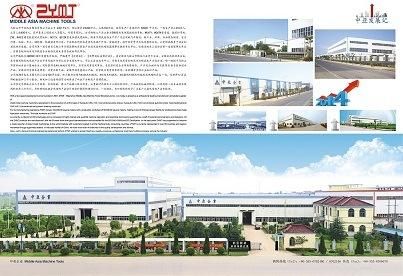

Company Introduction:
1.Maanshan Middle Asia Machine Tools Manufacture Co.,Ltd founded in 2001.
2.Total number of emploee: 500
3.All kinds of sophisticated equipment more than 100 sets.
4.Production plant area:60,000.
5.Whole factory is controlled by ERP-Enterprise Resource Plan.
6.CE/SGS/ISO9001 certification.

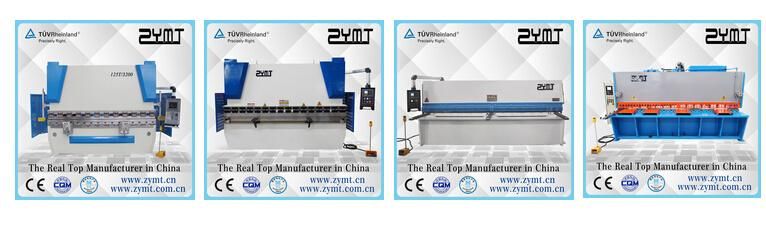

We are producing below ranges of machines:
1.NC/CNC Press Brake
2.NC/CNC Shearing Machine
3,Rolling Machine
4.Iron Worker
5.Power Press
6.Hydraulic Press




Our Services

1.Shearing blades and accessories-Customized to your specifications
In our shearing blades, our focus is on first-class, practical, well-thought-out upper and lower tools. Our tools offer solutions to your application cases - even for complex technical ones.

2.Service package

Basic:we offer you rapid troubleshooting through telephone support and costs for on-site missions are reduced.

Special:Engineers available to service machinery overseas for the necessary maintenance.

Partner:Our located dealers or customers who sell or use our machines are fully behind you,they are our friendly partner and supply good advice to you.

3.Technical Service(After-sale service)

Installation and start-up(Available for complex and big machines or if you have demand)

FAQ
If you want to get more information,you can contact me via:

WEB: http://leolivia.en.made-in-china.com
