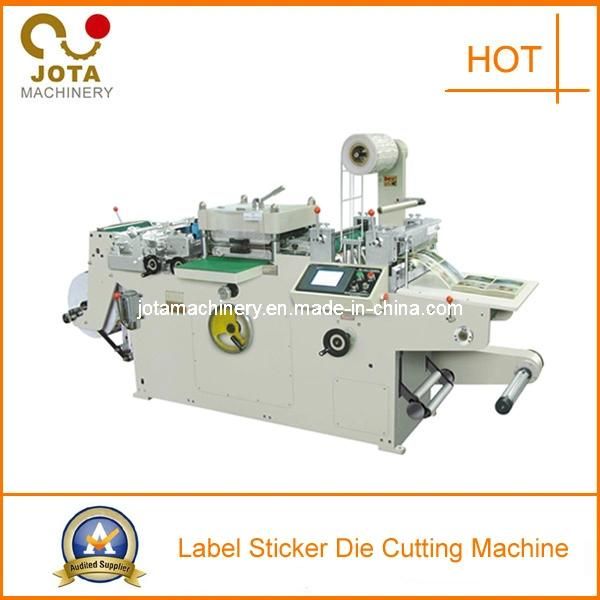

Self-Adhesive Label Roll Die-Cutter (JT-ADC-320)

Jota Machinery Industrial (Kunshan) Co., Ltd.
  • Condition：New
  • Certification：ISO 9001:2008, Ce
  • Automation：Automatic
  • Model：Self-Adhesive Label Roll Die-Cutter
  • PLC：Mitsubishi
  • Touch Screen：High Tech From Taiwan

Base Info

  • Model NO.：JT-ADC-320
  • Servo Motor：Yaskawa
  • Photocell：3 Photocells
  • Material：Adhesive Label, Sticker, Logo, Paper...
  • Speed：20-125m,Min
  • Punching System：Customizable
  • Lamination System：Customizable
  • Emergency Switch：Adopted
  • Application：Machinery & Hardware
  • Type for Cutting Machine：CNC Cutting Machine
  • Type for Fold-Bending Machine：CNC Fold-Bend Machine
  • Transport Package：in Flexible Wrapping, Some Important Parts in Wood
  • Specification：2.6*0.95*1.4m
  • Trademark：JOTAMACHINERY
  • Origin：Ruian, Zhejiang, China
  • HS Code：84411000
  • Production Capacity：50sets,Month

Description

Basic Info.

Model NO. JT-ADC-320 Servo Motor Yaskawa Photocell 3 Photocells Material Adhesive Label, Sticker, Logo, Paper... Speed 20-125m/Min Punching System Customizable Lamination System Customizable Emergency Switch Adopted Application Machinery & Hardware Type for Cutting Machine CNC Cutting Machine Type for Fold-Bending Machine CNC Fold-Bend Machine Transport Package in Flexible Wrapping, Some Important Parts in Wood Specification 2.6*0.95*1.4m Trademark JOTAMACHINERY Origin Ruian, Zhejiang, China HS Code 84411000 Production Capacity 50sets/Month

Product Description

Self-Adhesive Label Roll Die-Cutter
Self-Adhesive Label Roll Die-Cutter (JT-ADC-320)

Adhesive Label(logo) die-cutting Machine
PLC control and Meter Counter
Shafless control system
Blade scrape system

Specifications:

Adhesive Label(logo) die-cutting Machine adopts accirate flatten die-cutting system, material towing controlled by computer, web-guilding by three photoelectric eyes. Die cutting, waste rewinding and finished-material rewinding are finished in one process. It is suitabke for die cutting of adhesive paper, Dacron label and laser hologram mark.
This is the ideal association equipment for the flexo printing machine. Silk screen printing machine, gravure printing machine and hologram mark printing machine, and it's the most effective machine for printing house. Main Technical Parameters

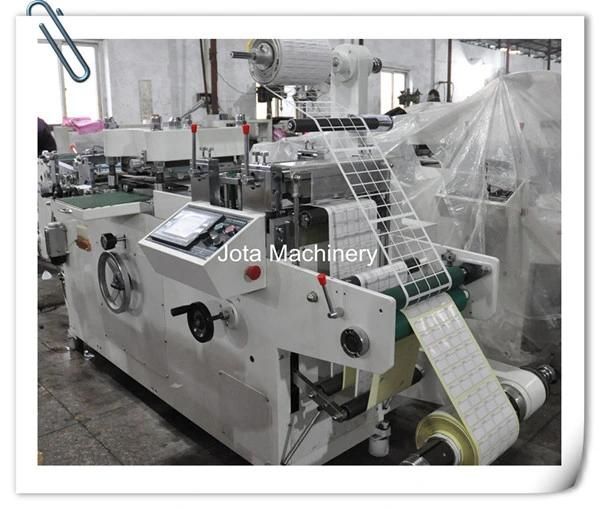

Self-Adhesive Label Roll Die-Cutter (JT-ADC-320)

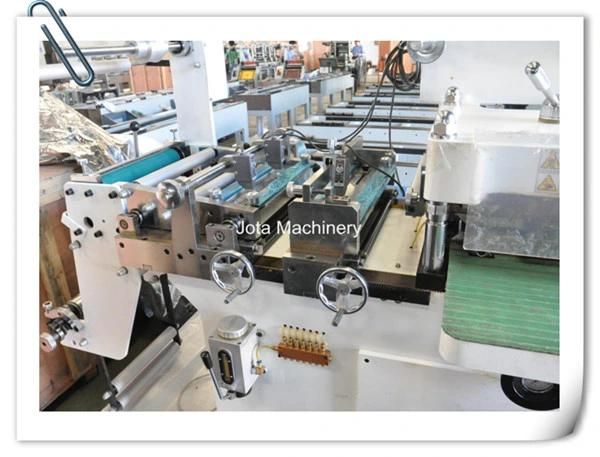

Self-Adhesive Label Roll Die-Cutter (JT-ADC-320)

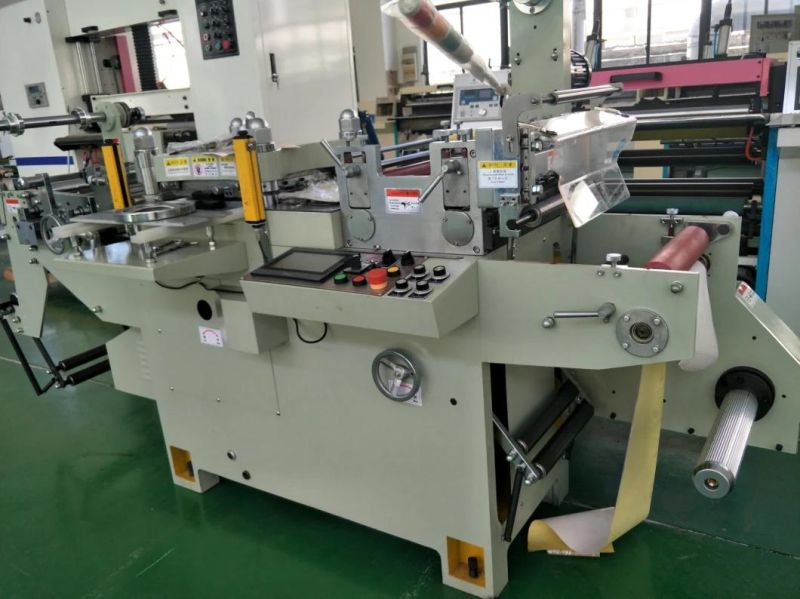

Self-Adhesive Label Roll Die-Cutter (JT-ADC-320)
ModelSelf-Adhesive Label Roll Die-Cutter
Cutting Speed20-125 m/min
Max. Unwinding Dia.450mm
Max. Web Width320 mm
Max. Mould Cutting Width300 mm
Max. Mould Cutting Length290 mm
Orientation Accuracy±0.15 mm
Total Power3 Kw
Power Voltage220V±10%
WeightAbout 1500 Kg
Overall Dimensions(LxWxH)2.6x0.95x1.4 m
