• Model NO.：BYPQ
• Trademark：BCD bedding machinery
• Origin：Nanjing, China
• HS Code：84774090
• Production Capacity：30 Sets,Month

Basic Info.

Model NO. BYPQ Trademark BCD bedding machinery Origin Nanjing, China HS Code 84774090 Production Capacity 30 Sets/Month

Product Description

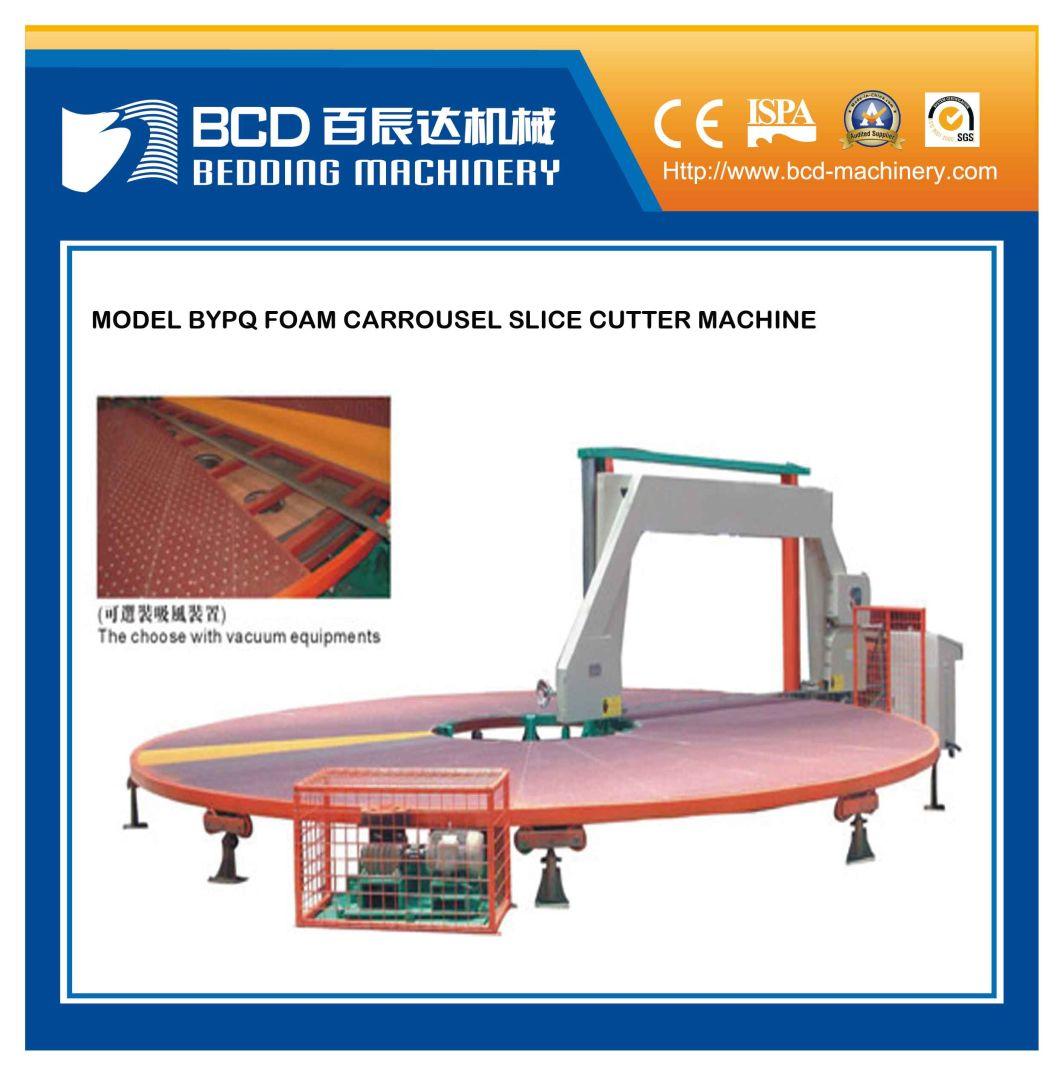

Foam Disc Slice Cutting Machine (BYPQ)Main application and performance
This machine is mainly used for continuous horizontal cutting of multi foam blocks .Its feature as: the most advanced inverter speed controller technology , fully diigital controlling , accurate cutting ,high reliability ,high work efficiency .The max. diamter can beφ10.5M(newly developped),it can continuous cut foam blocks at W2150×L4500mm.(Vacuum work table is optional).



Model no.	BYPQ-60	BYPQ-70	BYPQ-100
Cutting size	W1.5×L2×L1.2M (4pcs)	W1.5×L2×L1.2M (5pcs)	W1.5×L2×L1.2M (8pcs)
Cutting size max.	W1.5×L2×L1.2M (4pcs)	W2.15×L3×L1.2M (3pcs)	W2.15×L4.5×L1.2M (3pcs)
Total power	8.12KW	8.92KW	10.52KW
Table rev	0~3.5r/min	3~3.0r/min	0~2.0r/min
Blade length	8940mm	10000mm	10240mm
Table dia.	φ6M	φ7M	φ10.5M
Slice thickness	2~150mm	2~150mm	2~150mm
Machine weight	3300Kg	3500Kg	3800Kg
Machine dimension	L6900×W6000×H2400mm	L7900×W7000×H2400mm	L11.500×W11000×H2400mm
