Wdh Series CNC Electro-Hydraulic Servo Synchronized Press Brake
Jinan Euro-Asia Int'l Co., Ltd.- Condition：New
- Certification：CE
- Automation：Automatic
- Suitable for：Alloy, Carbon Steel, Stainless Steel
- Type：Hydraulic Bending Machine
- Transport Package：Plywood Cases or as Customized
Base Info
- Model NO.：WDH
- Specification：Worktable width: 74mm; Bending length: 3100mm;
- Trademark：EOA JFMI
- Origin：China
- Production Capacity：200 Sets Per Month
Description
WDB 100-31001000 3100 74 2600 400 Ram stroke mm Max. Open height mm Ram speed mm/sec X-axis travel Back gauge speed 200 450 10 600 250
Advantages:

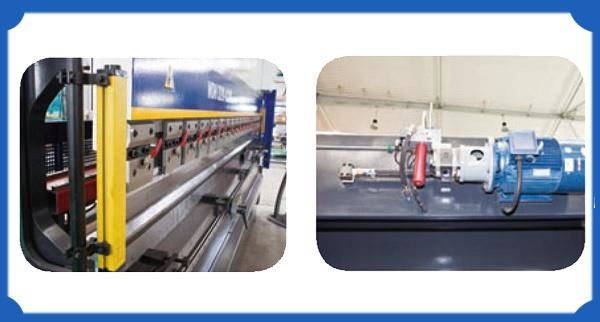

1. Dual-rail slider
2.The upper tooling is clamped quickly by manual work and changed in fast and safe way. The lower tooling is 2V opening type,convenient and high accuracy.
3.German Heidenhain Precision Linear Encoder

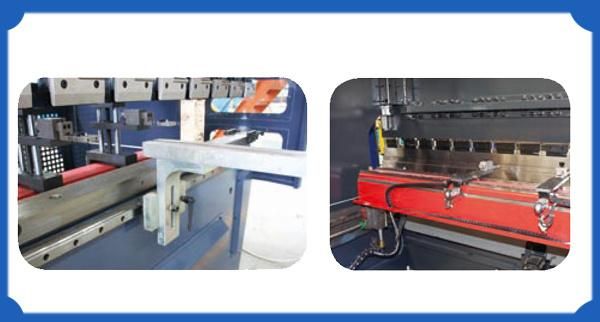

4.Back gauge controlled by AC servo motor, with precision ball screws and linear guide ways. Back gauge dual-rail structure, to maintain high precision and convenient adjustment.
Four block toes structure which can move along with guide rail.
5.The overall length bothway electric VILA-style table has CNC automatic compensation function.
The unique design can compensate for the deflection of the lower tooling.
The amount of compensation is set automatically by the numerical control system to ensure that the full bending angle of the same, so that the workpiece straightness is higher.
Advantages:
1. Dual-rail slider
2.The upper tooling is clamped quickly by manual work and changed in fast and safe way. The lower tooling is 2V opening type,convenient and high accuracy.
3.German Heidenhain Precision Linear Encoder
4.Back gauge controlled by AC servo motor, with precision ball screws and linear guide ways. Back gauge dual-rail structure, to maintain high precision and convenient adjustment.
Four block toes structure which can move along with guide rail.
5.The overall length bothway electric VILA-style table has CNC automatic compensation function.
The unique design can compensate for the deflection of the lower tooling.
The amount of compensation is set automatically by the numerical control system to ensure that the full bending angle of the same, so that the workpiece straightness is higher.
