Carrousel Foam Cutting Machine
Nanjing BCD Bedding Machinery Co., Ltd.- Condition：New
- Certification：ISO 9001:2000, CE
- Automation：Automatic
- Suitable for：Rubber
- Transport Package：Well Protected Package
- Specification：CE SGS
Base Info
- Model NO.：BYPQ
- Trademark：BCD bedding machinery
- Origin：Nanjing, China
- HS Code：84774090
- Production Capacity：30 Sets,Month
Description
Basic Info.
Model NO. BYPQ Trademark BCD bedding machinery Origin Nanjing, China HS Code 84774090 Production Capacity 30 Sets/MonthProduct Description

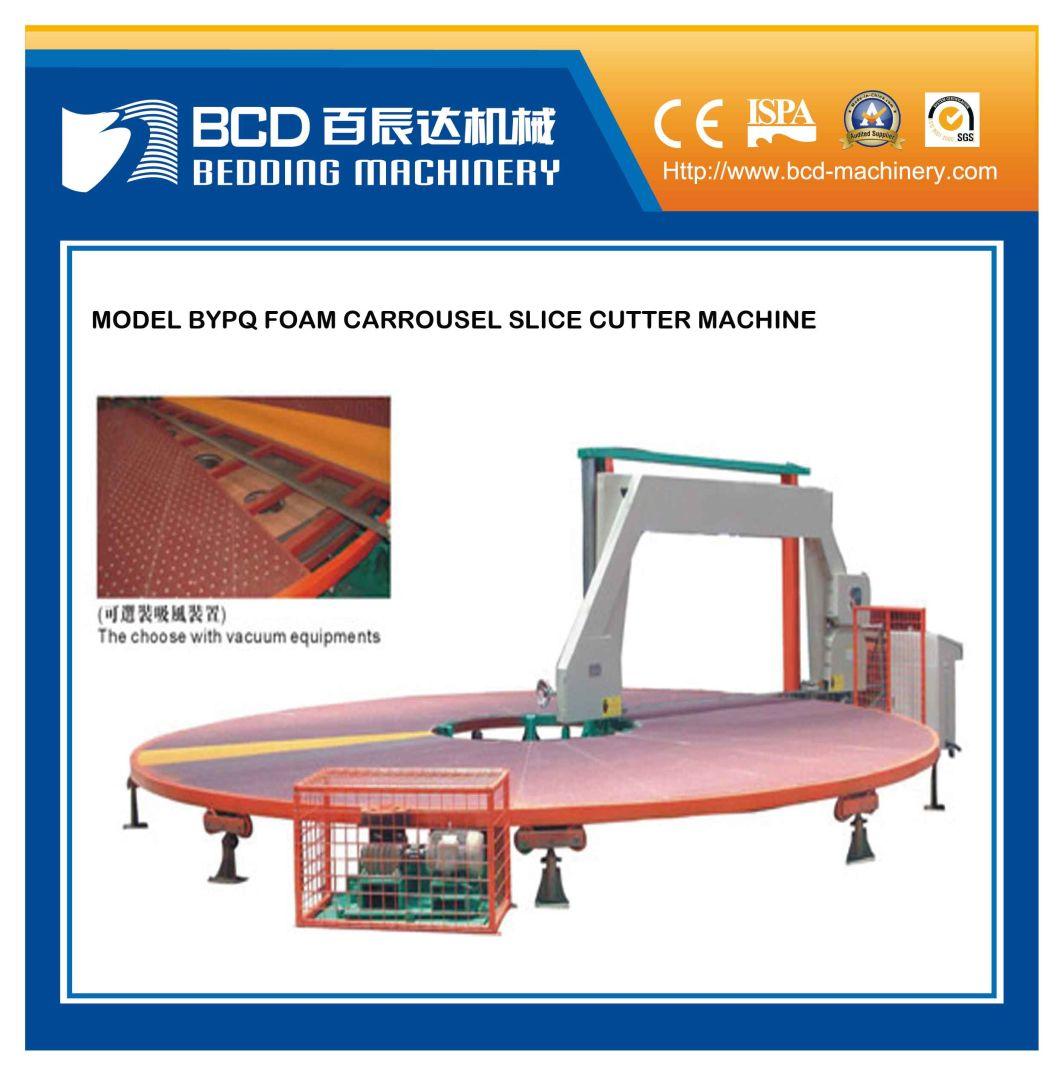

Foam Disc Slice Cutting Machine (BYPQ)Main application and performanceThis machine is mainly used for continuous horizontal cutting of multi foam blocks .Its feature as: the most advanced inverter speed controller technology , fully diigital controlling , accurate cutting ,high reliability ,high work efficiency .The max. diamter can beφ10.5M(newly developped),it can continuous cut foam blocks at W2150×L4500mm.(Vacuum work table is optional).
| Model no. | BYPQ-60 | BYPQ-70 | BYPQ-100 |
| Cutting size | W1.5×L2×L1.2M (4pcs) | W1.5×L2×L1.2M (5pcs) | W1.5×L2×L1.2M (8pcs) |
| Cutting size max. | W1.5×L2×L1.2M (4pcs) | W2.15×L3×L1.2M (3pcs) | W2.15×L4.5×L1.2M (3pcs) |
| Total power | 8.12KW | 8.92KW | 10.52KW |
| Table rev | 0~3.5r/min | 3~3.0r/min | 0~2.0r/min |
| Blade length | 8940mm | 10000mm | 10240mm |
| Table dia. | φ6M | φ7M | φ10.5M |
| Slice thickness | 2~150mm | 2~150mm | 2~150mm |
| Machine weight | 3300Kg | 3500Kg | 3800Kg |
| Machine dimension | L6900×W6000×H2400mm | L7900×W7000×H2400mm | L11.500×W11000×H2400mm |
