• Model NO.：WC67Y-200,3200
• Digital Readout：E21 Digital Readout
• Application：Machinery & Hardware,
• Type for Fold-bending Machine：CNC Fold-bend Machine
• Rated pressure：2000mm
• Working table length：3200mm
• Transport Package：Steel Pallet
• Specification：Force 200t, Length3200mm
• Trademark：HAVEN
• Origin：China
• HS Code：8466
• Production Capacity：50 Units,Month

Basic Info.

Model NO. WC67Y-200/3200 Digital Readout E21 Digital Readout Application Machinery & Hardware, Type for Fold-bending Machine CNC Fold-bend Machine Rated pressure 2000mm Working table length 3200mm Transport Package Steel Pallet Specification Force 200t, Length3200mm Trademark HAVEN Origin China HS Code 8466 Production Capacity 50 Units/Month

Product Description

Sheet metal WC67Y bending machine with stable performance from machine manufacturers



Descriptions of CNC Synchro Press Brake:
Hydraulic system:
-A complete electrolyte servo synchro CNC (Computer Numerical Control) controlled press brake.
-Adopt Bosch electrolyte servo system (from Germany)
Mechanical system:

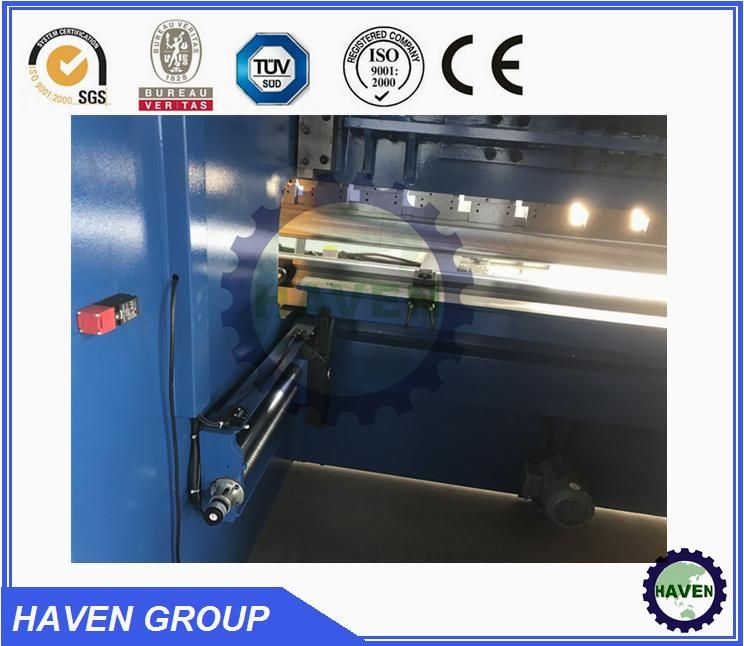

- Two light rulers are installed at the two ends of the slide, making the slide movement be parallel to the working table
- Adopt the working table compensation structure.
- The CNC servo motor of the back gauge gives a high positioning accuracy.
CNC system:
- The DA65W computer imported from Holand Delem Co.
- Automatically calculate the working time and quantities of press brake actions.
- For single step operation, the user only needs to input the relevant data into the system, and then the system will check out the pressure needed for press brake and get every thing in order.
- When making several steps press brake actions on the parts, the user just needs to input the intended dimensions into the system, and then the system can make continuous press brake actions according to the requirements.
- Can store 25 press brake procedures.
- Give alarm signals on incorrect operations
- Automatically control the following datum: Pressure discharge time, pressure keeping time, press brake pressure, press brake angle, the opening height of slide and etc.

Synchro control system:
-Two light rulers (Y1-Y2) have been installed at the two sides of the machine to measure the exact distances.
-The position data will be delivered to the CNC system and then it can check out the servo valve control signal (S2-S2).

Transmission system:

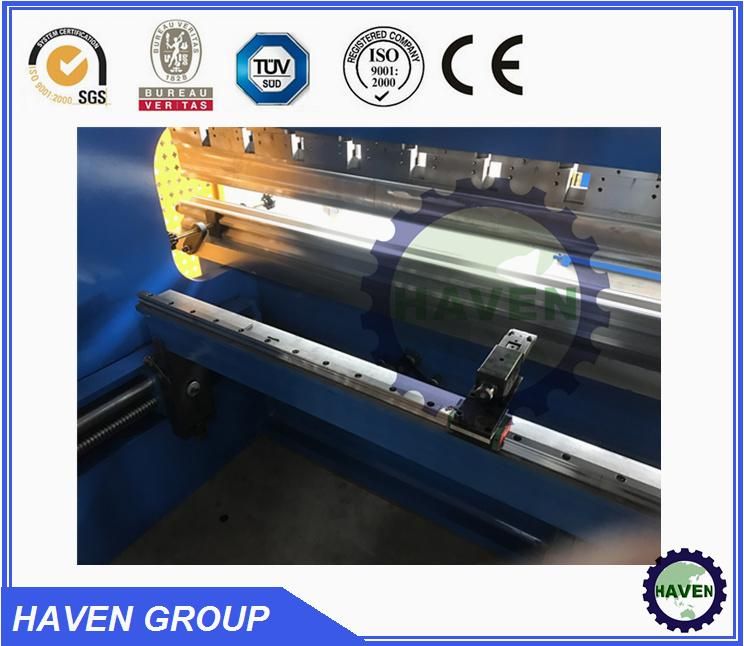

- High-precision ball screw and linear guide-way
- Panasonic HINAS A4 series; AC servo motor and drive;

Compensation System:
-WILA deflection compensation;
-Automatic worktable compensation for wear and tear of the bed
The deviation resistance ability of the machine tool:
-The electrolyte servo system of this forging machine is an inner closing ring control system, which can check out the synchro discrepancies of the slide by the movement of the light ruler.
-The electrolyte servo valve can correct the slide discrepancies, making the slide parallel to the working table.

Model No.	Normal Pressure (KN)	Length Of table(mm)	Distance Between Housing(mm)	Throat Depth (mm)	Stroke (mm)	Open Height(mm)	Motor Power(Kw)	Net Weight(Kg)	Size(LxWxH )(Cm)
WC67Y-63/2500	630	2500	2000	320	150	400	5.5	5000	286x165x235
WC67Y-63/3200	630	3200	2700	320	150	400	5.5	5500	380x165x245
WC67Y-80/2500	800	2500	2000	320	150	400	5.5	5500	286x165x235
WC67Y-80/3200	800	3200	2700	320	150	400	7.5	6500	380x165x245
WC67Y-100/3200	1000	3200	2700	400	180	460	7.5	7500	381x175x248
WC67Y-125/3200	1250	3200	2700	400	180	460	7.5	8200	382x180x250
WC67Y-125/4000	1250	4000	3200	400	180	460	7.5	9000	460x180x256
WC67Y-160/3200	1600	3200	2700	400	180	460	11	10800	383x203x256
WC67Y-160/4000	1600	4000	3200	400	180	460	11	11500	461x203x270
WC67Y-200/3200	2000	3200	2700	400	180	460	11	12500	390x205x256
WC67Y-200/4000	2000	4000	3200	400	180	480	11	13800	462x205x275
WC67Y-200/6000	2000	6000	4800	400	180	480	11	18500	605x230x320
WC67Y-250/3200	2500	3200	2700	400	200	480	15	15000	390x210x265
WC67Y-250/4000	2500	4000	3200	400	200	560	15	16000	462x210x280
WC67Y-250/5000	2500	5000	4000	400	250	560	15	18500	509x257x310
WC67Y-250/6000	2500	6000	4800	400	250	560	15	20000	608x257x330
WC67Y-300/4000	3000	4000	3200	400	250	560	22	19000	408x230x320
WC67Y-300/5000	3000	5000	4000	400	250	560	22	23000	510x240x360
WC67Y-300/6000	3000	6000	4800	400	250	630	22	27000	615x250x360
WC67Y-400/4000	4000	4000	3200	400	320	630	30	27000	410x275x360
WC67Y-400/5000	4000	5000	4000	400	320	630	30	32000	510x275x380
WC67Y-400/6000	4000	6000	4800	400	320	630	30	38000	615x275x400
WC67Y-500/4000	5000	4000	3200	400	320	630	37	40000	415x350x398
WC67Y-500/5000	5000	5000	4000	400	320	630	37	45000	515x360x470
WC67Y-500/6000	5000	6000	4800	400	320	630	37	45000	615x362x520
WC67Y-600/5000	6000	5000	4000	500	320	630	45	50000	515x380x520
WC67Y-600/6000	6000	6000	4800	500	320	630	45	68000	615x444x550
WC67Y-800/5000	8000	5000	4000	500	350	800	55	75000	516x450x530
WC67Y-800/6000	8000	6000	4800	500	350	800	55	85000	620x492x580
WC67Y-1000/6000	10000	6000	4800	500	400	800	55	10500	650x494x630
