• Model NO.：WE67K-300T4000mm
• Power Type：Hydraulic
• Power Supply：3pH,380V,50Hz;3pH,415V,50Hz; 3pH,220V,60Hz
• Control Axis：X Y +Angle Setting
• Bending Width：4000mm
• Bending Thickness：16mm
• Components：Simens, Atos , Rexroth, Yaskava
• Weight：22000kg
• Throat：400mm
• Dimensions：L 4090*W2035*H3110 mm
• Transport Package：Base by Channel Steel
• Specification：CE &ISO
• Trademark：ZDMT
• Origin：China
• HS Code：8462219000
• Production Capacity：100units,Per Month

Basic Info.

Model NO. WE67K-300T4000mm Power Type Hydraulic Power Supply 3pH/380V/50Hz;3pH/415V/50Hz; 3pH/220V/60Hz Control Axis X Y +Angle Setting Bending Width 4000mm Bending Thickness 16mm Components Simens/ Atos / Rexroth/ Yaskava Weight 22000kg Throat 400mm Dimensions L 4090*W2035*H3110 mm Transport Package Base by Channel Steel Specification CE &ISO Trademark ZDMT Origin China HS Code 8462219000 Production Capacity 100units/Per Month

Product Description

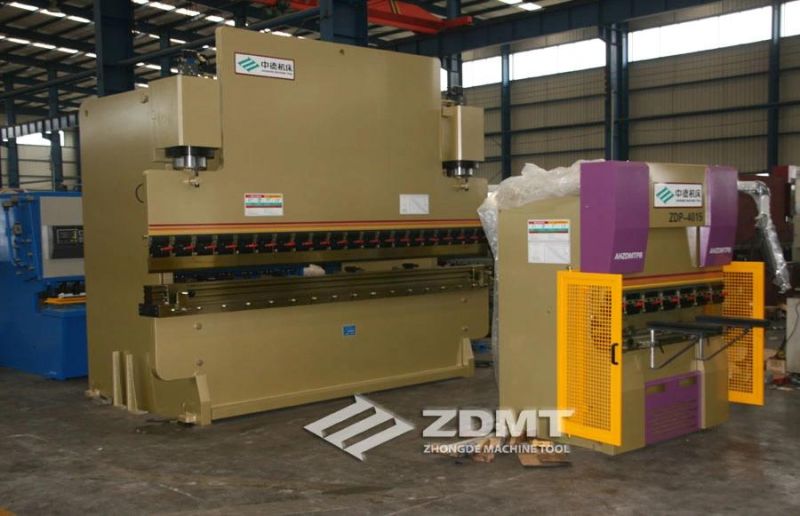

Description of ZDMT WC67K Series Press Brake



1. Mechanical stop and torsion bar to maintain synchronization and high precision.

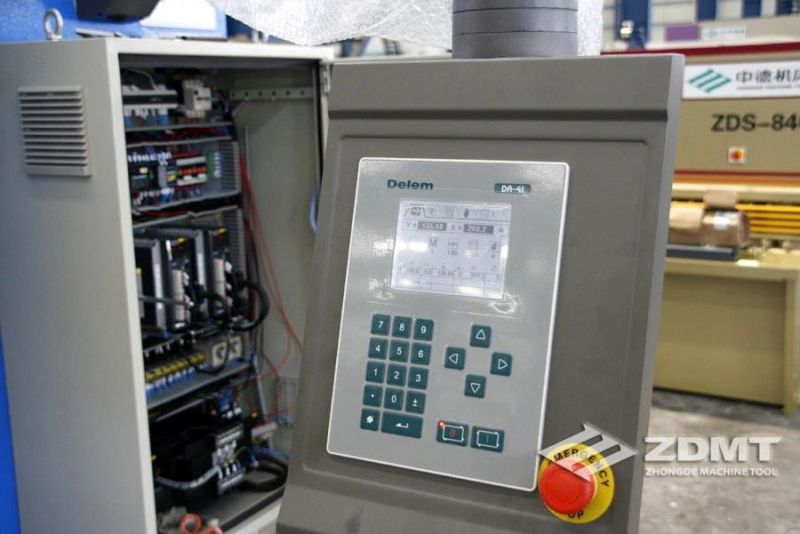

2. The machine uses Delem NC system, and imported linear transducer, pressure proportional valve and servo motor.

3. RAM stroke(Y) and backgauge(X, R, Z) are automatically controlled by computer.

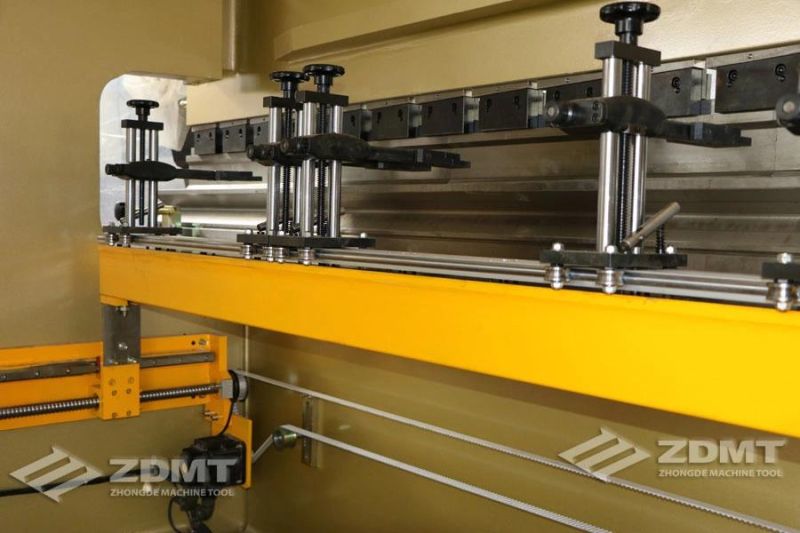

4. Backgauge adopts ball-bearing screw and rolling guide, enjoying very high repeat positioning accuracy.
