V Cut PCB Separator, SMD PCB Cutting Machine
Antel Electronics (Shanghai) Co., Ltd.- After-sales Service：1 Year
- Certification：CE
- Condition：New
- Warranty：1 Year
- Transport Package：Industrial Packing
- Specification：940*550*460mm
Base Info
- Model NO.：YC-600
- Trademark：Antel
- Origin：China
- HS Code：84798999
Description
Basic Info.
Model NO. YC-600 Trademark Antel Origin China HS Code 84798999Product Description
| Model | YC-600 |
| Max. PCB cutting length | 600 mm |
| PCB cutting thickness | 0.5-3.2 mm |
| PCB cutting speed | 300,500 mm/sec |

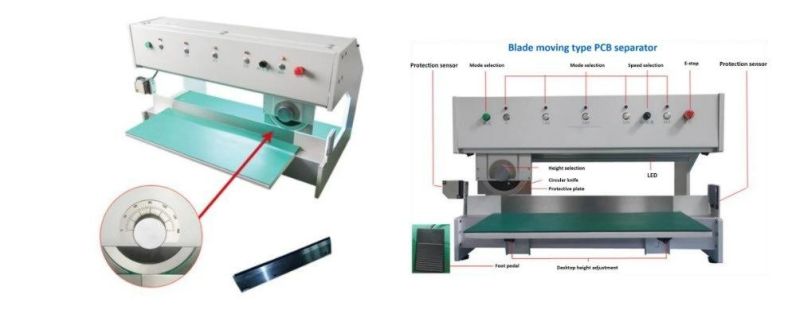

| Blade motion | upper circular blade moving automatically |
| Blade motive power operating mode | motor-driven |
| Power supply | 110/220v |
| PCB cutting machine size | 940*550*460mm |
| PCB cutting machine weight | 60kg |
PCB cutting machine features:
1. Adjustable separating speed: 500mm/s or 300mm/s.
2. Minimum Cutting length:600mm.
3. Upper circular blade can be adjustable 0-2mm.
4. Operation platform is adjustable 0-50mm.
5. Cutting thickness: 0.5-3.2mm, V-cut thickness: 0.2-2.0mm.
6. The machine cut PCB boards without damaging electronic components. And it can improve efficiency.
7. With blade moving, it can reduce pressure on board to avoid solder joint crack and parts fracture.
8. Upper circular blade cuts against lower linear blade to separate PCB board, smooth and clear cuts.
9. Set fixed start and end point for blade moving according to the length of PCB.
10. According to the width of PCB, the back baffle can be adjustable from 0 to 150mm.
11. The blades are sharp and indurable. And they can be sharpened between 7 and 10 times.
