CNC Full Automatic Pipe Bender
Zhangjiagang King-Macc Machinery Manufacturing Co., Ltd.- Waterproof Rating：IPX-8
- Warranty：2-year
- Condition：New
- Certification：ISO 9001:2000, CE, UL
- Automation：Automatic
- Suitable for：Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Base Info
- Model NO.：GM-SB-76CNC
- Type：Pipe and Tube Bending Machine
- Certificate：ISO9001: 2000
- Applicable Material：S. S., M. S., Copper, Aluminium, Alloy, Galvanized
- Applicable Shape：Round, Rectangle, Square, Oval, Solid Bar, Profile
- Transport Package：Iron Frame,Wooden Case
- Specification：CE
- Trademark：GMACC
- Origin：China
- HS Code：8462219000
- Production Capacity：5000PCS,Year
Description
Basic Info.
Model NO. GM-SB-76CNC Type Pipe and Tube Bending Machine Certificate ISO9001: 2000 Applicable Material S. S., M. S., Copper, Aluminium, Alloy, Galvanized Applicable Shape Round, Rectangle, Square, Oval, Solid Bar, Profile Transport Package Iron Frame/Wooden Case Specification CE Trademark GMACC Origin China HS Code 8462219000 Production Capacity 5000PCS/YearProduct Description

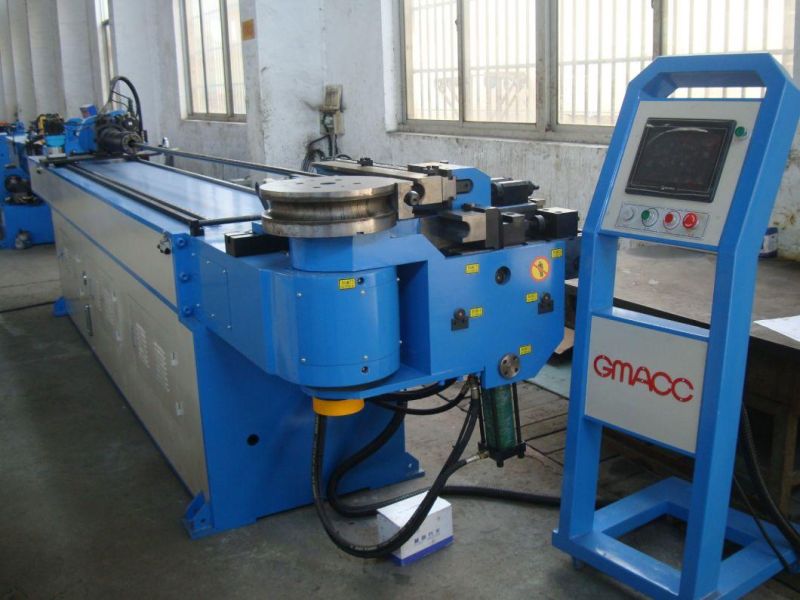

GM-SB-76CNC Full-Auto Numerical ControlSingle-Head Bending Machine
Model:76×2A×1S
Machine Characteristics
GM-SB-76CNC Series numerical control single-head pipe bending machine is the product from the combination with our technology and advanced Italian technology, integrated with machine, hydraulic, and electricity. This series adopt VDU touch screen operating panel, which can input, store, and display various bending data and order. Y, B, C three coordinates of motions under precision control by industrial computer can realize full-auto mandrel on or mandrel off rapid bending, CNC machine also with advanced functions, such as components bending spring back compensation, errors self diagnose alarm, memory store after power off, automatic lubrication and safety protection. Pipe rotating (B axis), and pipe feeding(Y axis) are both driven by servo motor. Pipe bending(C axis) is hydraulic by cylinder.
Main Technical Parameter
| Name | Unit | Parameter |
| Max. Bending Capacity | mm | 76*5 |
| Bending Radius Range | mm | 30-350 |
| Max. Bending Angle | ° | 190 |
| Bending Speed | ° /sec | 30 |
| Turning Speed | ° /sec | 160 |
| Feeding Speed | mm/sec | 800 |
| Bending Precision | ° | ± 0.10 |
| Turning Precision | ° | ± 0.10 |
| Feeding Precision | mm | ± 0.10 |
| Turning Servomotor Power | kW | 1 |
| Feeding Servomotor Power | kW | 1.5 |
| Though Effective Distance | mm | 2600 |
| System Motor Power | kW | 7.5 |
| Max. Pressure | Mpa | 16 |
| Oil Pump Delivery Volume | L | 25 |
| L*W*H (Packaging Dimension) | mm | 5000*1200*1350 |
| Weight | T | 3.5 |
