• Model NO.：GM-SB-89CNC-2A-1S
• Type：Pipe and Tube Bending Machine
• Certificate：ISO9001: 2000
• Applicable Material：Ss, Ms, Copper, Aluminium, Alloy, Galvanized
• Applicable Shape：Round, Rectangle, Square, Oval, Solid Bar, Profile
• Company Type：Sino-Italian Joint
• Transport Package：Iron Frame,Wooden Case
• Specification：CE
• Trademark：GMACC
• Origin：China
• HS Code：8462219000
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. GM-SB-89CNC-2A-1S Type Pipe and Tube Bending Machine Certificate ISO9001: 2000 Applicable Material Ss, Ms, Copper, Aluminium, Alloy, Galvanized Applicable Shape Round, Rectangle, Square, Oval, Solid Bar, Profile Company Type Sino-Italian Joint Transport Package Iron Frame/Wooden Case Specification CE Trademark GMACC Origin China HS Code 8462219000 Production Capacity 5000PCS/Year

Product Description

The series was adapted in particular to professional world market requirements. All the parts, structure and characters are similar to the standard of mechanical engineering from Europe. Our professional experience and drawings plans for Electric, Electronic, Hydraulic and mechanical from known companies bring to upgrading of the machines' systems to accurate and attractive performance.

SB-SB-CNC Series numerical control single-head pipe bending machine is the product from the combination with our technology and advanced Italian technology, integrated with machine, hydraulic, and electricity. This series adopt VDU touch screen operating panel, which can input, store, and display various bending data and order. Y, B, C three coordinates of motion under precision control by industrial computer can realize full-auto mandrel on or mandrel off rapid bending, CNC machine also with advanced functions, such as components bending spring back compensation, errors self diagnose alarm, memory store after power off, automatic lubrication and safety protection. Pipe bending(C axis), pipe rotating(B axis), and pipe feeding(Y axis) are all drove by closed ring servomotor. Advanced technology, high automation reliability, integrated design all make CNC pipe bending machine the first class pipe processing machine in the world.

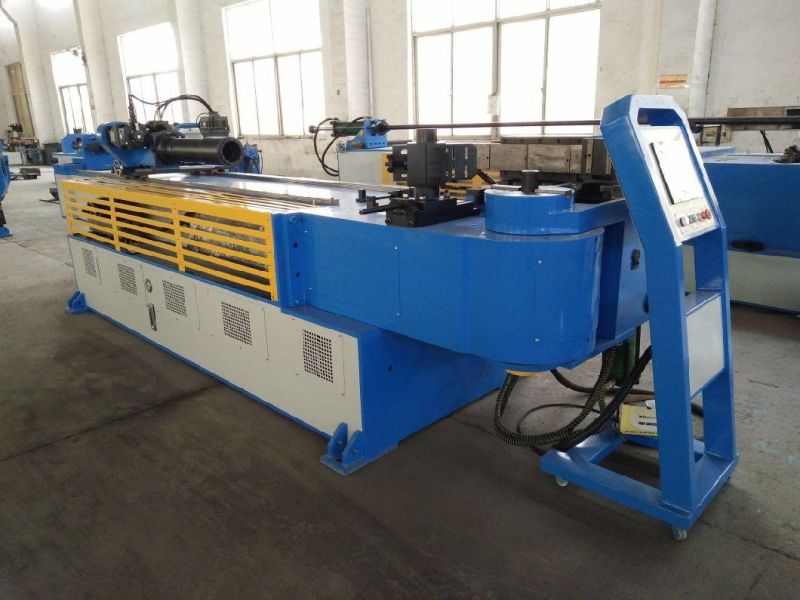

GM-SB-CNC Full-Auto Numerical Control Single-Head Bending Machine
Features:

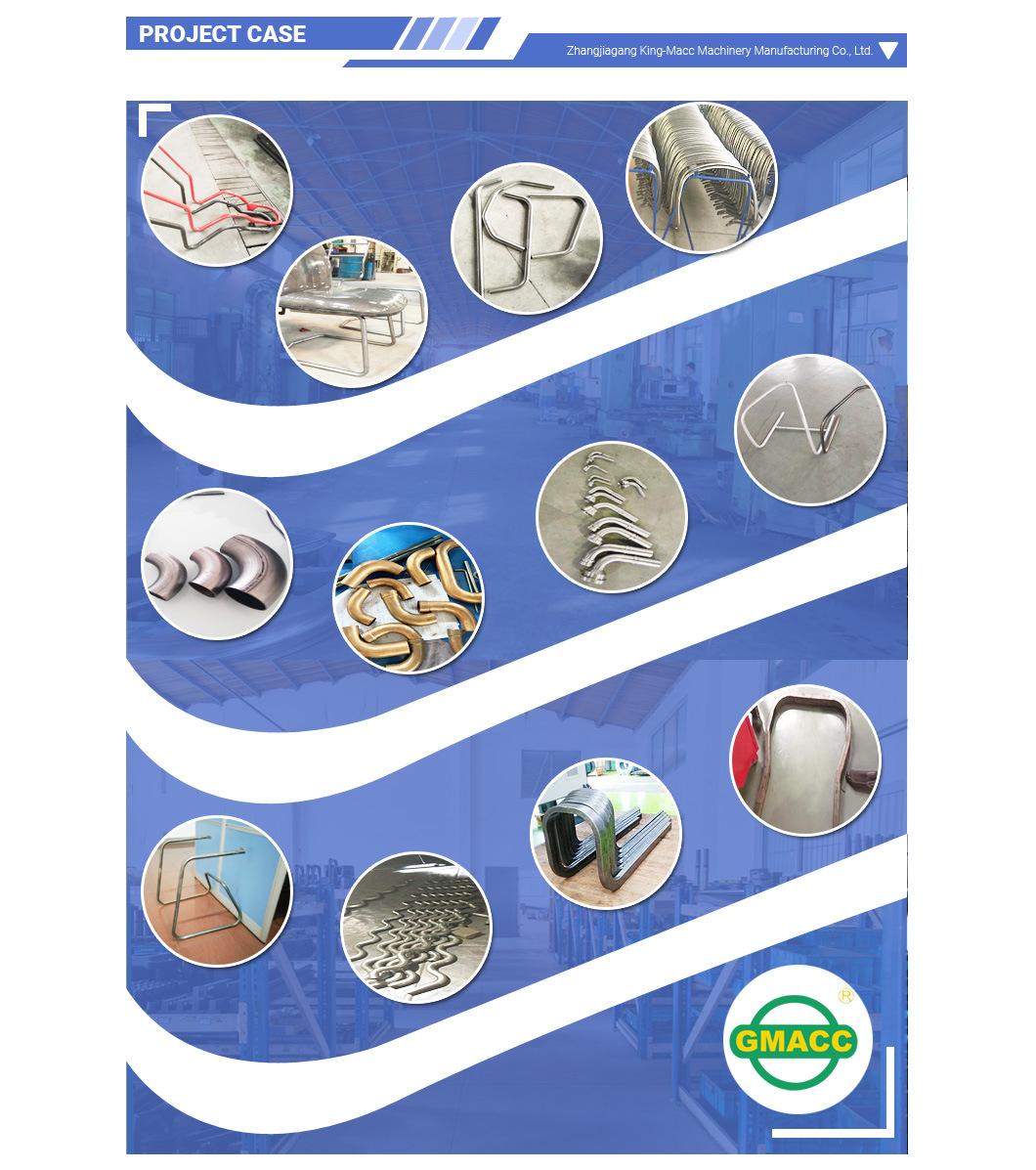

1. Applicable tube material: Carbons steel, mild steel, soft steel, stainless steel, aluminum, alloy, copper, brass etc.
2. Applicable tube shape: Tube, solid bar, square, rectangle, oval, profile etc.
3. Controlled through PLC and possesses manual, semi-automatic and full-automatic functions.
4. Y, B, C three coordinates of motion under precision control by industrial computer realizing full-auto mandrel on or mandrel off rapid bending.
5. Equipped with hydraulic-operated clamping tube, encoder-controlled bending angle with precision more or less 0.1 degree.

6. About 200 programs can be inputted into PLC, then show on dialogue-style operation touch screen, easy to learn and understand.
7. Various Touch screen language are available for choice as per request.
8. Adoption of hydraulic valve and oil way board can control actions individually to prolong the lifespan of hydraulic parts.
9. Guiding module has auxiliary pushing function and at the same time it possesses Reiteration and entering repeat functions that can make the guiding module length shorten.
10. Counter function can accurately count work piece's quantity and save data whether in power-on or power-off situation.

11. Auto lubrication system to protect components and improve the working life Of machine.
12. Possess automatic error detection function and limit protecting function, Removing or changing faults easily and quickly.
13. Moveable foot switch with function of auto-start, pause and emergent-shop, safe and convenient.
14. Optional function of core reversing slowly.
15. Optional function of slow bending.
16. Optional function of anticipated mandrel extraction.

Technical  Parameter	Model  Unit	89CNC
Mild  steel  round  tube	mm	89*6
Stainless  Steel	mm	89*2.5
Light  alloy  annealed  round  tube	mm	89*10
Mild  steel  square  tube	mm	70*70*3
Mild  steel  rectangular  tube	mm	75*65*3
Mild  steel  round  solid  bar	mm	40
Mild  steel  square  solid  bar	mm	30*30
Calendering  tube  max  Ø   (mild  steel)	mm	60*2
Min.     bending  radius	mm	40
Max.   CLR  with  standard  arms	mm	400
Max.   CLR  with  special  extended  arms	mm	600
Max.   useful  lenght  over  mandrel	mm	3200
Head  overhang  (on  bending  centre)	mm	460
Head  heigth  (on  bending  centre)	mm	610
Bending  centre  heigth    from  floor	mm	1140
Max.   bending  angle	°	190
Max.   bar  passage  inside  the  P. O. B.   positionner	mm	70
Clamping  adjustable  stroke	mm	0-140
Shouldering  adjustable  stroke	mm	0-350
Mandrel  retraction  adjustable  stroke	mm	0-150
Max.   bending  speed  (axis  Y)	° /sec	25
Max.   shifting  speed  (axis  X. )	mm/sec	500
Max.   rotation  speed  (axis  Z)	° /sec	160
Bending  angle  repeatability  -  axis  Y	°	± 0.10
Shifting  quote  repeatability  -  axis  X	mm	± 0.10
Rotation  angle  repeatability  -  axis  Z	°	± 0.10
Max.   productivity  (90°   bends)	Bend/h	300
Max.   absorbed  electrical  power	kW	13.5
Hydraulic  oil  tank  capacity	L	300
Machine  L	mm	5500
Machine  W	mm	1350
Machine  H	mm	1200
Control  unit  overall  dimensions	mm	600*470*1300
Net  weight  (machine  +  control  unit)	T	5.0
Noise  (leq.   A)	dB	65
