Cutting & Fold-bend Machine

125t Hydraulic Press Brake, Metal Bending Machine

Shaanxi HAVEN Equipment Co., Ltd.
  • Warranty:1-year
  • Condition:New
  • Automation:Semi-Automatic
  • Suitable for:Rubber, Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
  • Type:Press Brake
  • E200 CNC:Servo Motor

Base Info

  • Model NO.:WC67K-125X3200
  • Application:Machinery & Hardware
  • Type for Fold-bending Machine:CNC Fold-bend Machine
  • Transport Package:Steel Pallet
  • Specification:125t, 3200mm
  • Trademark:HAVEN
  • Origin:China
  • HS Code:8469
  • Production Capacity:50 Units,Month

Description

Basic Info.

Model NO. WC67K-125X3200 Application Machinery & Hardware Type for Fold-bending Machine CNC Fold-bend Machine Transport Package Steel Pallet Specification 125t, 3200mm Trademark HAVEN Origin China HS Code 8469 Production Capacity 50 Units/Month

Product Description

125t Hydraulic Press Brake, Metal Bending Machine
125t Hydraulic Press Brake, Metal Bending Machine
125t Hydraulic Press Brake, Metal Bending Machine
125t Hydraulic Press Brake, Metal Bending Machine
Standard Facilities:
 1. ESTUN E21 NC control + Frequency inverter

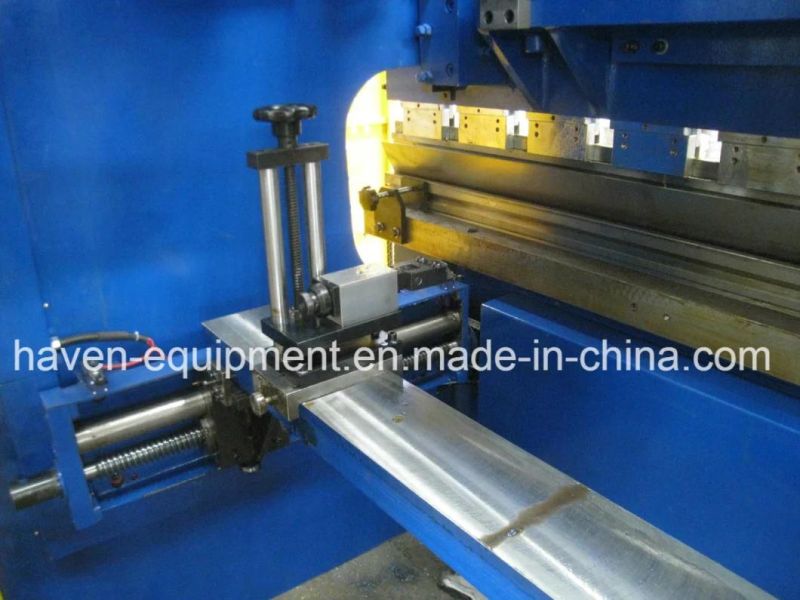

 2.Front support arms
3. Motorized stroke adjustment
4. T slot on both front side and back side of the worktable
5.  OMAGE Hydraulic valve
6.  SUNNY hydraulic pump
7.  Siemens famous brand motor
8.  Siemens or Schneider Electric parts
9.  Machine power is turn-off when the electric cabinet door opened
10. Upper clamps with Anti Wedges
11. Hydraulic and Electrical overload protection

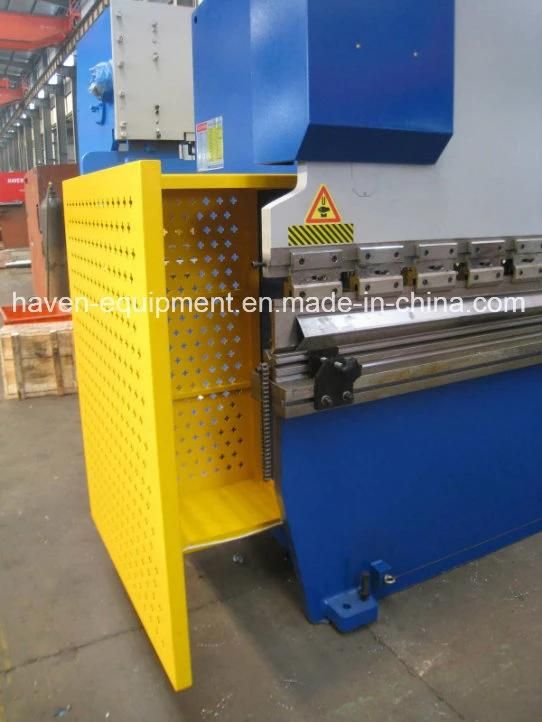

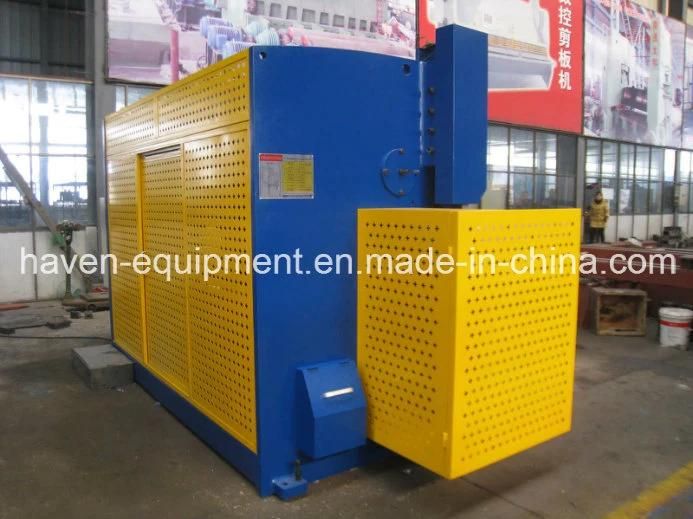

12. Side safety guard and Full height back safety guard
13. With standard Top punch and Bottom Die
14. Back gauge beam is made of profile steel and liner guide
15. Back gauge is supported with ball screw and polished steel round bar with 0,05mm accuracy
2. Estun E21 NC Press Brake Control system:
1. Monochrome LCD Box Panel.
2. Integral factor programmable freely
3. Automatic positioning control
5.Internal time relay
6.Ram stroke counter
3. Our Services
1: Response in time after getting customer's claim
1: Provide solution in 1 day
2: Usually solve problem within 2 days
2. For big machine, Installation Service is available as per customer's requirement
4. Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.
5. Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.
We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments.
6. Main features
1. The whole machine is in sheet plate welded structure, which internal stress eliminated by vibration aging technology, high strength and good rigidity of machine.
2. Double hydraulic oil cylinder is applied for upper transmission, provided with mechanical limit stopper and synchronous torsion bar, stable and reliable operation, as well as high precision.
3. Electrical adjustment and manual fine-tuning adjustment mode are adopted for distance of rear stopper and stroke of gliding block, and fitted with digital display device, easy and quick in use.
4. Upper clamp is fitted with compensation device.
5. Worktable mechanical compensation or hydraulic compensation device is optional.
ModelNominal Pressure (kN)Length of table (mm)Distance Between Housing (mm)Throat Depth (mm)Stroke (mm)Open Hight (mm)Main Motor (kW)Dimensions
(L x W x H) (mm)
weight (t)
40/20004002000160020011033542545x1510x20503
40/25004002500200020011033542950x1510x20803.5
63/2000630200016002501103505.52555x1600x21303.8
63/2500630250020002501103505.52960x1600x21804.2
63/3200630320026002501103505.53740x1600x22305.2
100/25001000250020003501504007.52980x1650x23306.3
100/32001000320026003501504007.53740x1650x23557
100/40001000400032003501504007.54550x1650x24508.8
100/50001000500040003501504007.55100x1500x265011.8
125/25001250250020003501504107.53980x1650x23707.5
125/32001250320026003501504107.53750x1650x24508.2
125/40001250400032003501504107.54550x1650x24709
125/50001250500040003501504107.55100x1500x279511.5
125/60001250600045003501504107.56100x1500x289514
160/2500160025002000350150425112980x1715x24108.5
160/3200160032002550350150425113750x1715x245011
160/4000160040003200350190450114550x1715x273012
160/5000160050004000350190450115100x1570x290015.5
160/6000160060004500350190450116100x1570x301019
200/3200200032002600350240460113750x1815x271513
200/4000200040003200350240460114550x1815x285014
200/5000200050003800350240460115100x1715x302018.5
200/6000200060004500350240460116100x1715x312021
250/3200250032002600400240525113750x2010x285015.5
250/4000250040003200400240525114550x2010x301017
250/5000250050003800400240525115100x1890x319021.5
250/6000250060004500400240525116100x1890x335028
300/3200300032002600400250545153740x2100x323519.5
300/4000300040003200400250545154340x2100x330022
300/5000300050003800400250545155100x2100x343026
300/6000300060004500400250545156100x2100x349029
